Installation Procedure

WARNING: This page is about a different car, the 2003 Chevrolet Corvette. However, it is still accessible from the selected car via links, so may be relevant.
  1. Snap the strut onto the lower ball stud.
  2. Snap the strut onto the upper ball stud.
  3. Close the lid.

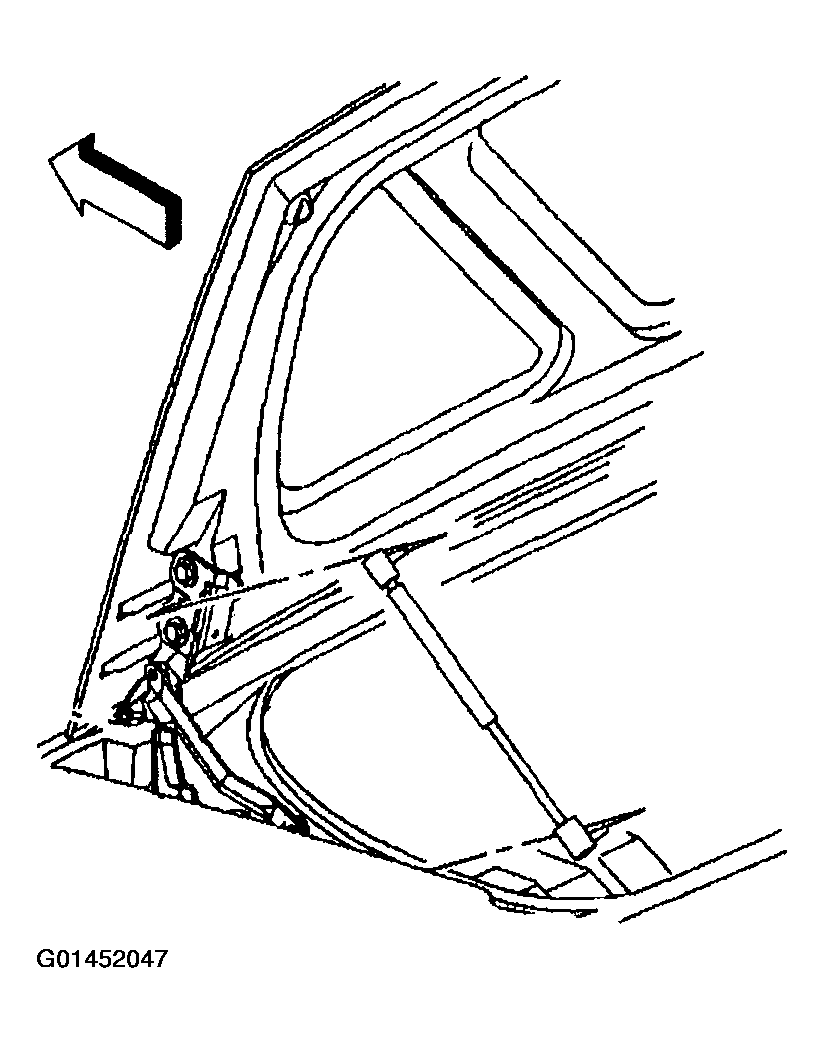

    Fig 1: Rear Compartment Lid Strut
    G01452047Courtesy of GENERAL MOTORS CORP.
