Removal Procedure

WARNING: This page is about a different car, the 2003 Chevrolet Corvette. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the door window weatherstrip.

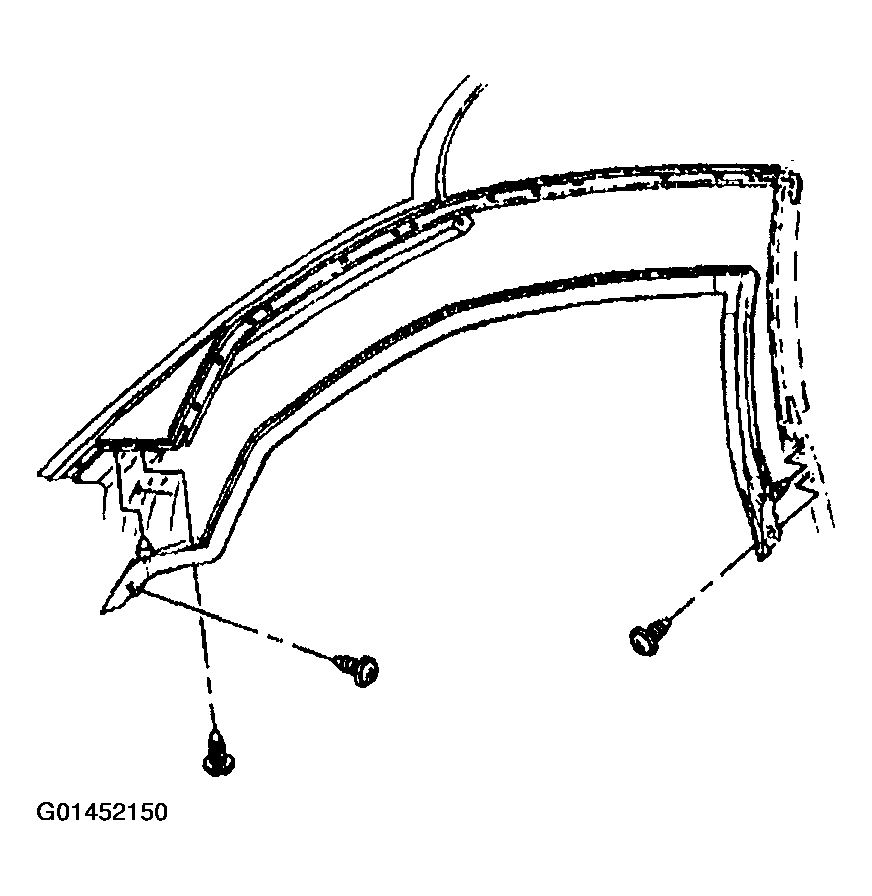

    Fig 1: Door Window Weatherstrip
    G01452150Courtesy of GENERAL MOTORS CORP.
  2. Remove the door window weatherstrip retainer.

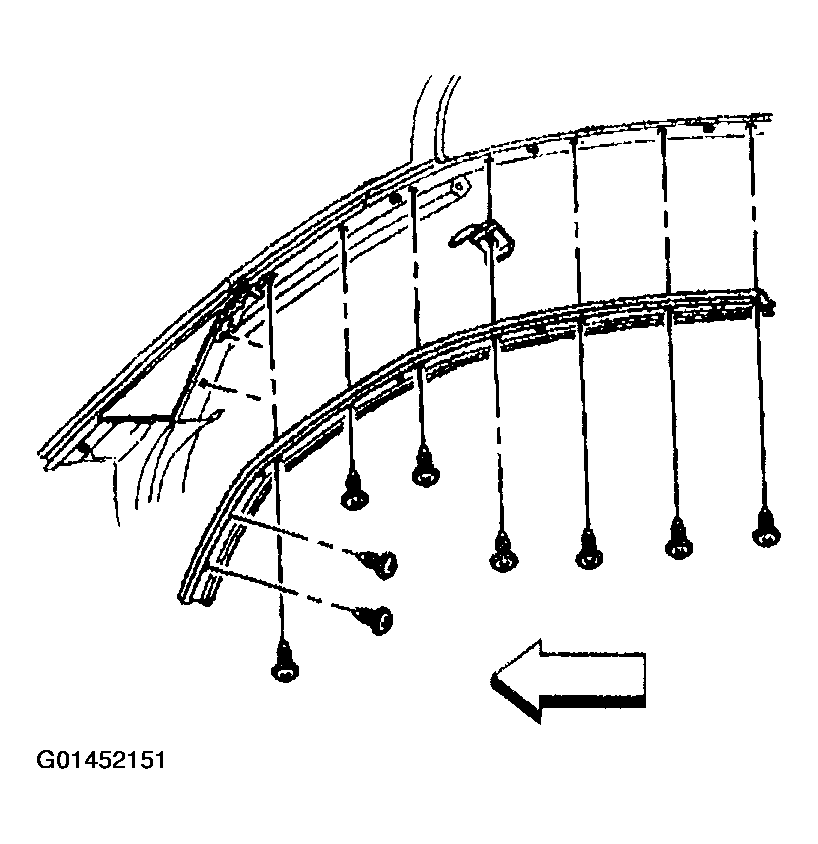

    Fig 2: Door Window Weatherstrip Retainer
    G01452151Courtesy of GENERAL MOTORS CORP.
  3. Remove the lock pillar weatherstrip retainer screws (1).
  4. Remove the lock pillar weatherstrip retainer.
  5. Remove the lock pillar upper reveal molding (2).
  6. Clean the mounting surfaces.

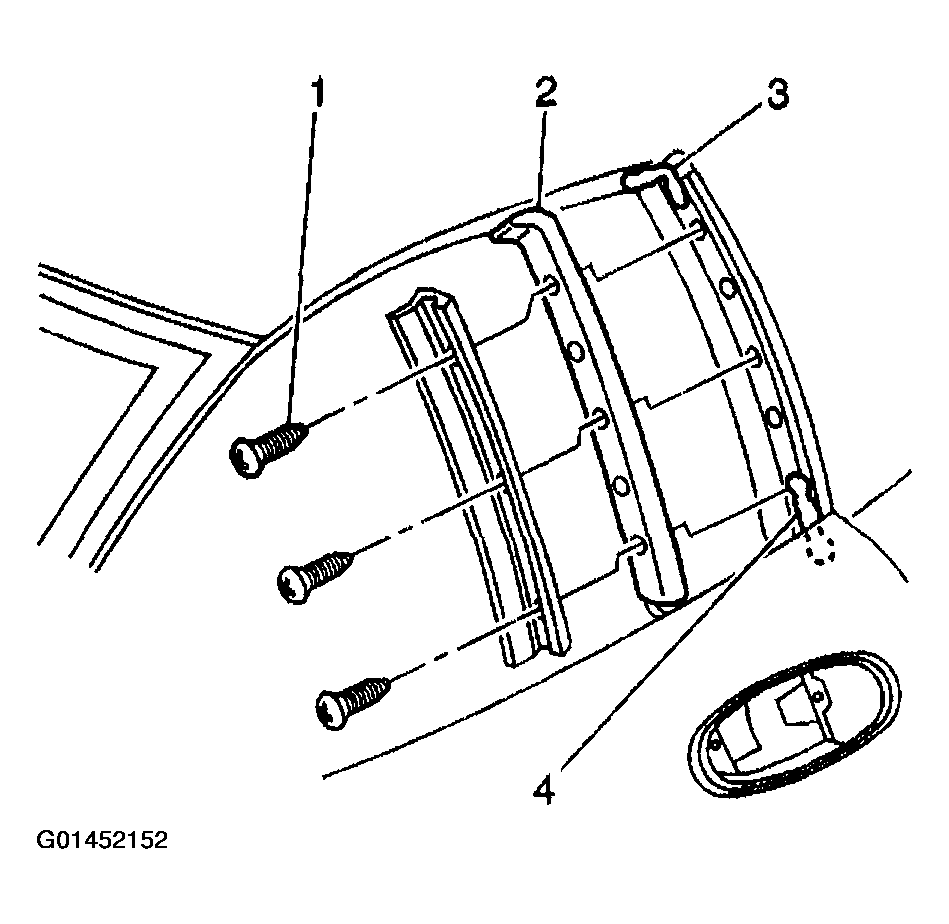

    Fig 3: Lock Pillar Upper Reveal Molding
    G01452152Courtesy of GENERAL MOTORS CORP.
