Removal Procedure

WARNING: This page is about a different car, the 2003 Chevrolet Corvette. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the console. Refer to CONSOLE REPLACEMENT in Instrument Panel, Gauges and Console.
  2. Disconnect the electrical connector from the rear compartment lid release switch.
  3. Using a small flat bladed tool, release the switch retaining tabs from the underside of the console.
  4. Remove the switch from the console.

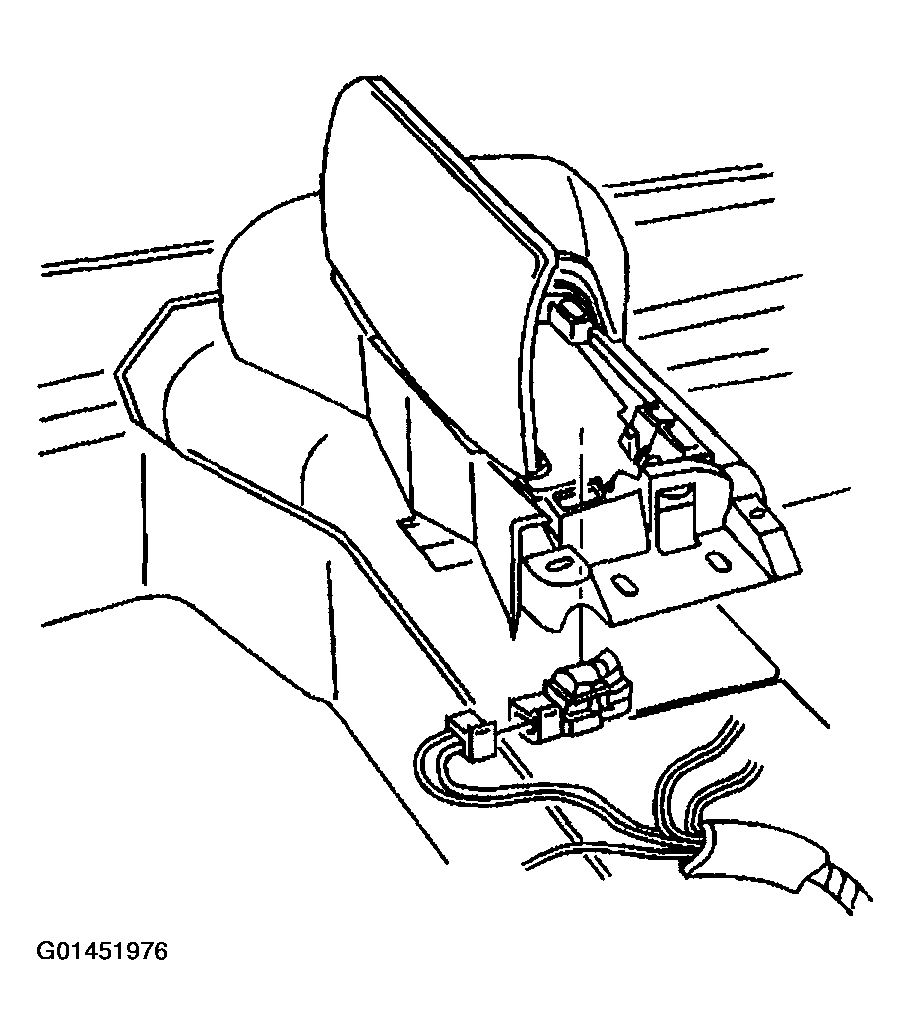

    Fig 1: Rear Compartment Lid Switch
    G01451976Courtesy of GENERAL MOTORS CORP.
