Installation Procedure

WARNING: This page is about a different car, the 2003 Chevrolet Corvette. However, it is still accessible from the selected car via links, so may be relevant.
  1. Position the rear compartment lid release switch to the underside of the console.
  2. Push the switch to secure the switch retaining tabs.
  3. Connect the electrical connector to the switch.
  4. Install the console. Refer to CONSOLE REPLACEMENT in Instrument Panel, Gauges and Console.

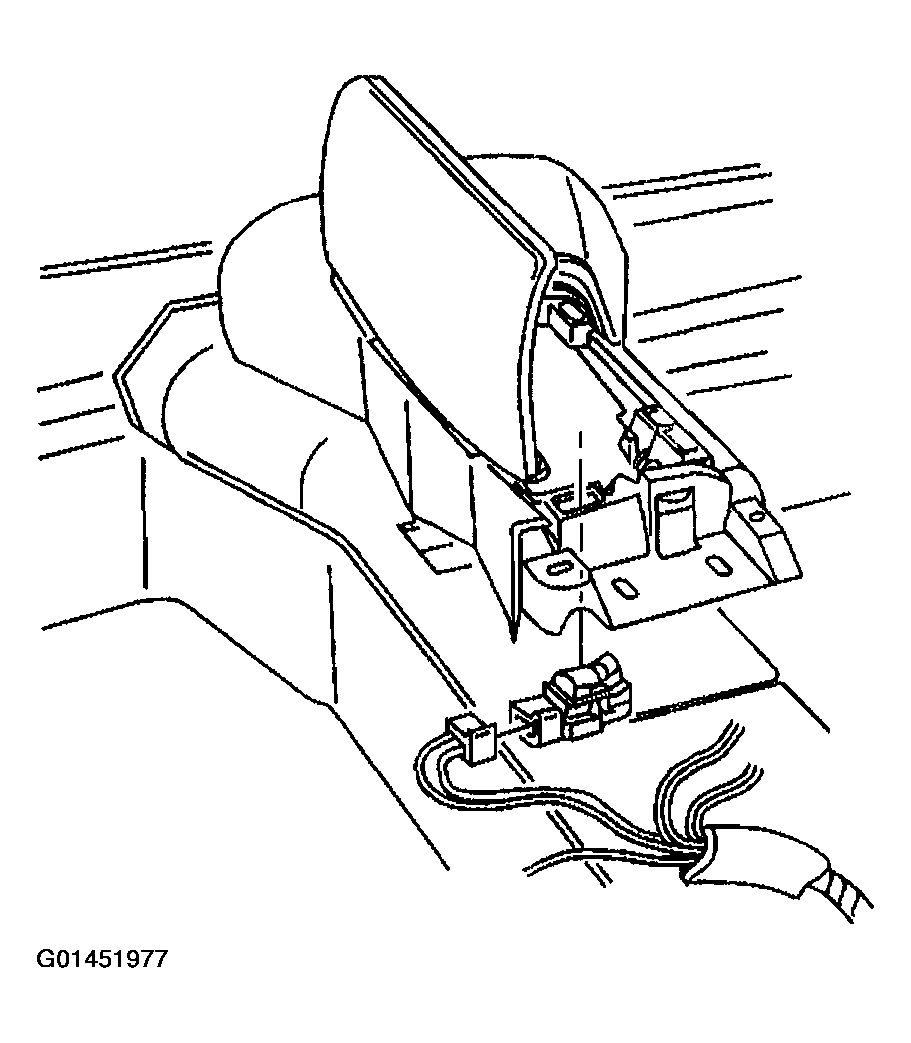

    Fig 1: Rear Compartment Lid Switch
    G01451977Courtesy of GENERAL MOTORS CORP.
