Installation Procedure

WARNING: This page is about a different car, the 2003 Chevrolet Corvette. However, it is still accessible from the selected car via links, so may be relevant.
  1. Position the valve to the opening with the cloth flaps hanging down.
  2. Snap the valve to the rear panel.

    Push firmly at each of the four snap locations.

  3. Install the rear corner carpet panel.

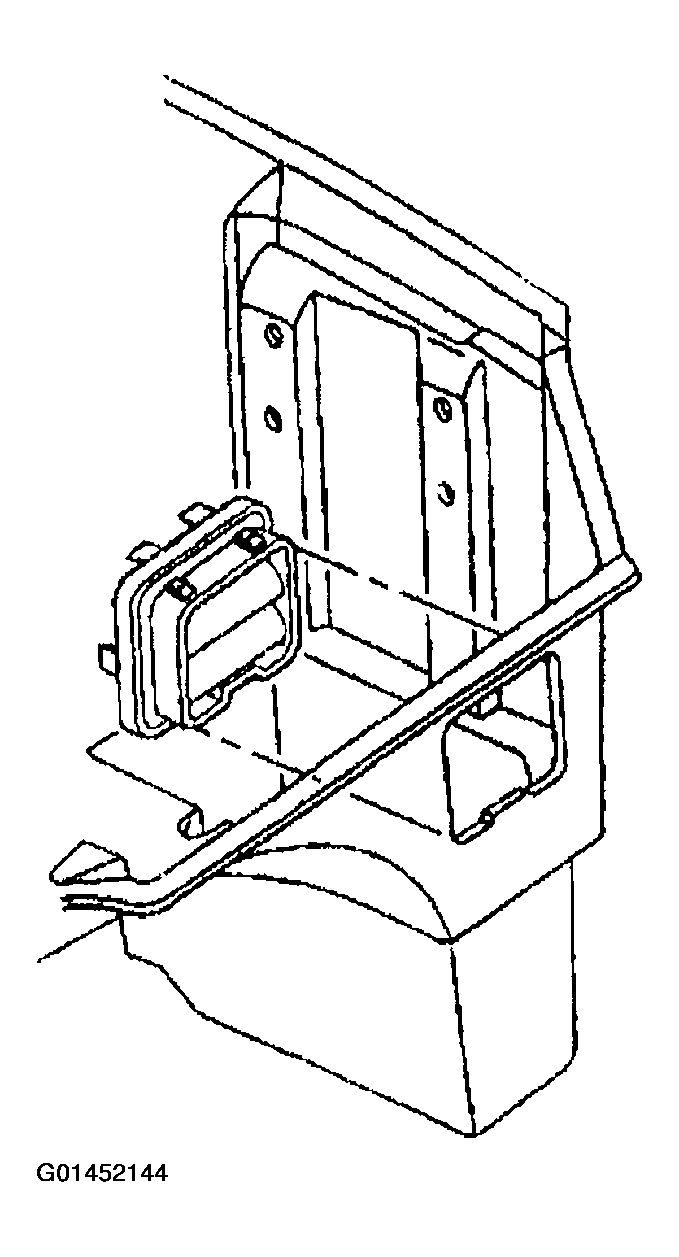

    Fig 1: Pressure Relief Valve
    G01452144Courtesy of GENERAL MOTORS CORP.
