Removal Procedure

WARNING: This page is about a different car, the 2003 Chevrolet Corvette. However, it is still accessible from the selected car via links, so may be relevant.
  1. Mark the location of the striker as an aid in installation.
  2. Remove the bolts attaching the striker to the lid.
  3. Remove the striker.

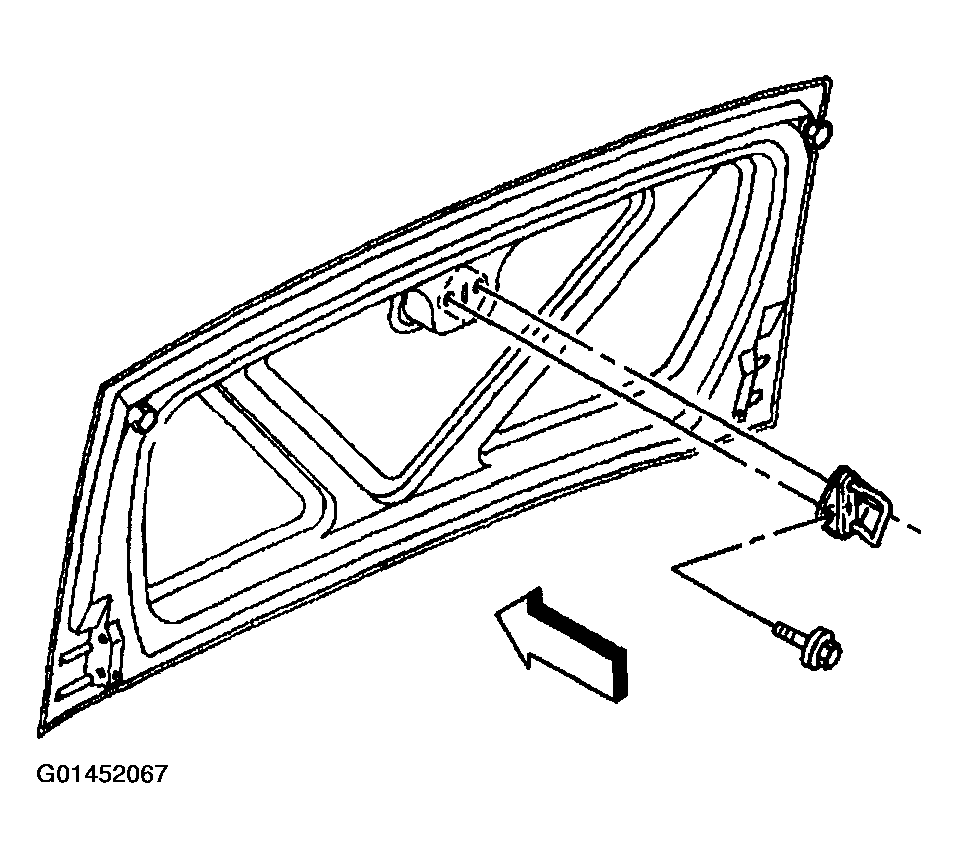

    Fig 1: Removing Bolts Attaching Striker To Lid
    G01452067Courtesy of GENERAL MOTORS CORP.
