Installation Procedure

WARNING: This page is about a different car, the 2003 Chevrolet Corvette. However, it is still accessible from the selected car via links, so may be relevant.
  1. Position the striker to the lid with the arrow pointed down.
  2. Install the left side bolt first. (net locating hole).
    NOTE: Refer to FASTENER NOTICE in Cautions and Notices.
  3. Install the right side bolt.

    Tighten

    Tighten the rear compartment lid latch striker bolts to 10 N.m (89 lb in).

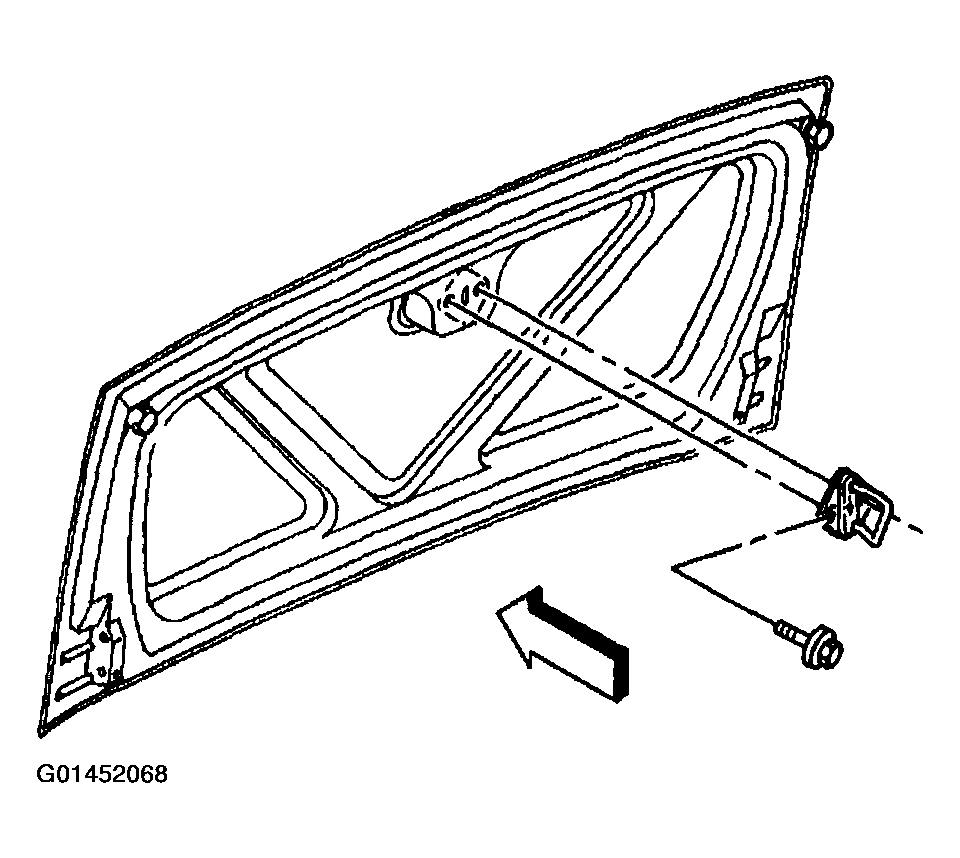

    Fig 1: Installing Bolts Attaching Striker To Lid
    G01452068Courtesy of GENERAL MOTORS CORP.
