Installation Procedure

WARNING: This page is about a different car, the 2003 Chevrolet Corvette. However, it is still accessible from the selected car via links, so may be relevant.
  1. Position the latch to the latch bracket.
    NOTE: Refer to FASTENER NOTICE in Cautions and Notices.
  2. Install the bolts attaching the latch.

    Tighten

    Tighten the latch mounting bolts to 10 N.m (89 lb in).

  3. Connect the electrical harness to the latch.
    Fig 1: Removing Bolts Attaching Latch
    G01452058Courtesy of GENERAL MOTORS CORP.
  4. Install the cargo lamp to the trim panel.
    Fig 2: Installing Cargo Lamp To Trim Panel
    G01452059Courtesy of GENERAL MOTORS CORP.
  5. Install the rear/end corner carpet trim panel. Refer to TRIM PANEL CARPET REPLACEMENT - REAR CORNER (COUPE) or TRIM PANEL CARPET REPLACEMENT - REAR CORNER (CONVERTIBLE) or TRIM PANEL CARPET REPLACEMENT - REAR CORNER (HARDTOP) in Interior Trim.
  6. Install the rear floor side stowage compartment cover.

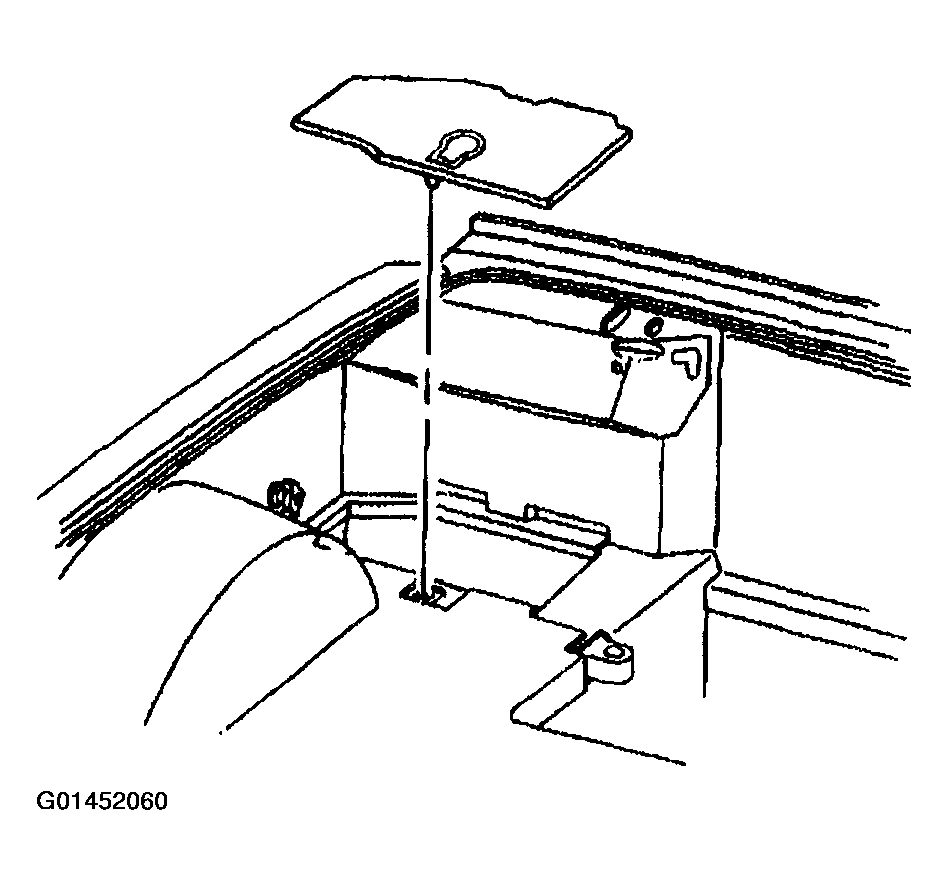

    Fig 3: Rear Floor Side Stowage Compartment Cover
    G01452060Courtesy of GENERAL MOTORS CORP.
