Installation Procedure

WARNING: This page is about a different car, the 2003 Chevrolet Corvette. However, it is still accessible from the selected car via links, so may be relevant.
  1. Position the latch with bracket to the rear body panel.
    NOTE: Refer to FASTENER NOTICE in Cautions and Notices.
  2. Install the nuts attaching the latch bracket.

    Tighten

    Tighten the latch bracket mounting nuts to 10 N.m (89 lb in).

  3. Connect the electrical harness.

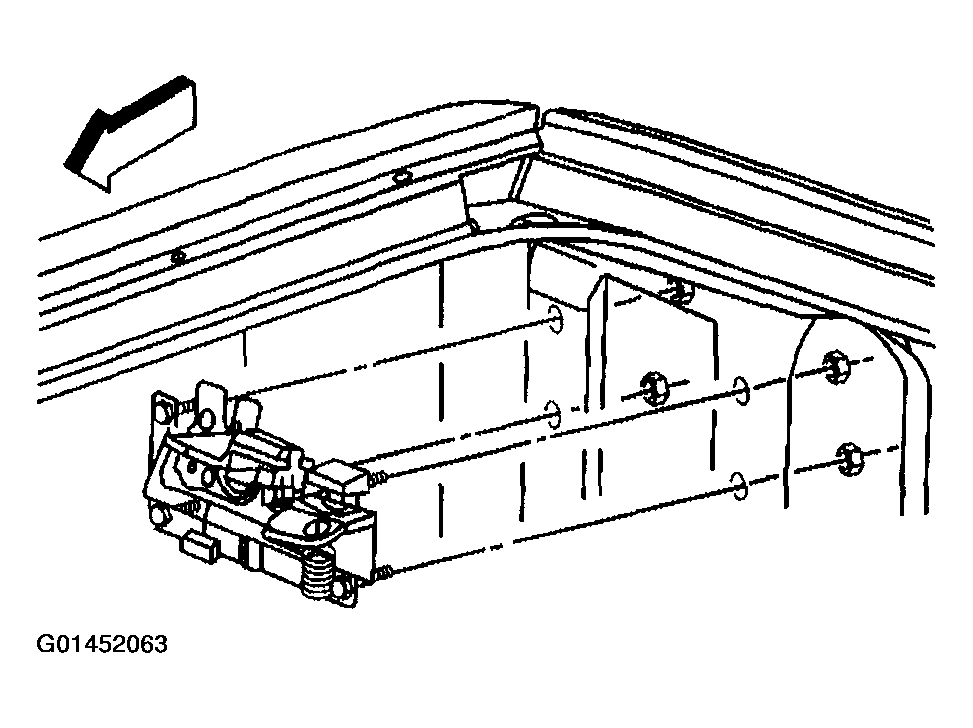

    Fig 1: Positioning Latch With Bracket To Rear Body Panel
    G01452063Courtesy of GENERAL MOTORS CORP.
  4. Install the rear/end corner carpet trim panel. Refer to TRIM PANEL CARPET REPLACEMENT - REAR CORNER (COUPE) or TRIM PANEL CARPET REPLACEMENT - REAR CORNER (CONVERTIBLE) or TRIM PANEL CARPET REPLACEMENT - REAR CORNER (HARDTOP) in Interior Trim.
  5. Install the rear floor side stowage compartment cover.
  6. Install the taillamps.

    Tighten

    Tighten the taillamp mounting screws to 2 N.m (18 lb in).

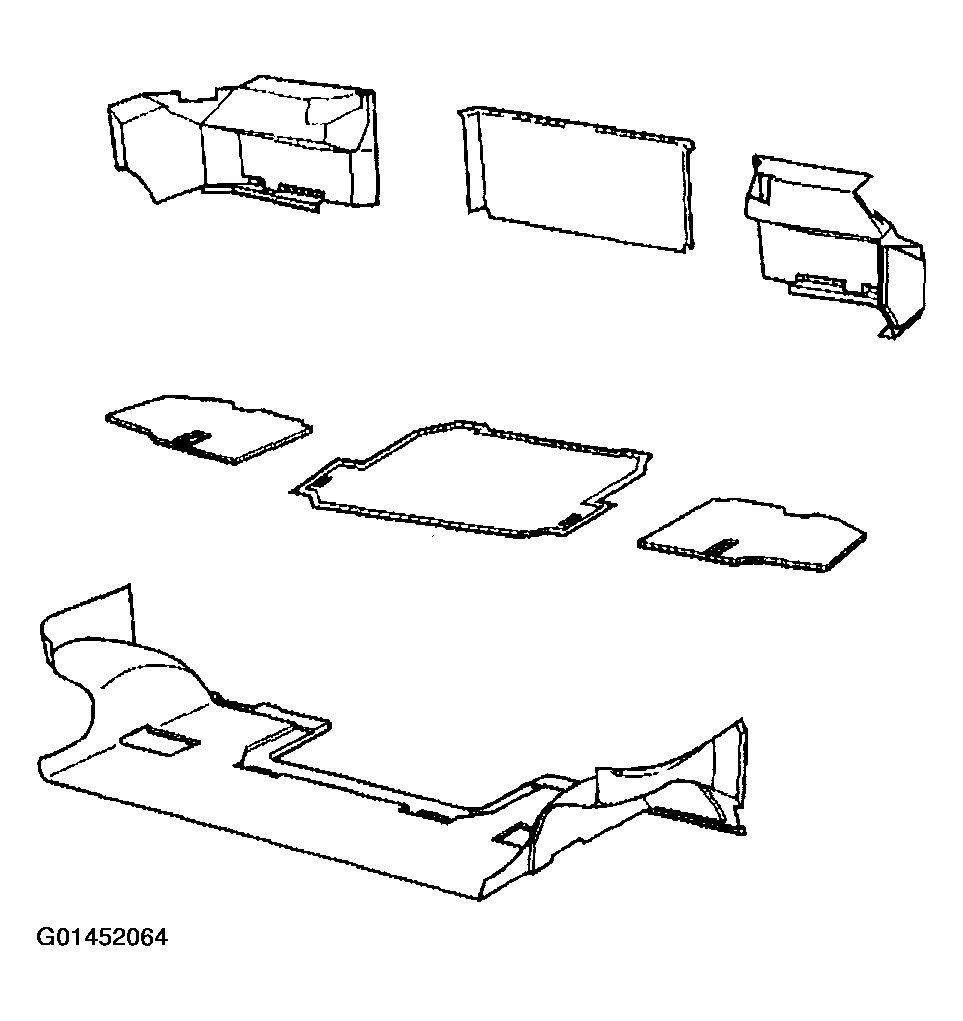

    Fig 2: Rear/End Corner Carpet Trim Panel
    G01452064Courtesy of GENERAL MOTORS CORP.
