Removal Procedure

WARNING: This page is about a different car, the 2003 Chevrolet Corvette. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the rear compartment lift window panel. Refer to LIFT WINDOW PANEL REPLACEMENT - REAR  .
    Fig 1: Rear Compartment Lift Window Panel
    G01452040Courtesy of GENERAL MOTORS CORP.
  2. Remove the bolts attaching the hinge to the lift window panel.

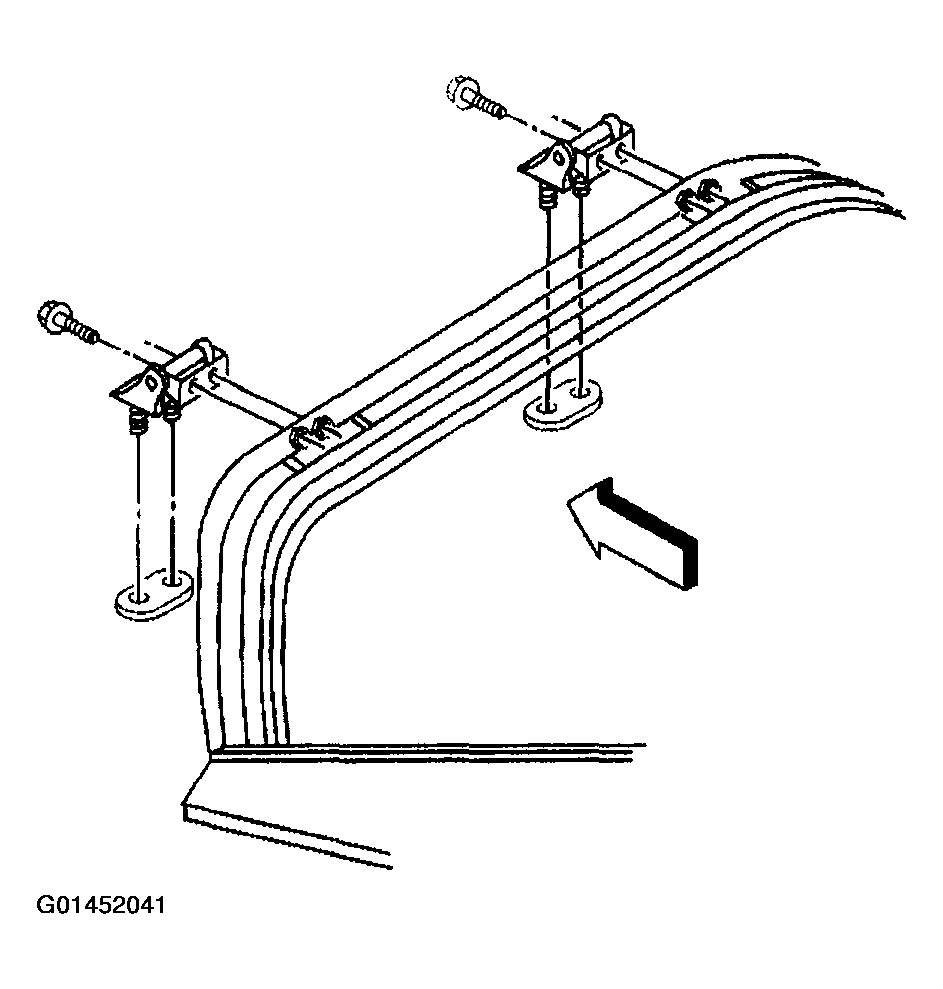

    Fig 2: Removing Bolts Attaching Hinge To Lift Window Panel
    G01452041Courtesy of GENERAL MOTORS CORP.
