Installation Procedure

WARNING: This page is about a different car, the 2003 Chevrolet Corvette. However, it is still accessible from the selected car via links, so may be relevant.
  1. Position the hinge to the lift window panel.
    NOTE: Refer to FASTENER NOTICE in Cautions and Notices.
  2. Install the bolts attaching the hinge to the lift window panel.

    Tighten

    Tighten the lift window hinge bolts to 25 N.m (18 lb ft).

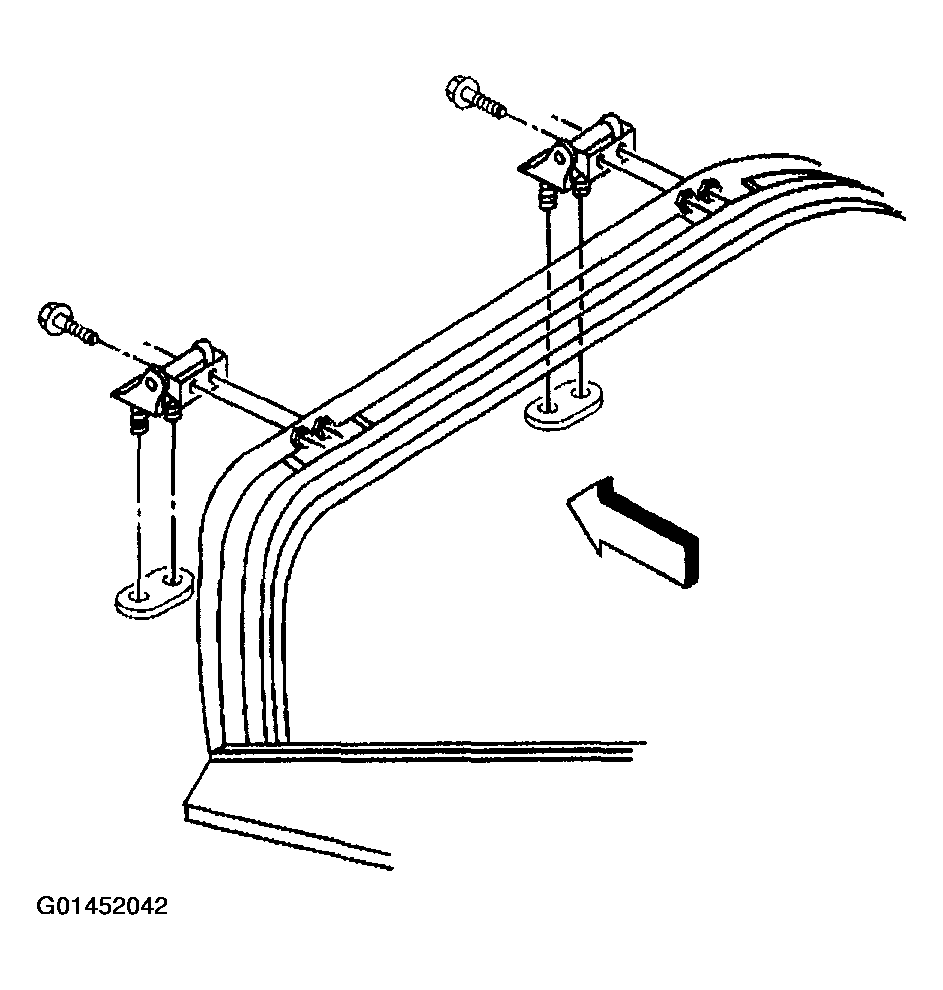

    Fig 1: Installing Bolts Attaching Hinge To Lift Window Panel
    G01452042Courtesy of GENERAL MOTORS CORP.
  3. Apply sealer around the hinge studs.
  4. Install the rear compartment lift window panel. Refer to LIFT WINDOW PANEL REPLACEMENT - REAR  .
    Fig 2: Rear Compartment Lift Window Panel
    G01452043Courtesy of GENERAL MOTORS CORP.
