Removal Procedure

WARNING: This page is about a different car, the 2003 Chevrolet Corvette. However, it is still accessible from the selected car via links, so may be relevant.
  1. Open and support the rear compartment lid.
  2. Mark the location of the hinge to aid in installation.
  3. Remove the bolts attaching the hinge to the body.
  4. Remove the bolts attaching the hinge to the lid.
  5. Remove the hinge.

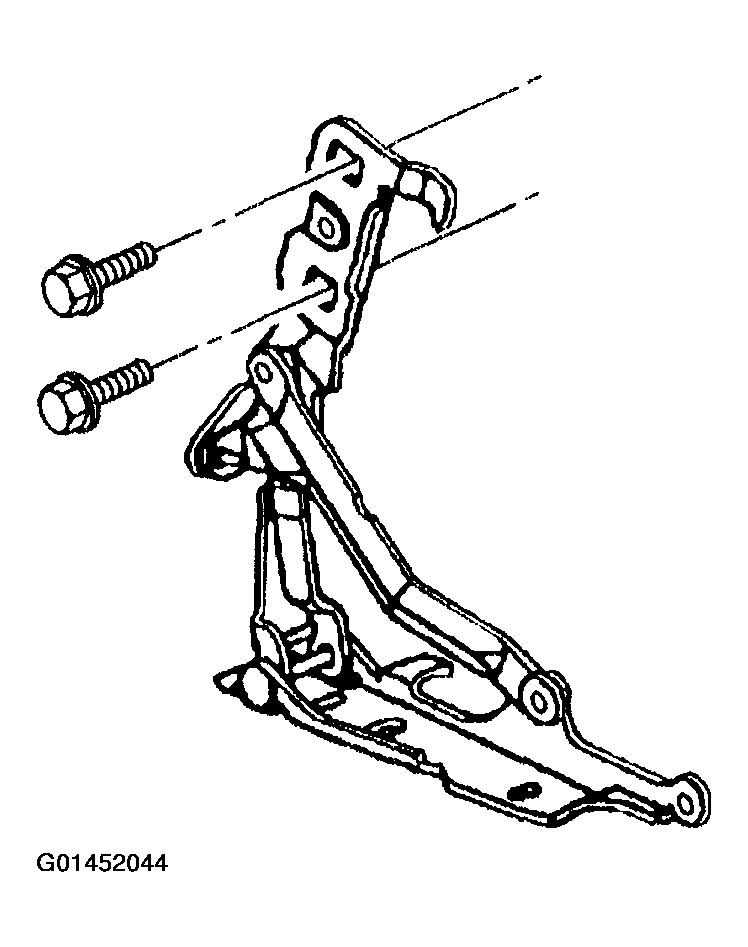

    Fig 1: Removing Bolts Attaching Hinge To Lid
    G01452044Courtesy of GENERAL MOTORS CORP.
