Installation Procedure
WARNING: This page is about a different car, the 2003 Chevrolet Corvette. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
Refer to FASTENER NOTICE
in Cautions and Notices.

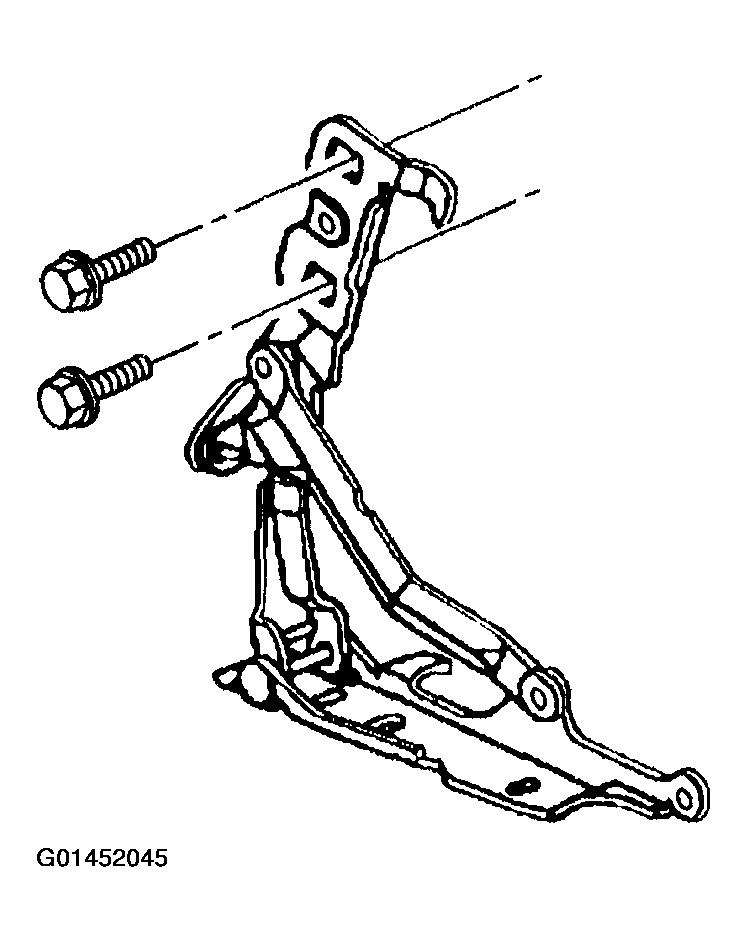

- Install the bolts attaching the hinge to the lid.
Tighten
Tighten the rear compartment hinge to lid bolts to 31 N.m (23 lb ft).
- Install the bolts attaching the hinge to the body.
Tighten
Tighten the rear compartment hinge to body bolts to 25 N.m (18 lb ft).
- Remove support and lower lid.
