Removal Procedure

WARNING: This page is about a different car, the 2003 Chevrolet Corvette. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the rear tire and wheel. Refer to TIRE AND WHEEL REMOVAL AND INSTALLATION in Tires and Wheels.
  2. Remove the bolts attaching the wheelhouse liner panel.
  3. Remove the wheelhouse liner panel.

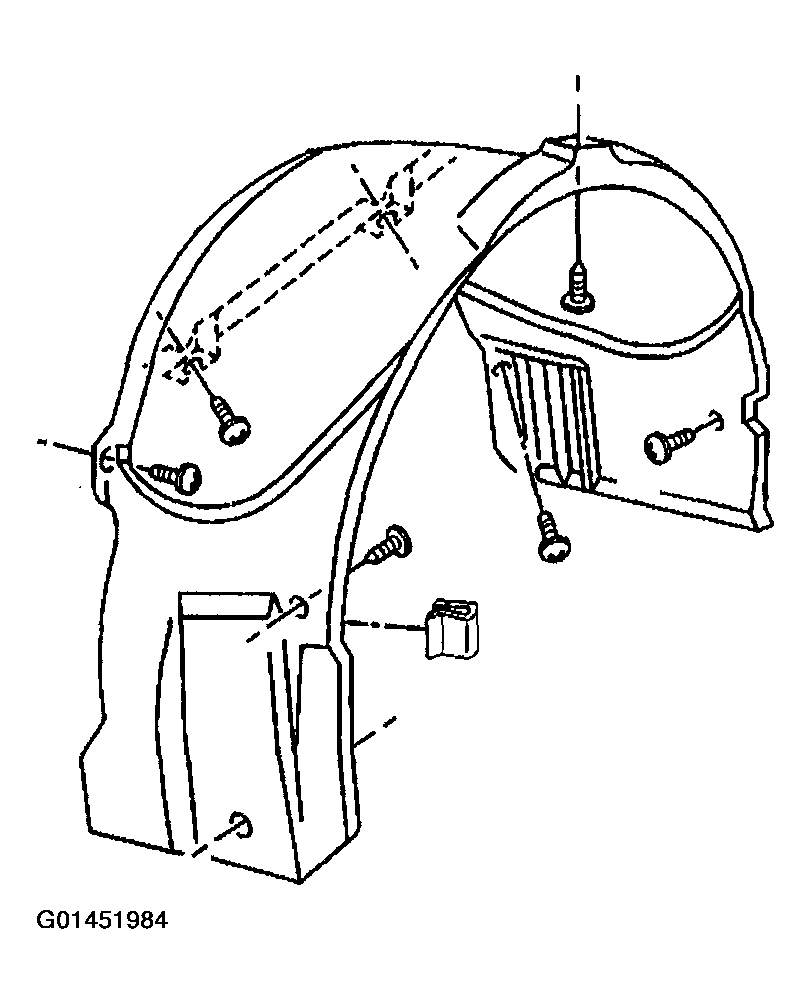

    Fig 1: Wheelhouse Liner Panel
    G01451984Courtesy of GENERAL MOTORS CORP.
  4. Remove the nut from fuel door release cable.

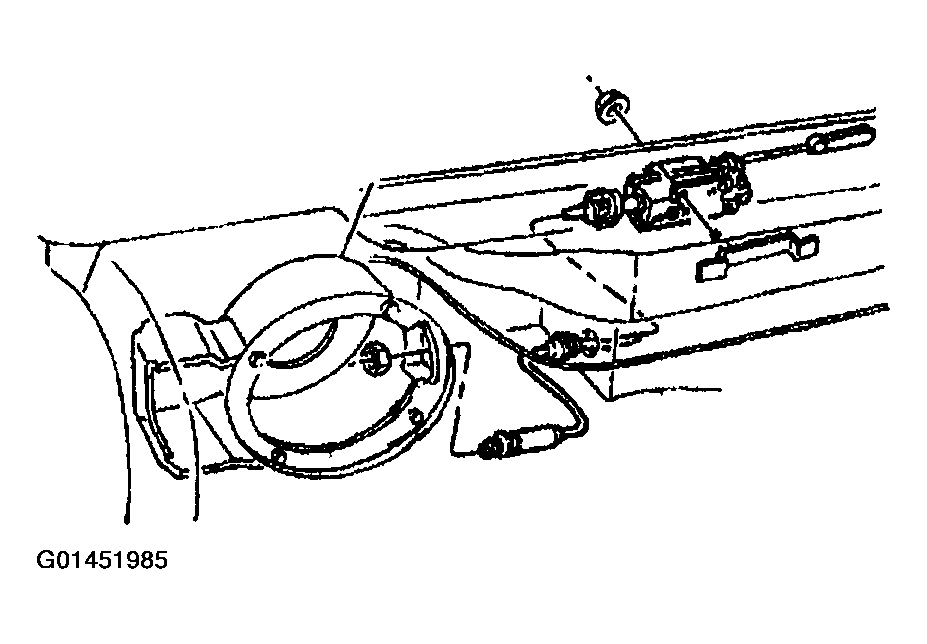

    Fig 2: Removing Nut From Fuel Door Release Cable
    G01451985Courtesy of GENERAL MOTORS CORP.
  5. Remove the fuel filler door. Refer to FUEL FILLER DOOR REPLACEMENT  .

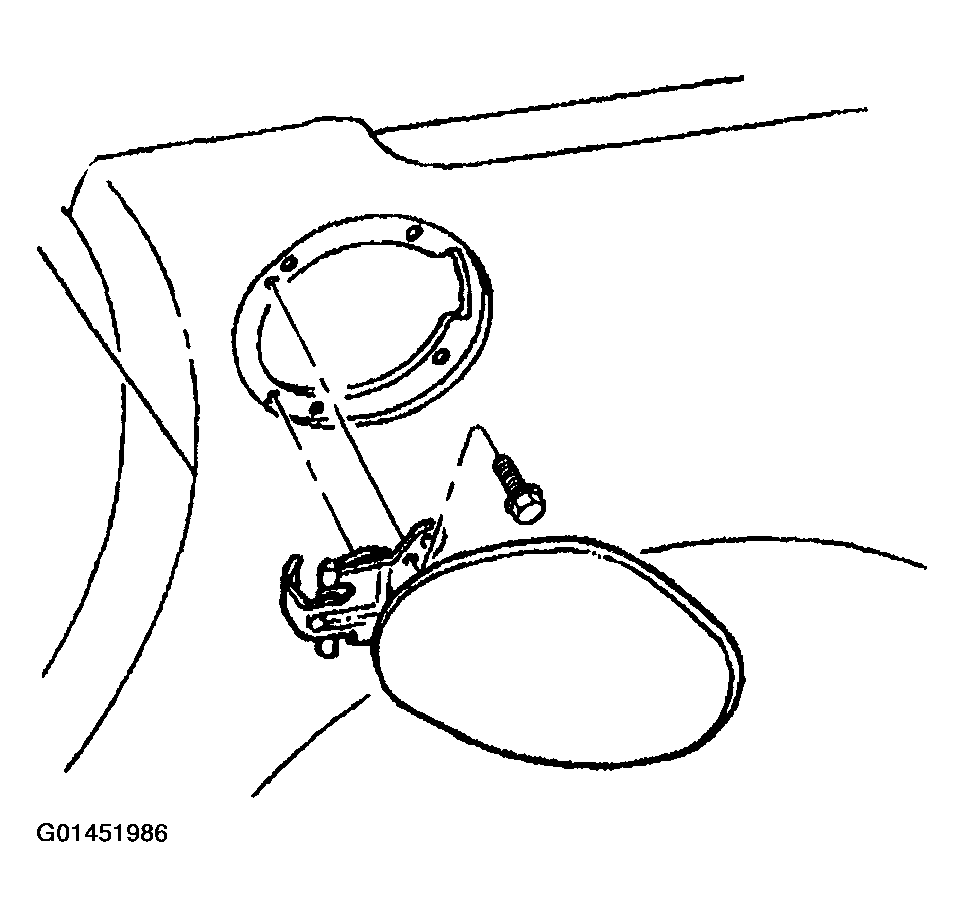

    Fig 3: Fuel Filler Door
    G01451986Courtesy of GENERAL MOTORS CORP.
  6. Remove the screws mounting the fuel pocket.

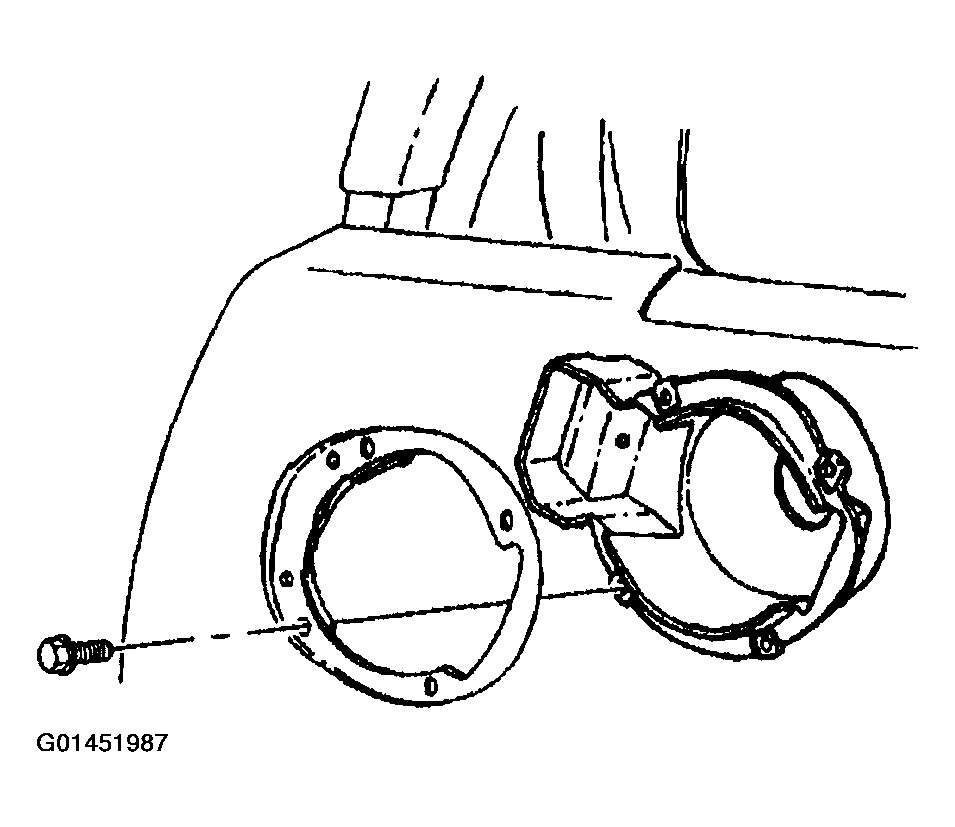

    Fig 4: Removing Screws Mounting Fuel Pocket
    G01451987Courtesy of GENERAL MOTORS CORP.
  7. Remove the fuel cap.
  8. Remove the screws and the filler neck from the pocket.

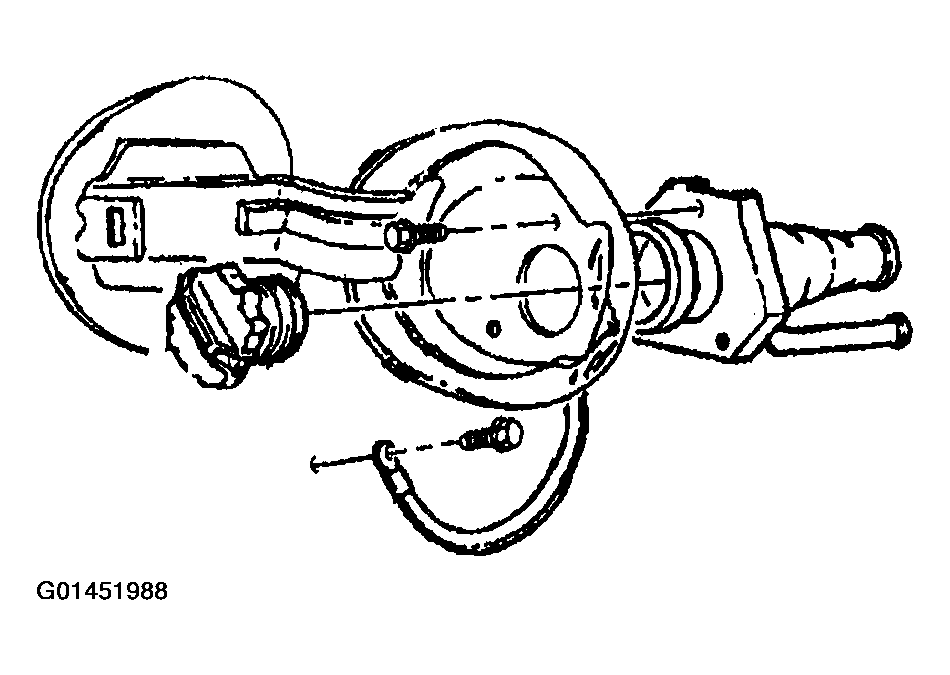

    Fig 5: Removing Screws & Filler Neck From Pocket
    G01451988Courtesy of GENERAL MOTORS CORP.
  9. Remove the fuel filler pocket.

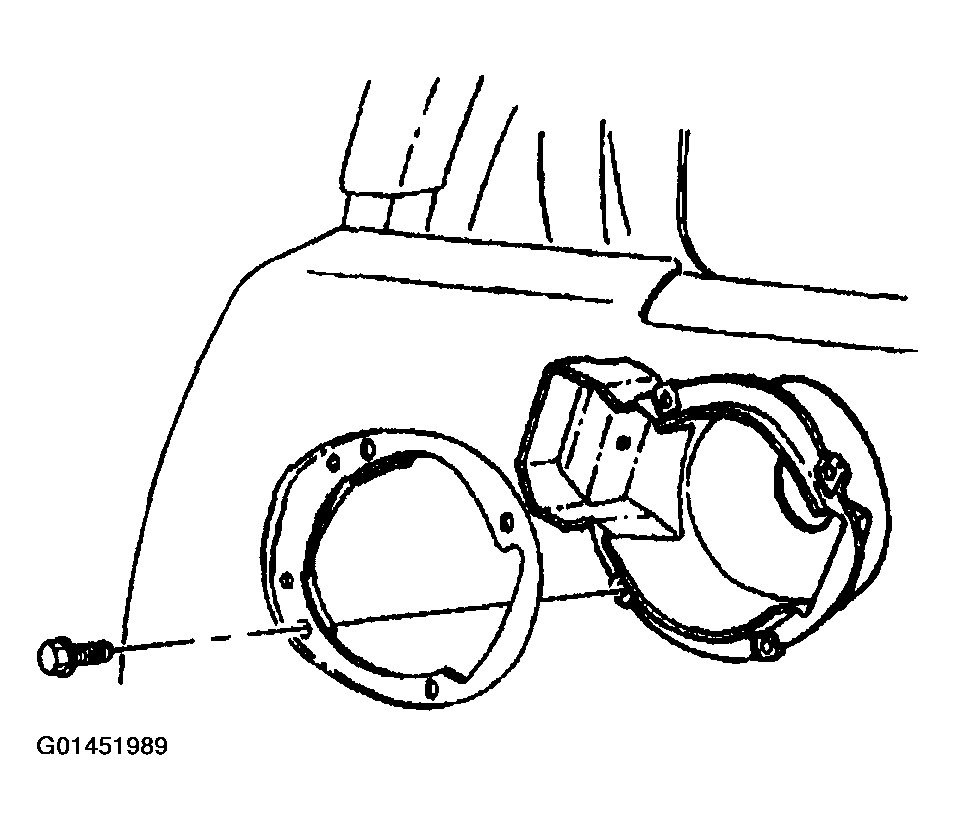

    Fig 6: Fuel Filler Pocket
    G01451989Courtesy of GENERAL MOTORS CORP.
