Installation Procedure

WARNING: This page is about a different car, the 2003 Chevrolet Corvette. However, it is still accessible from the selected car via links, so may be relevant.
  1. Position the fuel filler door in an open position to the fuel pocket.
    NOTE: Refer to FASTENER NOTICE in Cautions and Notices.
  2. Install the bolt attaching the door to the inner panel.

    Tighten

    Tighten the fuel filler door bolt to 2 N.m (18 lb in).

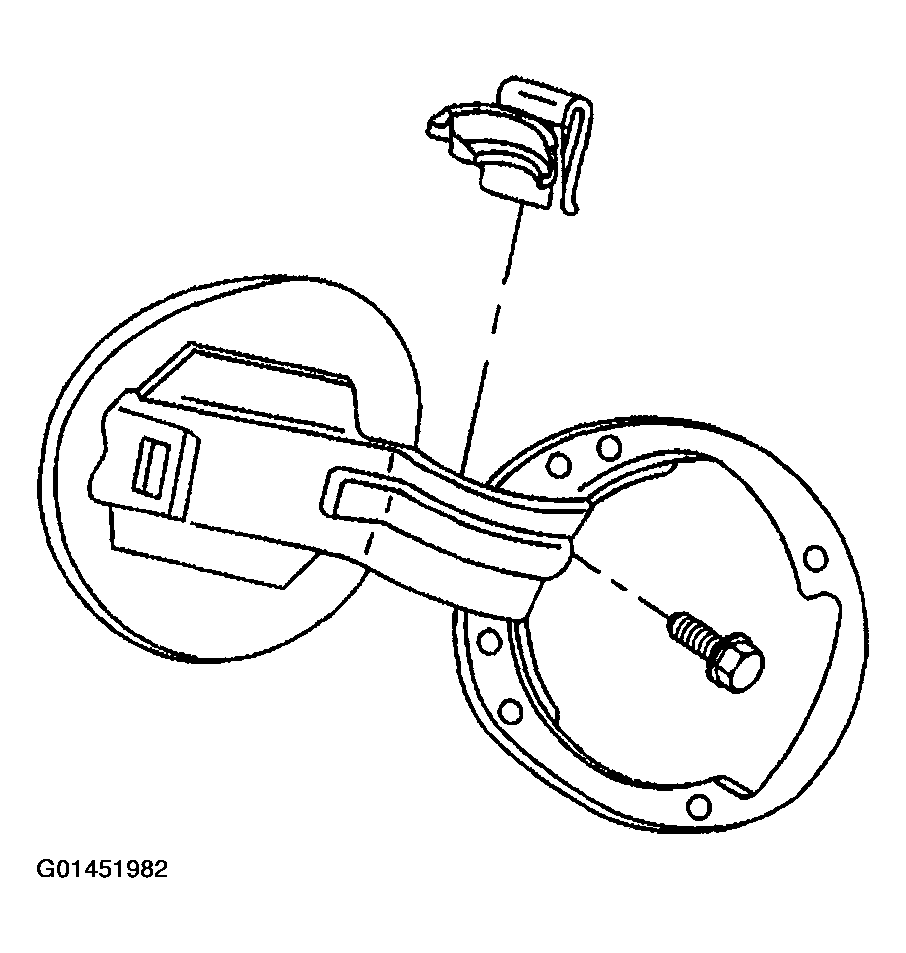

    Fig 1: Installing Bolt Mounting Fuel Door To Inner Body Panel
    G01451982Courtesy of GENERAL MOTORS CORP.
  3. Install the screws attaching the fuel filler door to the quarter panel.

    Tighten

    Tighten the filler door to quarter panel screws to 2 N.m (18 lb in).

  4. Install the fuel cap retaining strap.

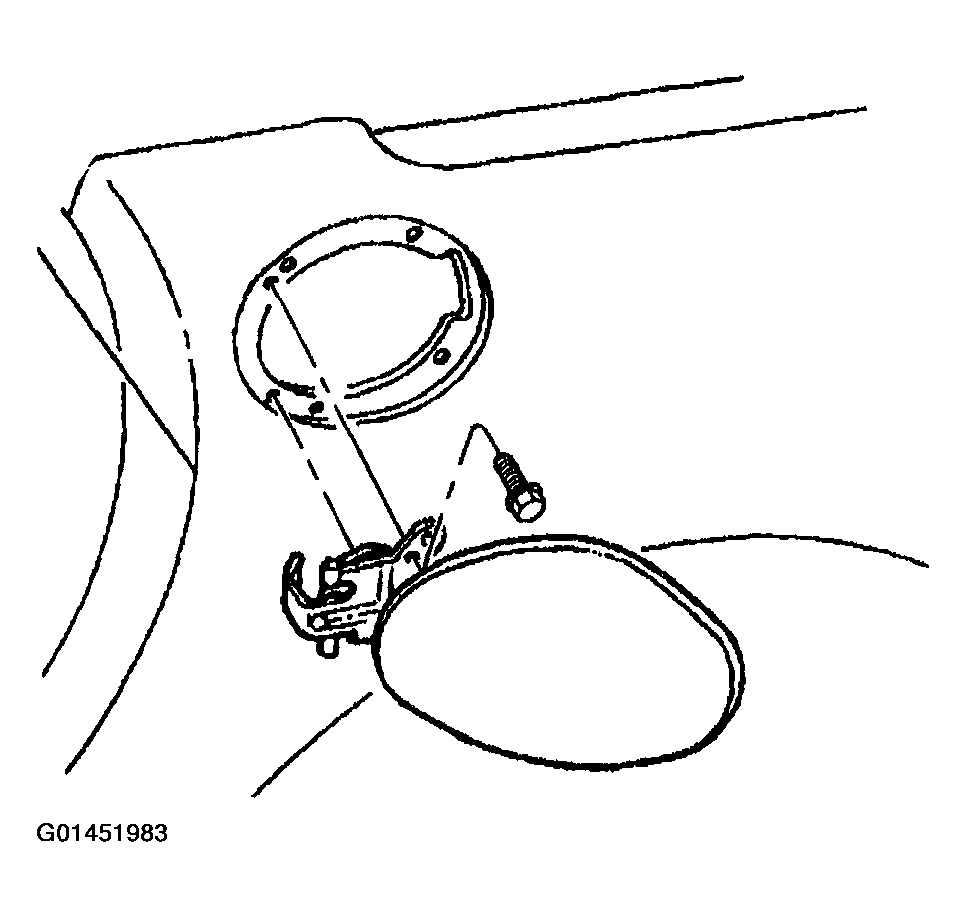

    Fig 2: Installing Screws Mounting Fuel Door To Quarter Panel
    G01451983Courtesy of GENERAL MOTORS CORP.
