Removal Procedure

WARNING: This page is about a different car, the 2003 Chevrolet Corvette. However, it is still accessible from the selected car via links, so may be relevant.
NOTE: When removing body panels, apply tape to corners of panel and adjacent surfaces to help prevent paint damage.
  1. Open and support the rear compartment lid.
  2. Mark the location of the hinges to the lid to aid in installation.
  3. Remove the bolts attaching the hinges to the lid.
  4. With an assistant, remove the rear compartment lid.

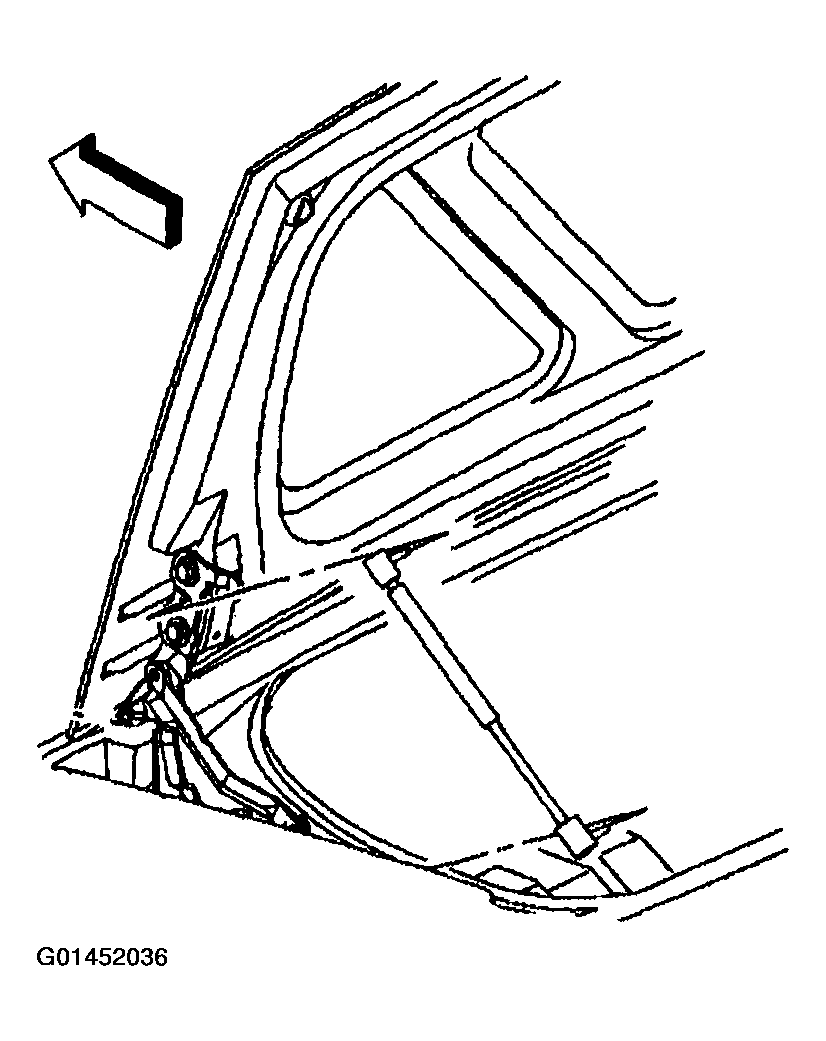

    Fig 1: Supporting Rear Compartment Lid
    G01452036Courtesy of GENERAL MOTORS CORP.
