Installation Procedure

WARNING: This page is about a different car, the 2003 Chevrolet Corvette. However, it is still accessible from the selected car via links, so may be relevant.
  1. With an assistant, position the lid to the hinges aligning the hinges with the marks on the lid.
    NOTE: Refer to FASTENER NOTICE in Cautions and Notices.
  2. Install the bolts attaching the hinges to the lid.

    Tighten

    Tighten the rear compartment to lid hinge bolts to 31 N.m (23 lb ft).

  3. Remove the lid support and the protective cover.

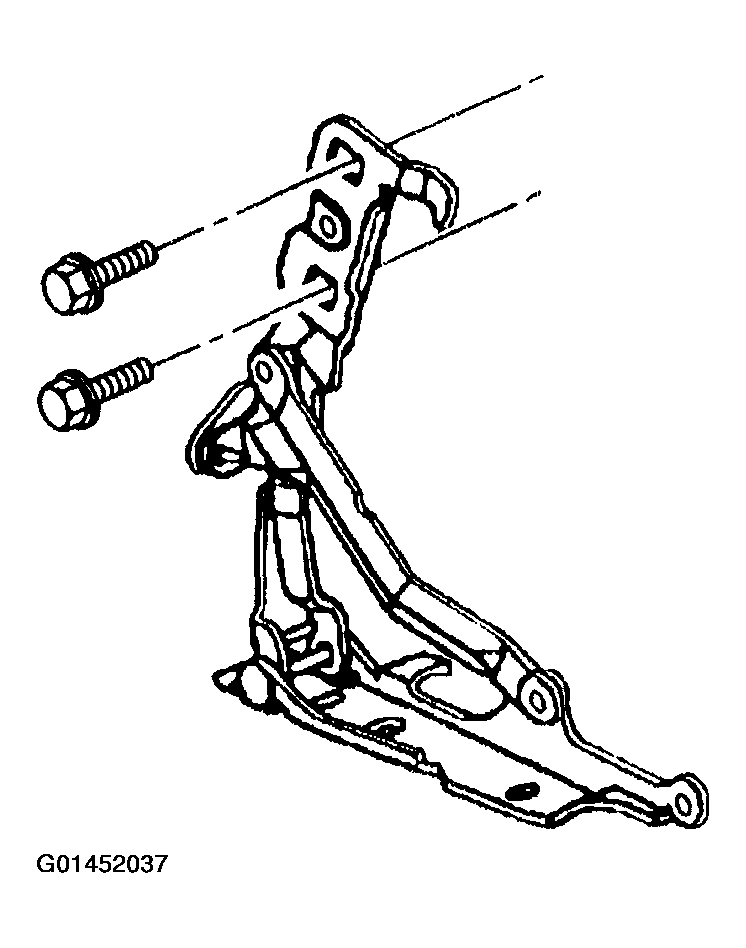

    Fig 1: Installing Bolts Attaching Hinges To Lid
    G01452037Courtesy of GENERAL MOTORS CORP.
  4. Install and adjust the overslam bumpers.

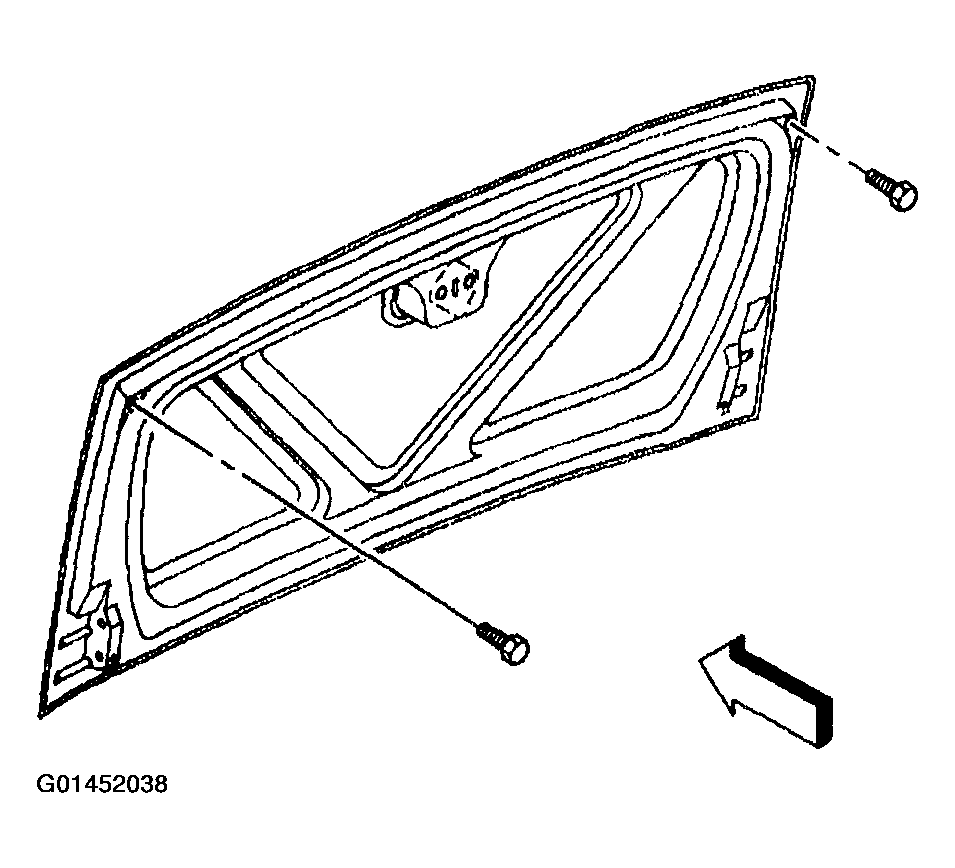

    Fig 2: Installing & Adjusting Overslam Bumpers
    G01452038Courtesy of GENERAL MOTORS CORP.
  5. Check the flushness of the forward edge of the lid to the adjacent panel.
  6. Adjust the alignment bumper as necessary to make the forward edge of the lid flush to the adjacent panel.

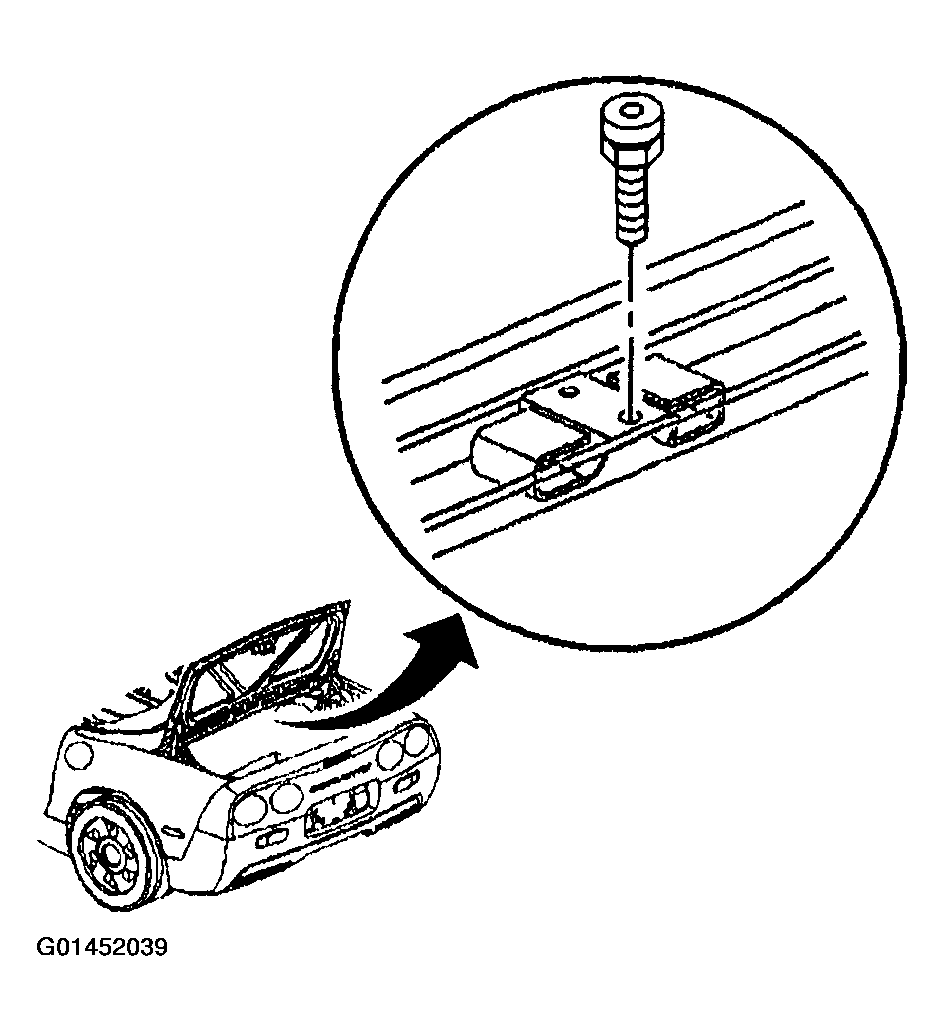

    Fig 3: Checking Flushness Of Forward Edge Of Lid To Adjacent Panel
    G01452039Courtesy of GENERAL MOTORS CORP.
