Installation Procedure

WARNING: This page is about a different car, the 2003 Chevrolet Corvette. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the brake caliper cooling air scoop.

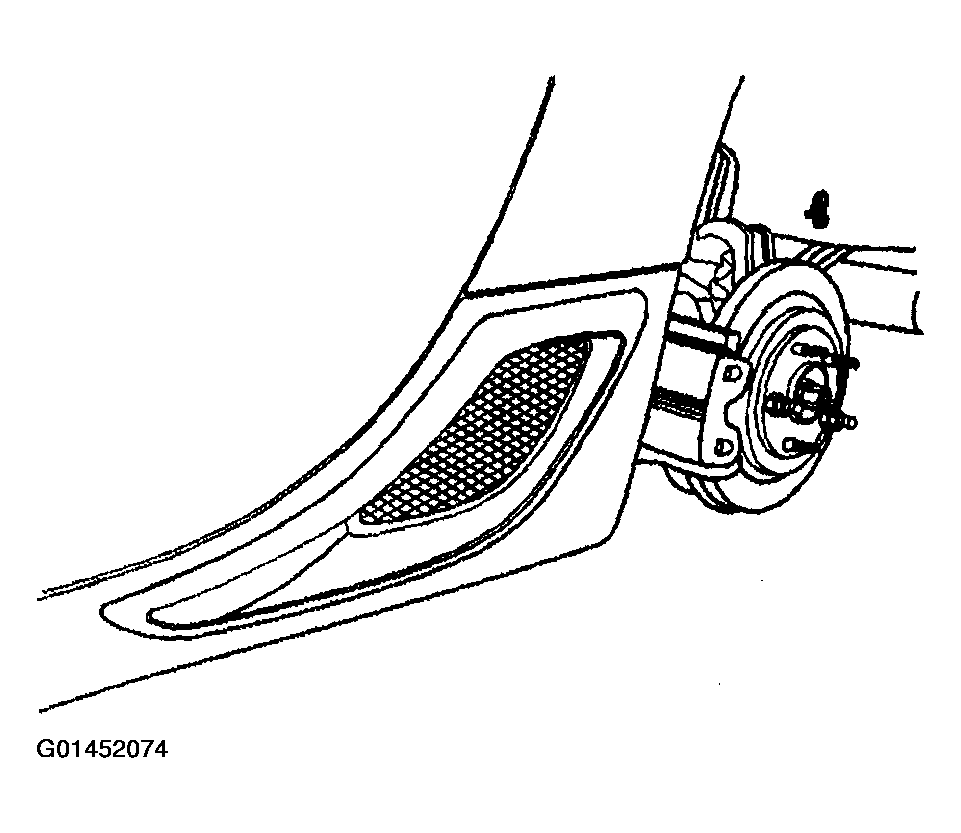

    Fig 1: Brake Caliper Cooling Air Scoop
    G01452074Courtesy of GENERAL MOTORS CORP.
    NOTE: Refer to FASTENER NOTICE in Cautions and Notices.
  2. Install the 4 brake caliper cooling air scoop nuts.

    Tighten

    Tighten the brake caliper cooling air scoop nuts to 3 N.m (27 lb in).

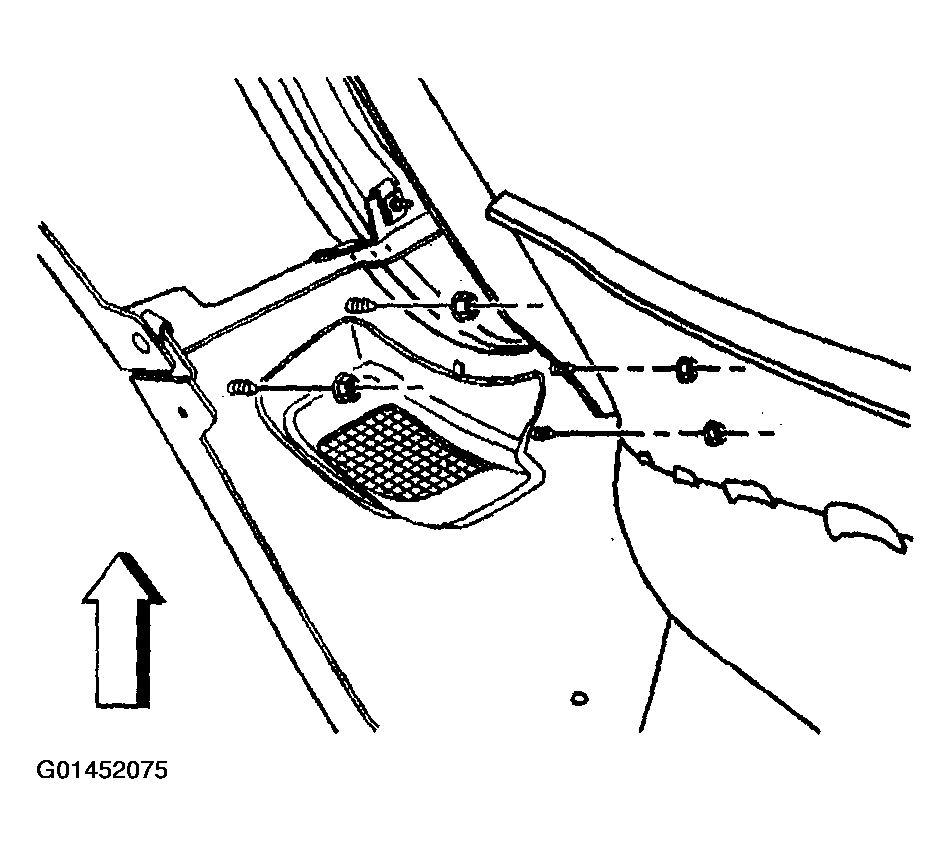

    Fig 2: Brake Caliper Cooling Air Scoop Nuts
    G01452075Courtesy of GENERAL MOTORS CORP.
  3. Install the brake caliper cooling duct.
  4. Install the wheelhouse panel. Refer to WHEELHOUSE PANEL REPLACEMENT  .
  5. Install the tire and wheel assembly. Refer to TIRE AND WHEEL REMOVAL AND INSTALLATION in Tires and Wheels.
  6. Lower the vehicle.

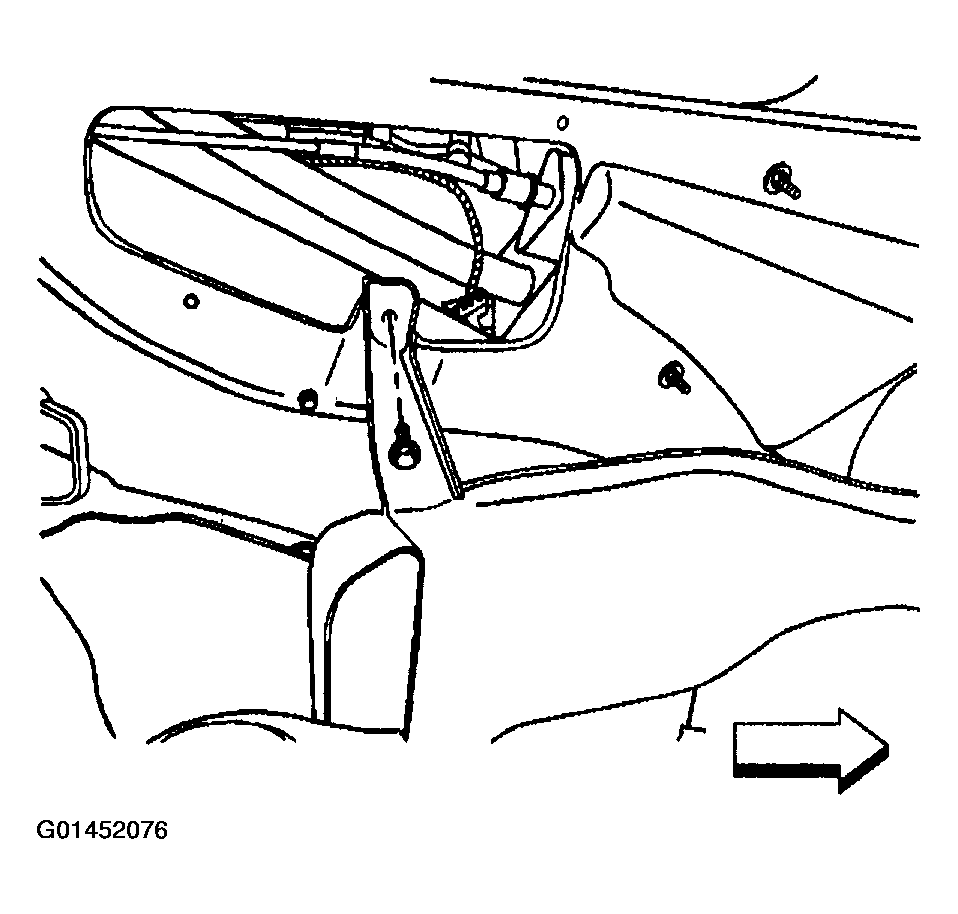

    Fig 3: Brake Caliper Cooling Duct
    G01452076Courtesy of GENERAL MOTORS CORP.
