Symptom List

WARNING: This page is about a different car, the 2003 Chevrolet Corvette. However, it is still accessible from the selected car via links, so may be relevant.

Refer to a symptom diagnostic procedure from the following list in order to diagnose the symptom:

See Fig 1
See Fig 3
See Fig 5
See Fig 7
See Fig 9
See Fig 11
See Fig 12

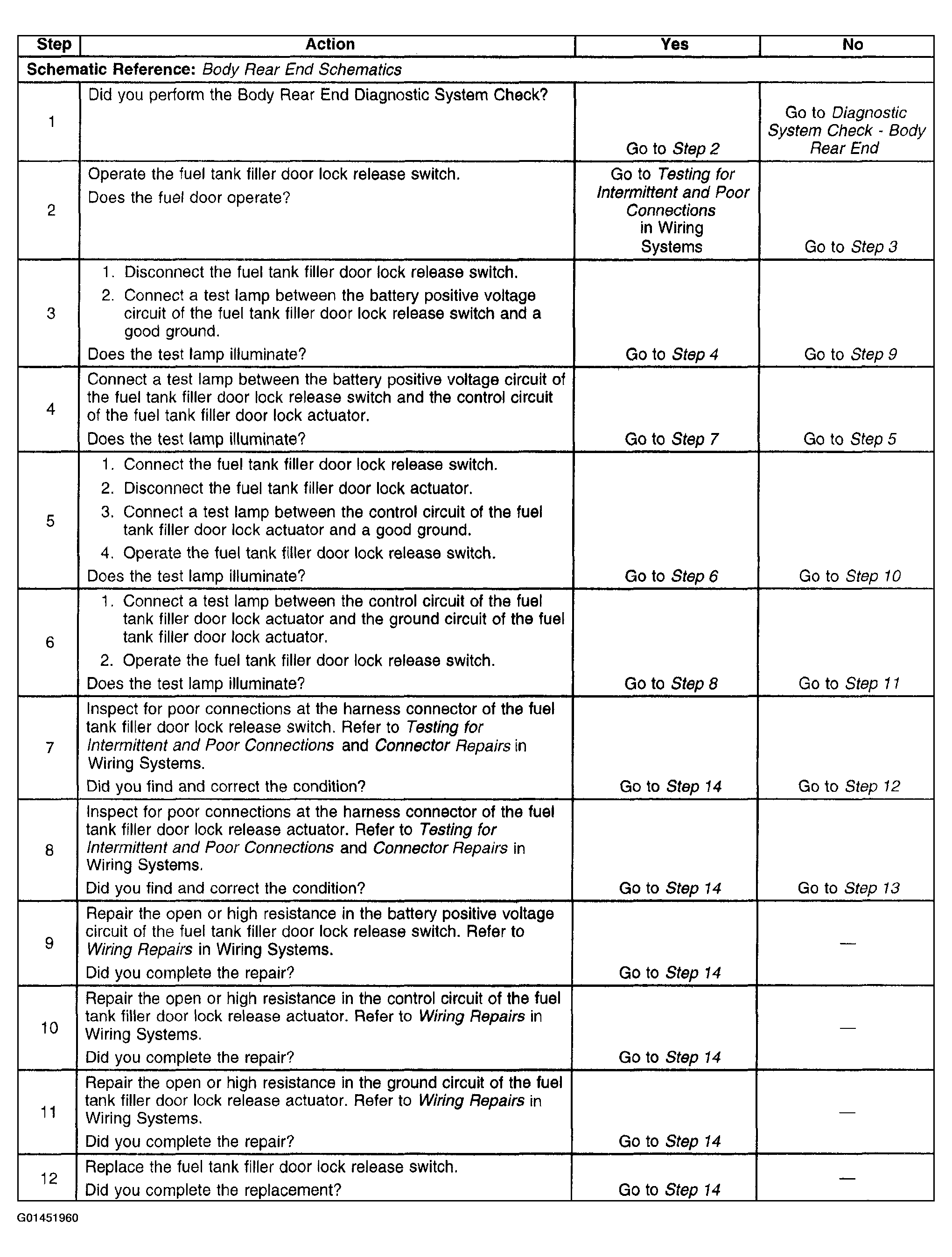

Fig 1: Fuel Filler Door Release Inoperative (1 Of 2)

G01451960

Courtesy of GENERAL MOTORS CORP.

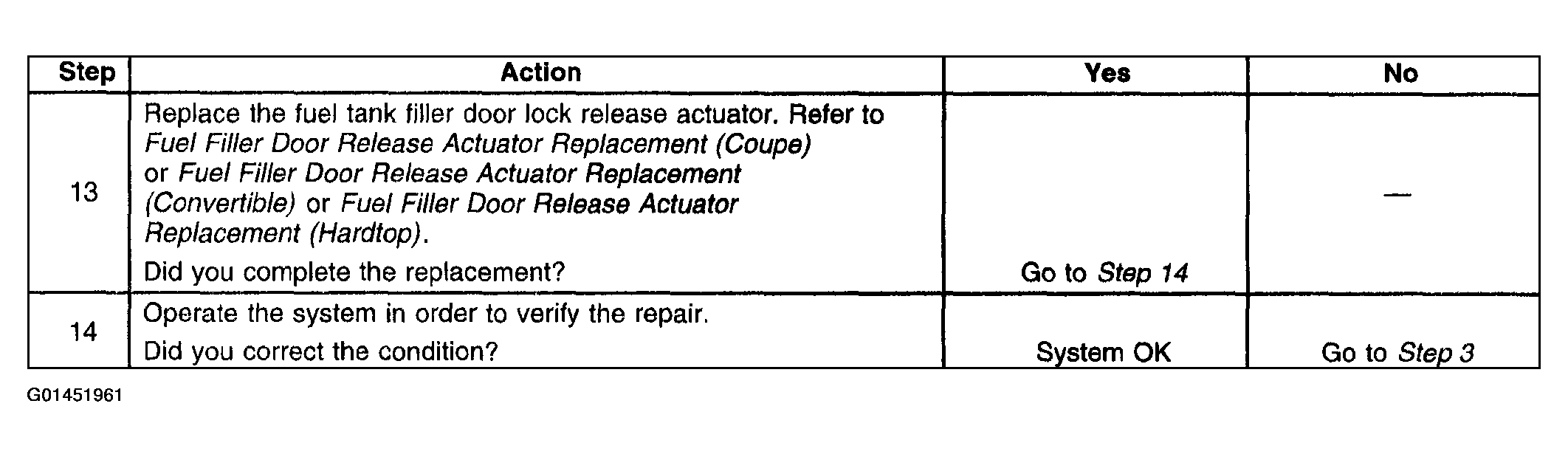

Fig 2: Fuel Filler Door Release Inoperative (2 Of 2)

G01451961

Courtesy of GENERAL MOTORS CORP.

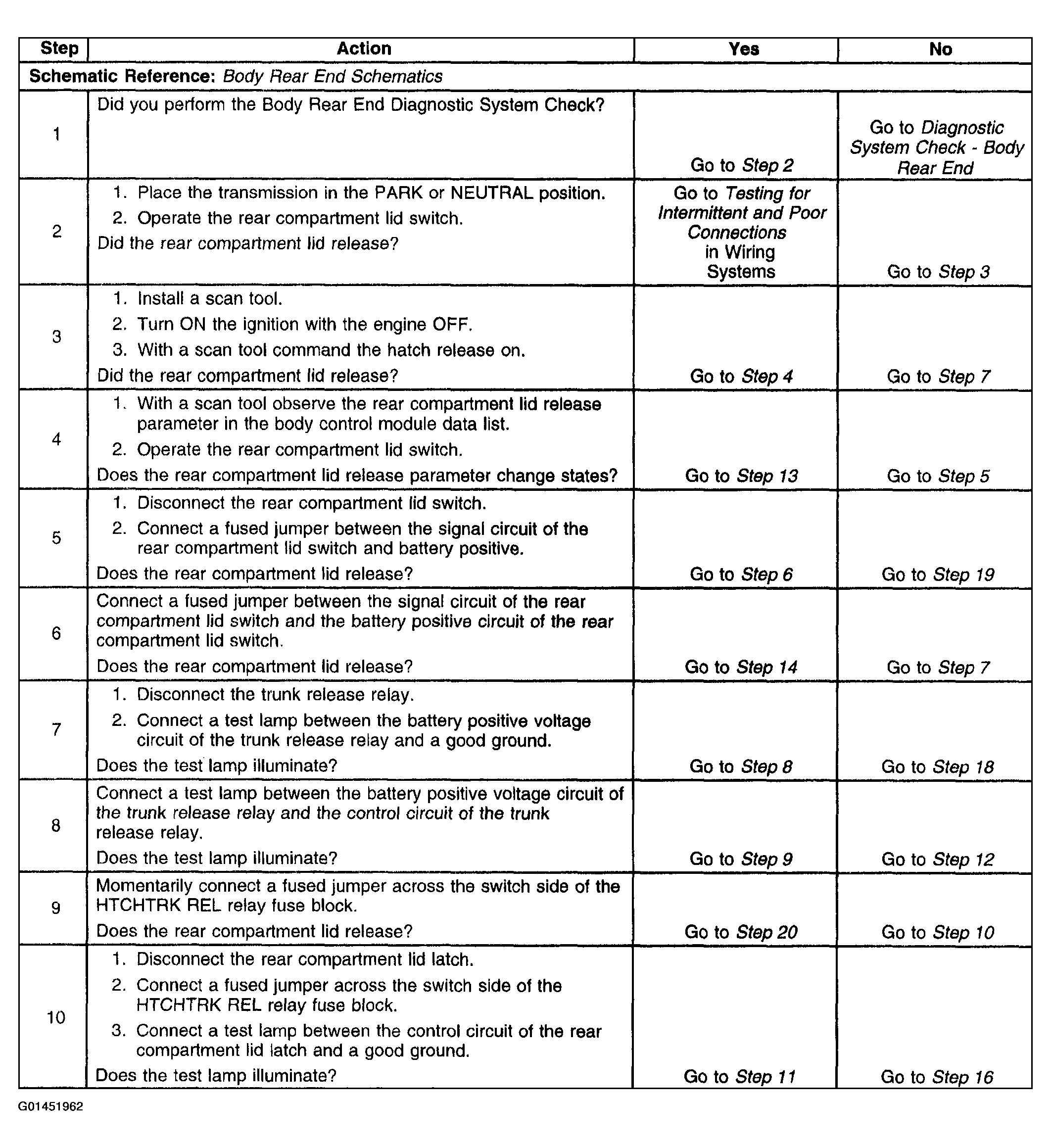

Fig 3: Hatch Release Inoperative (1 Of 2)

G01451962

Courtesy of GENERAL MOTORS CORP.

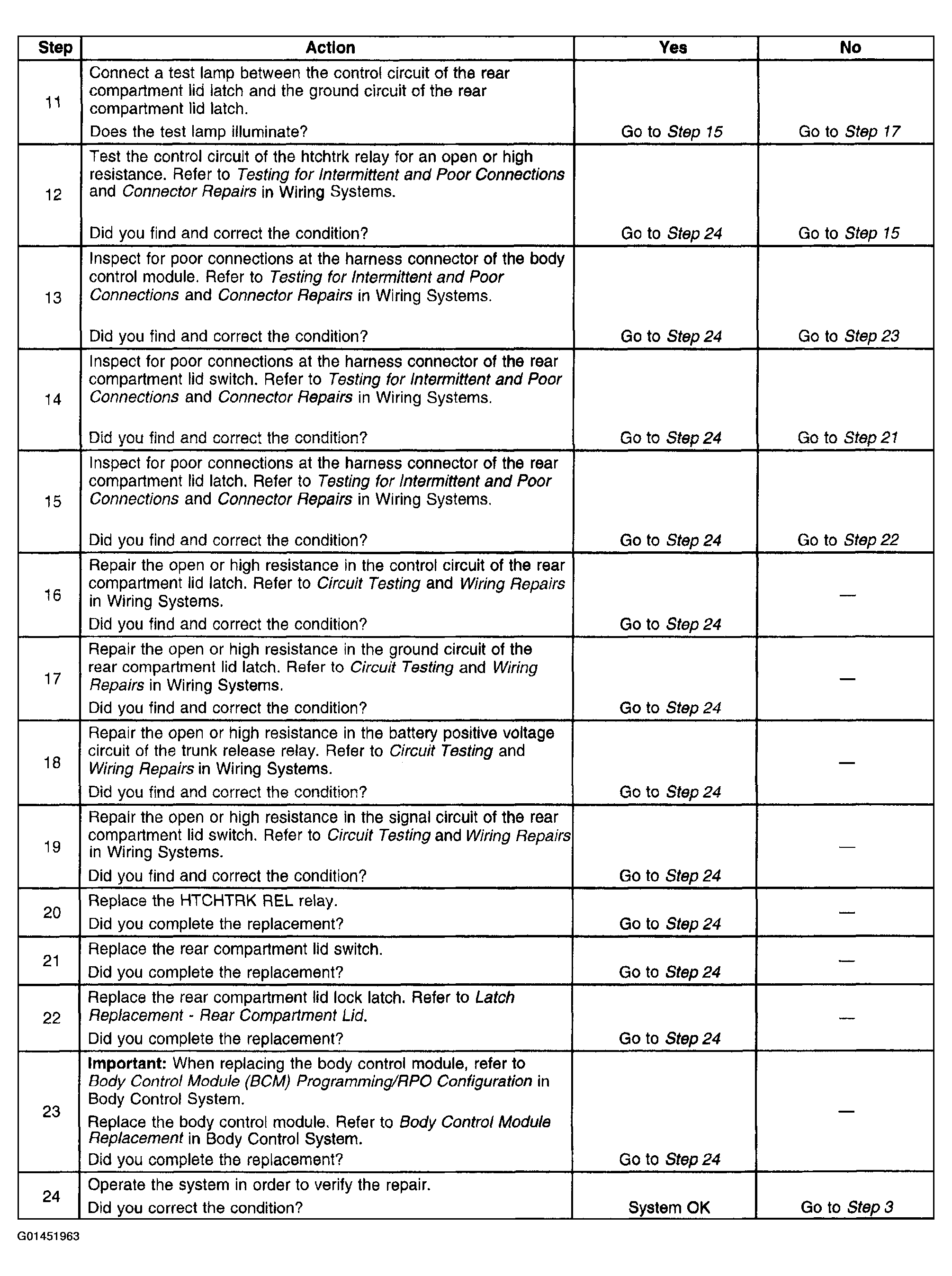

Fig 4: Hatch Release Inoperative (2 Of 2)

G01451963

Courtesy of GENERAL MOTORS CORP.

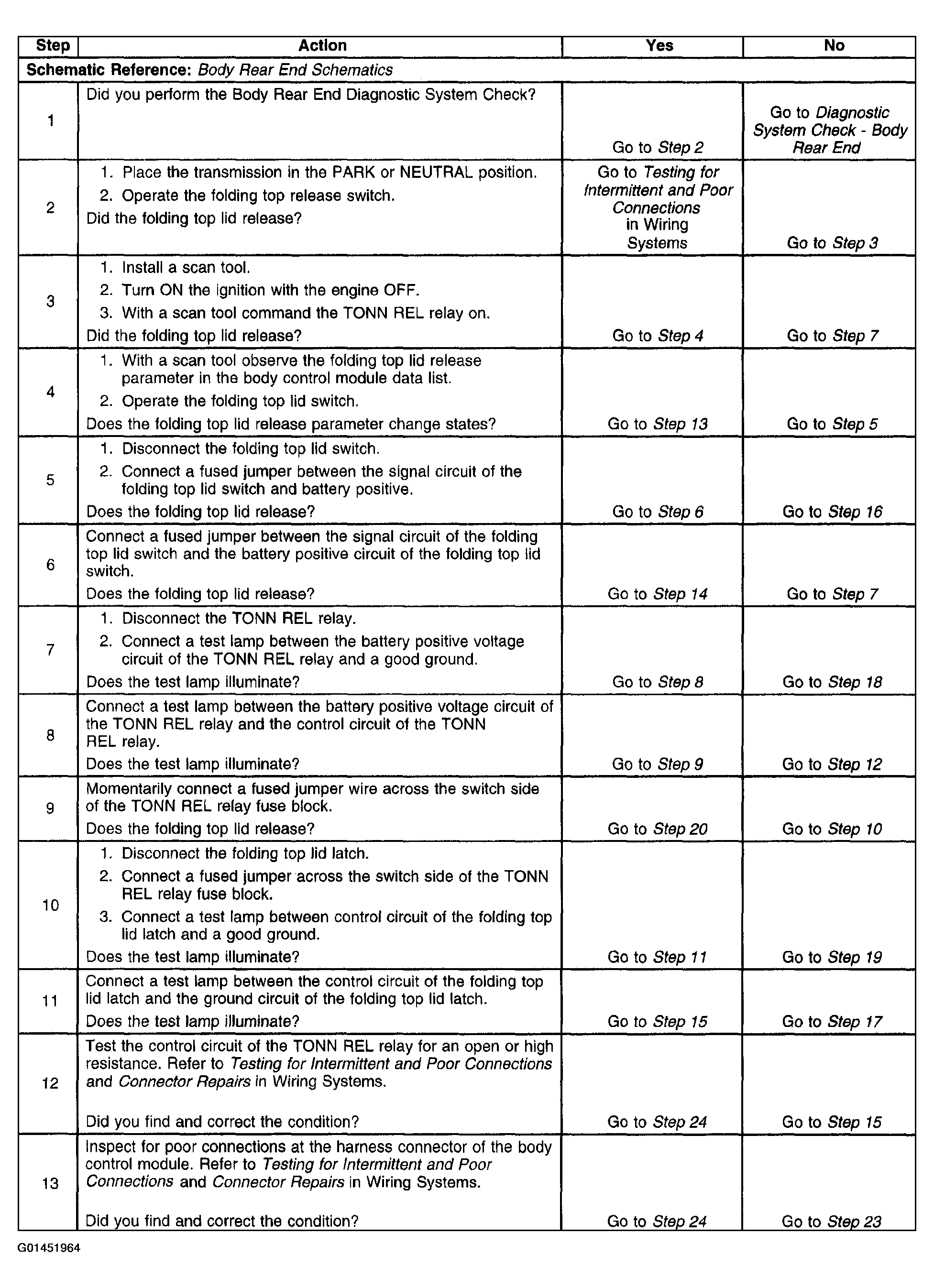

Fig 5: Trunk Release Inoperative (1 Of 2)

G01451964

Courtesy of GENERAL MOTORS CORP.

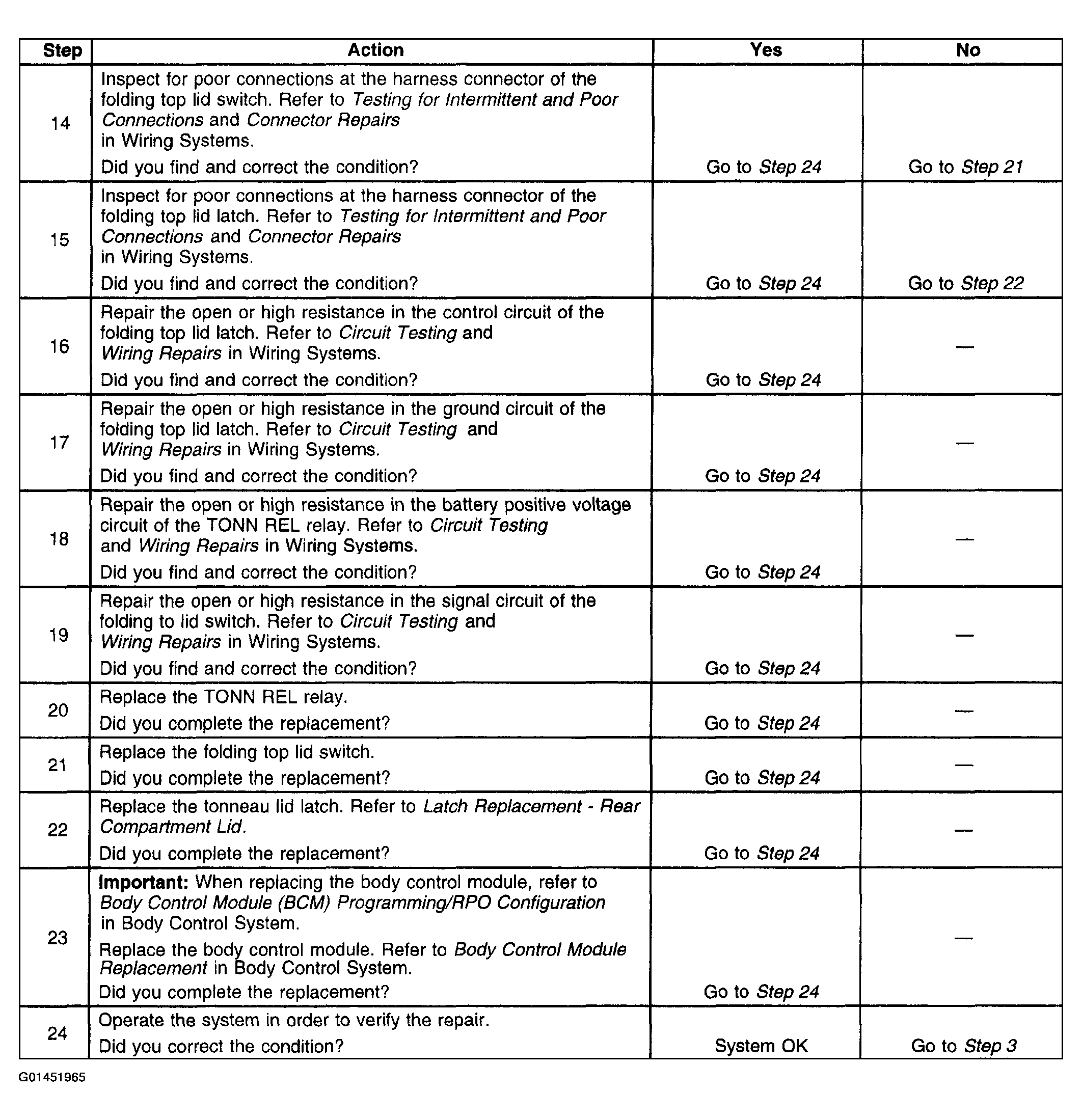

Fig 6: Trunk Release Inoperative (2 Of 2)

G01451965

Courtesy of GENERAL MOTORS CORP.

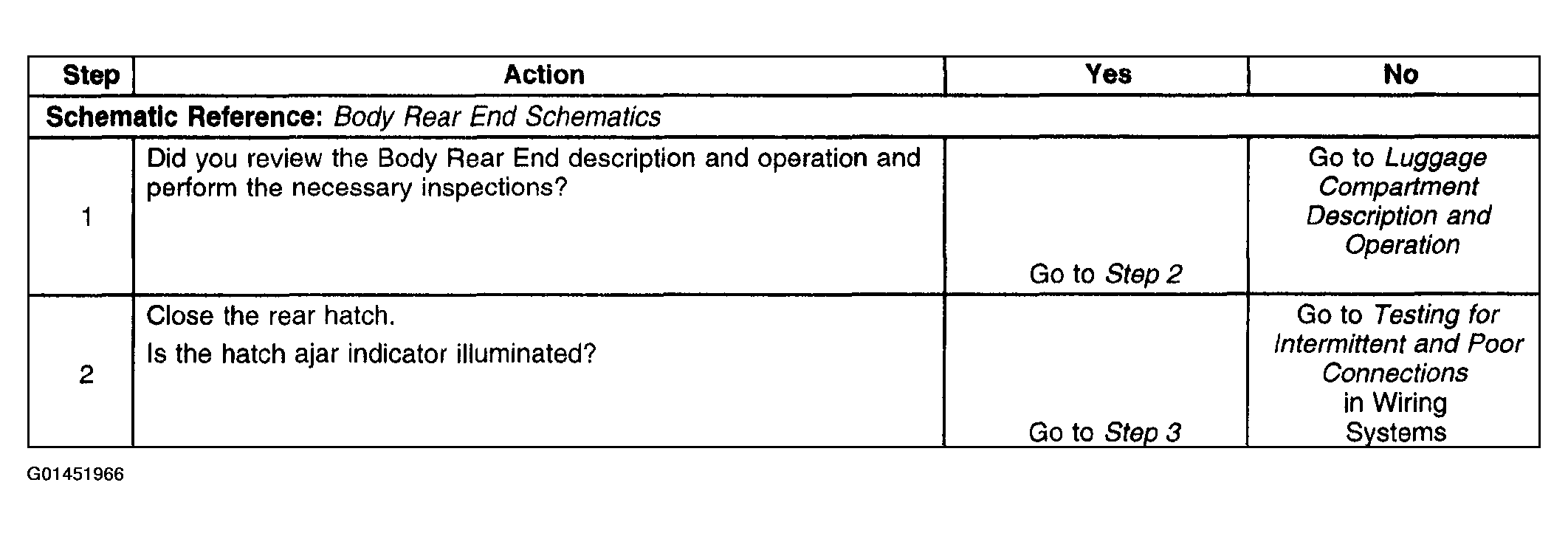

Fig 7: Rear Hatch/Gate Ajar Indicator Always On (1 Of 2)

G01451966

Courtesy of GENERAL MOTORS CORP.

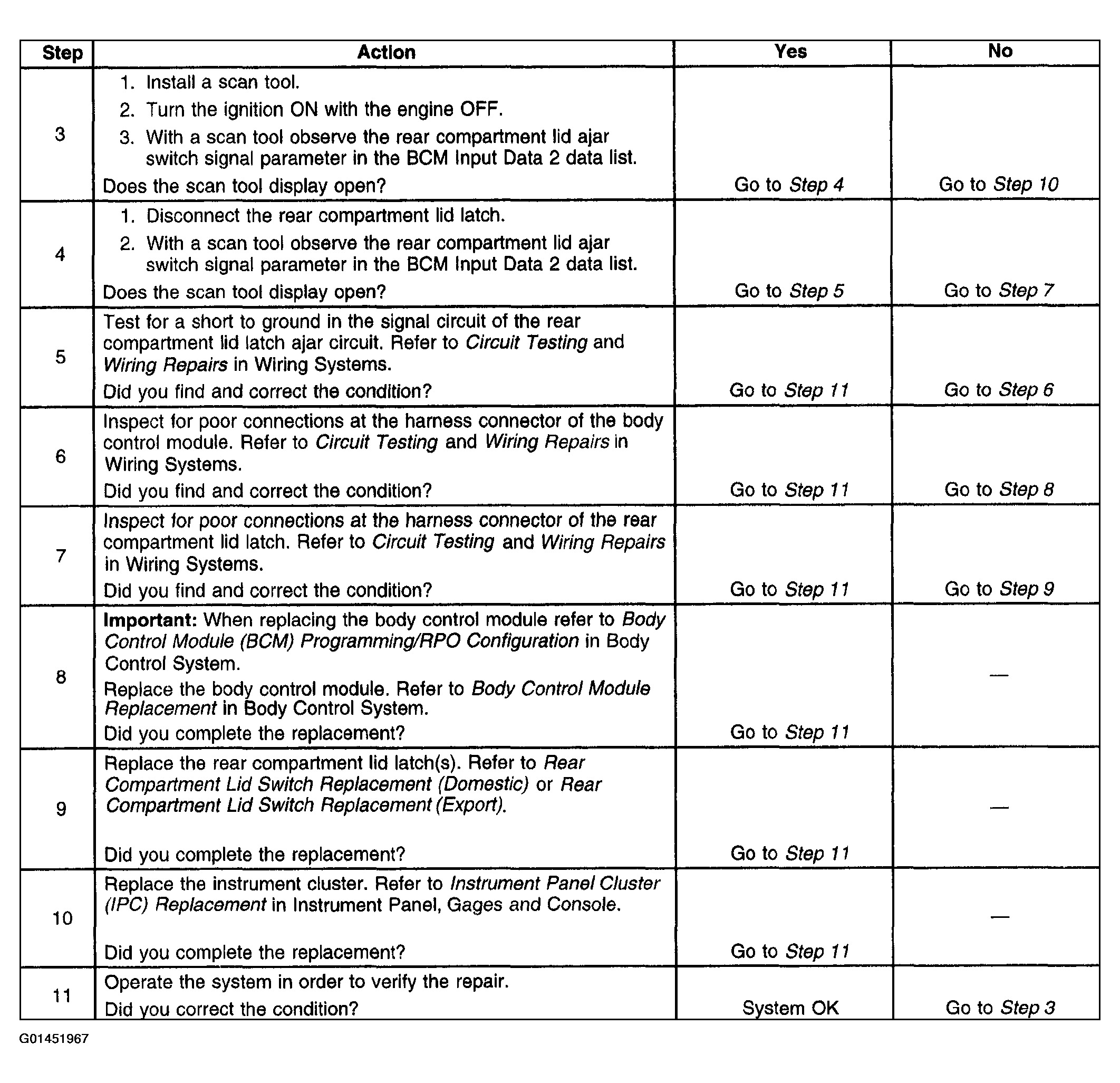

Fig 8: Rear Hatch/Gate Ajar Indicator Always On (2 Of 2)

G01451967

Courtesy of GENERAL MOTORS CORP.

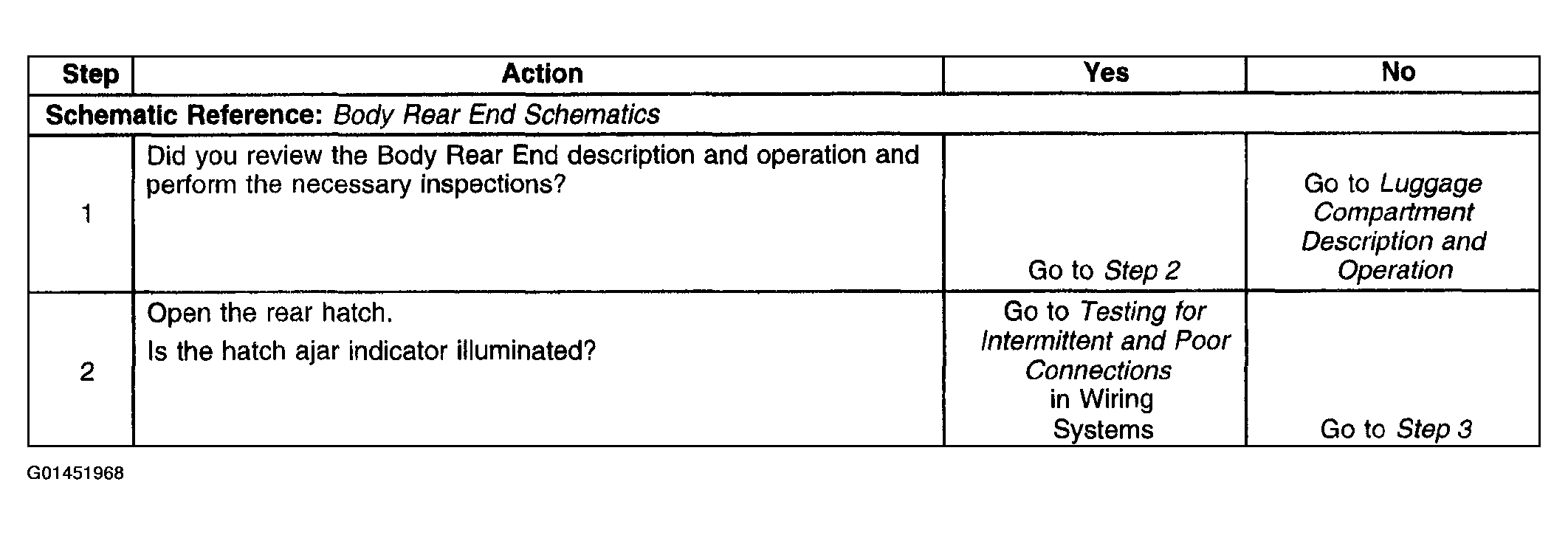

Fig 9: Rear Hatch/Gate Ajar Indicator Inoperative (1 Of 2)

G01451968

Courtesy of GENERAL MOTORS CORP.

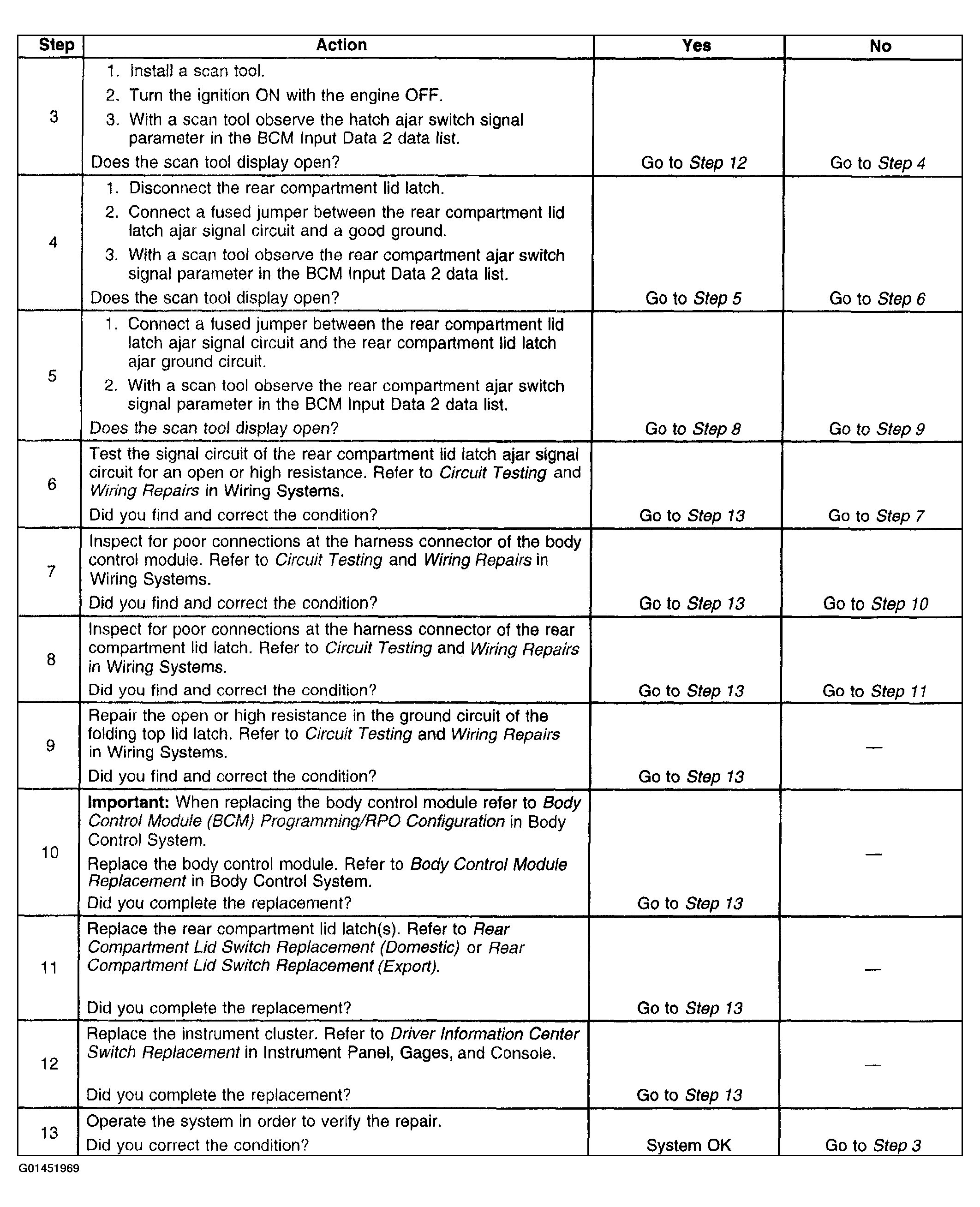

Fig 10: Rear Hatch/Gate Ajar Indicator Inoperative (2 Of 2)

G01451969

Courtesy of GENERAL MOTORS CORP.

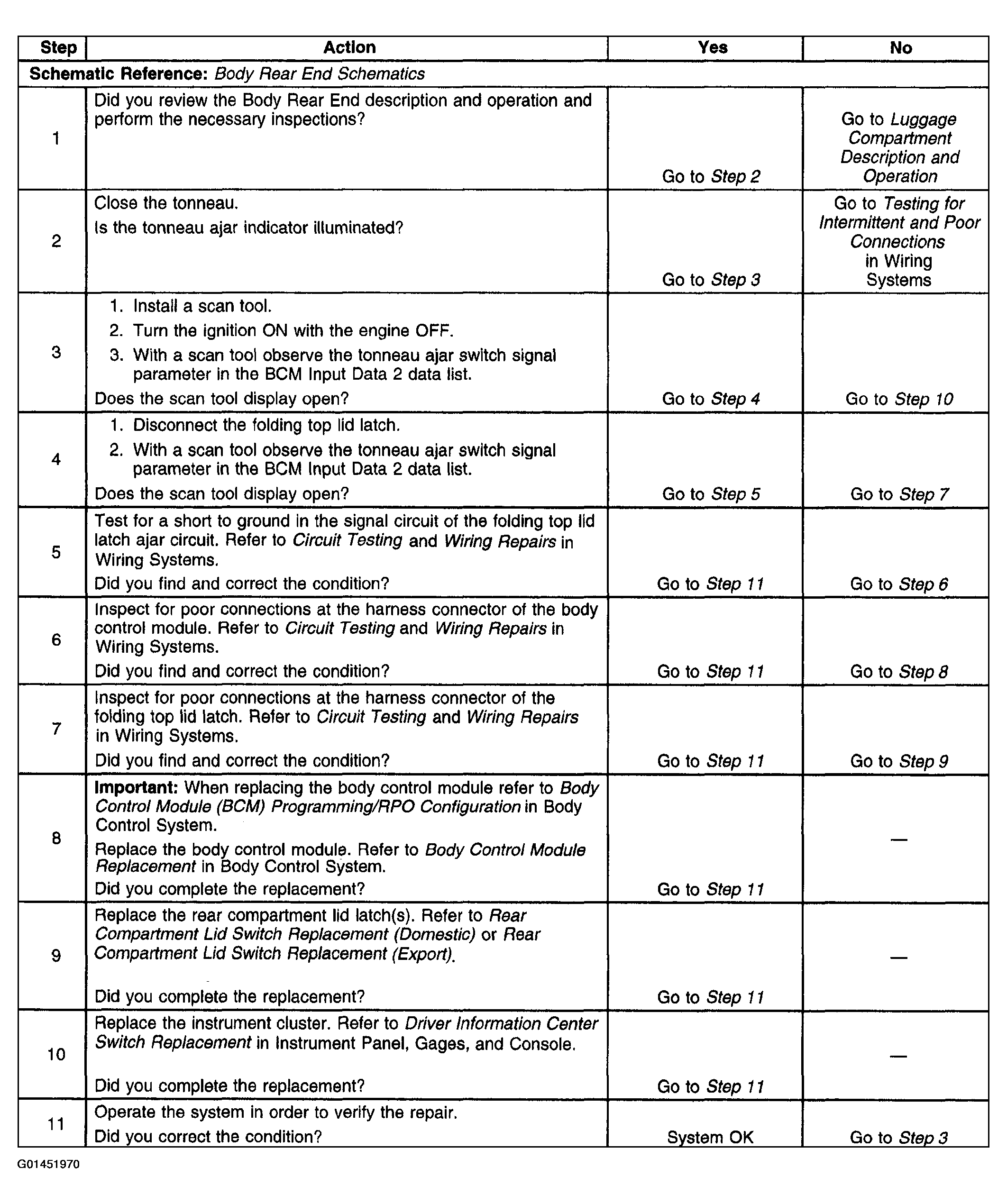

Fig 11: Tonneau Ajar Indicator Always On

G01451970

Courtesy of GENERAL MOTORS CORP.

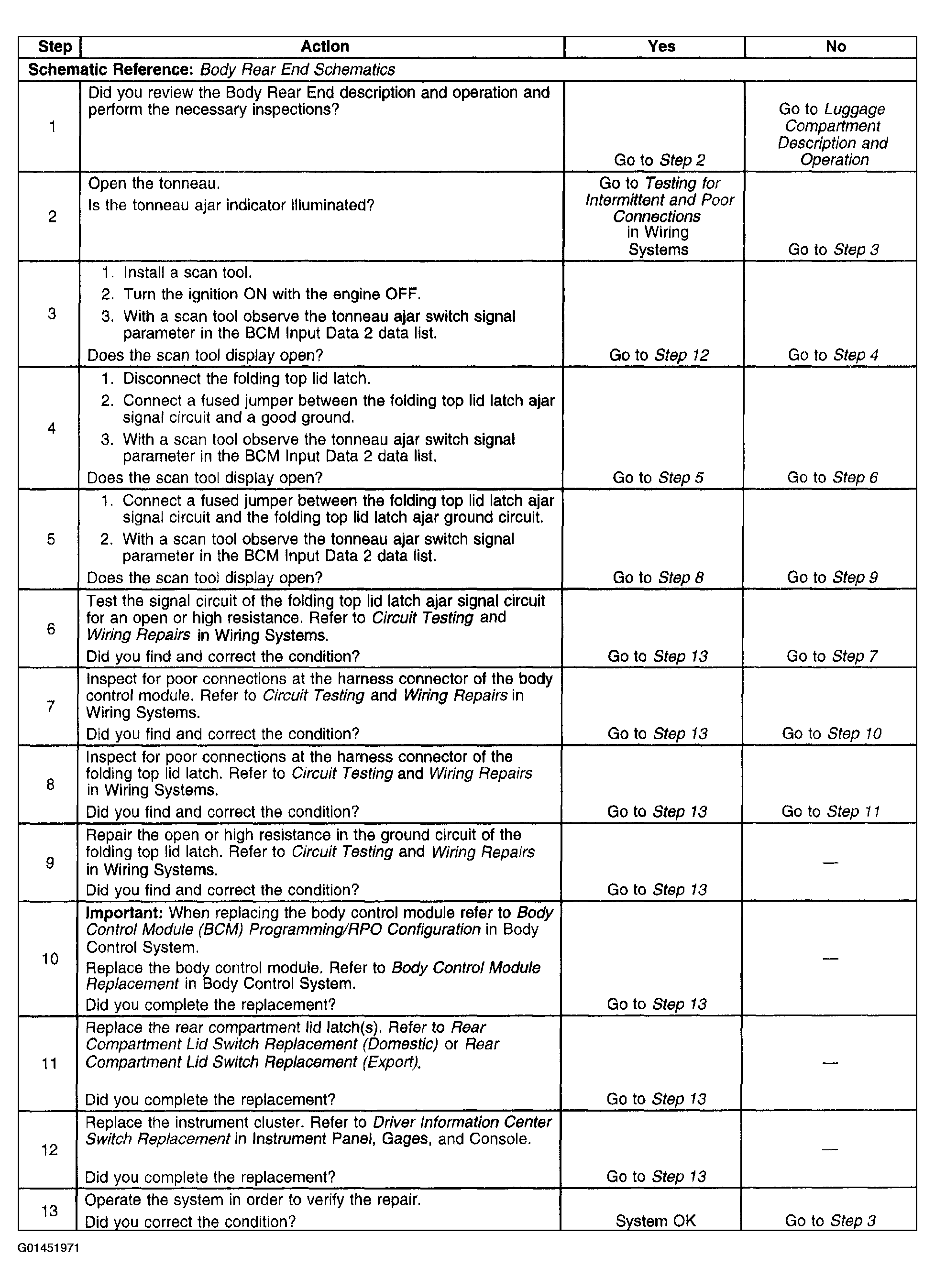

Fig 12: Tonneau Ajar Indicator Inoperative

G01451971

Courtesy of GENERAL MOTORS CORP.
