Fuel Door Lock Release Switch (Domestic) Rear Compartment Lid/Fuel Door Lock

WARNING: This page is about a different car, the 2003 Chevrolet Corvette. However, it is still accessible from the selected car via links, so may be relevant.

Fig 1: Fuel Door Lock Release Switch (Domestic) Rear Compartment Lid/Fuel Door Lock Release Switch (Export)

Courtesy of GENERAL MOTORS CORP.

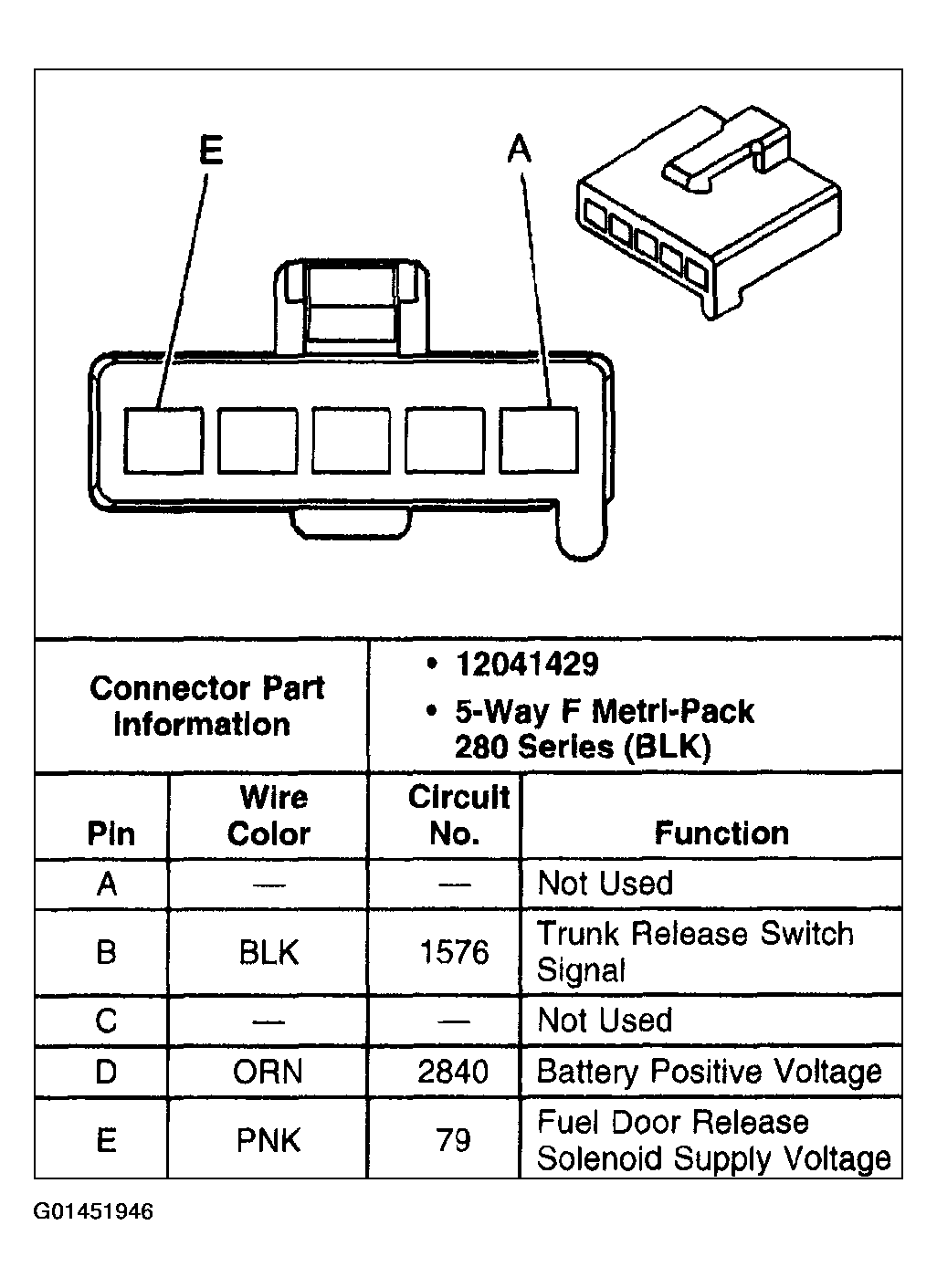

Fig 2: Rear Compartment Lid Latch C1 (Convertible/Hardtop)

Courtesy of GENERAL MOTORS CORP.

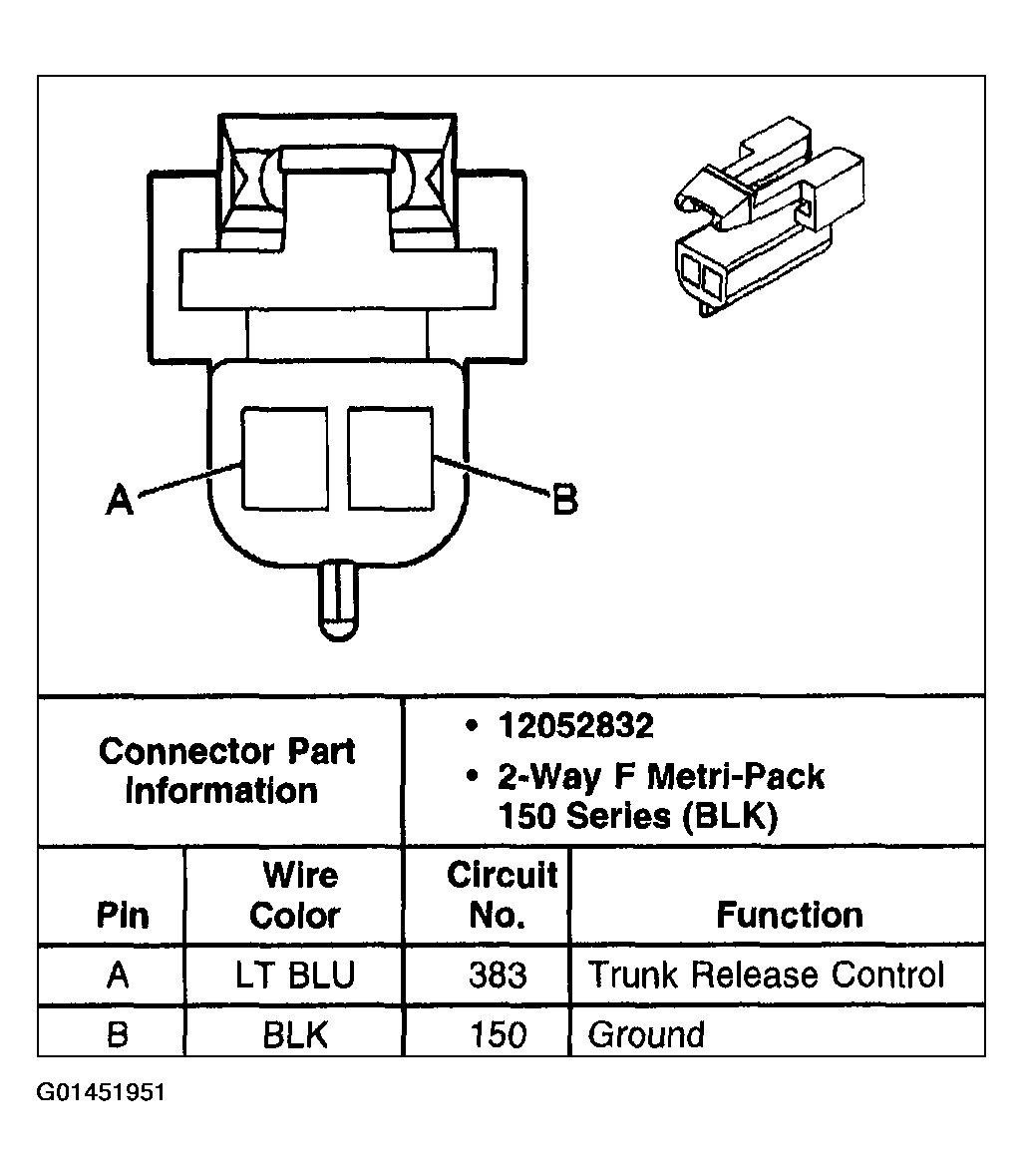

Fig 3: Rear Compartment Lid Latch C2 (Convertible/Hardtop)

Courtesy of GENERAL MOTORS CORP.

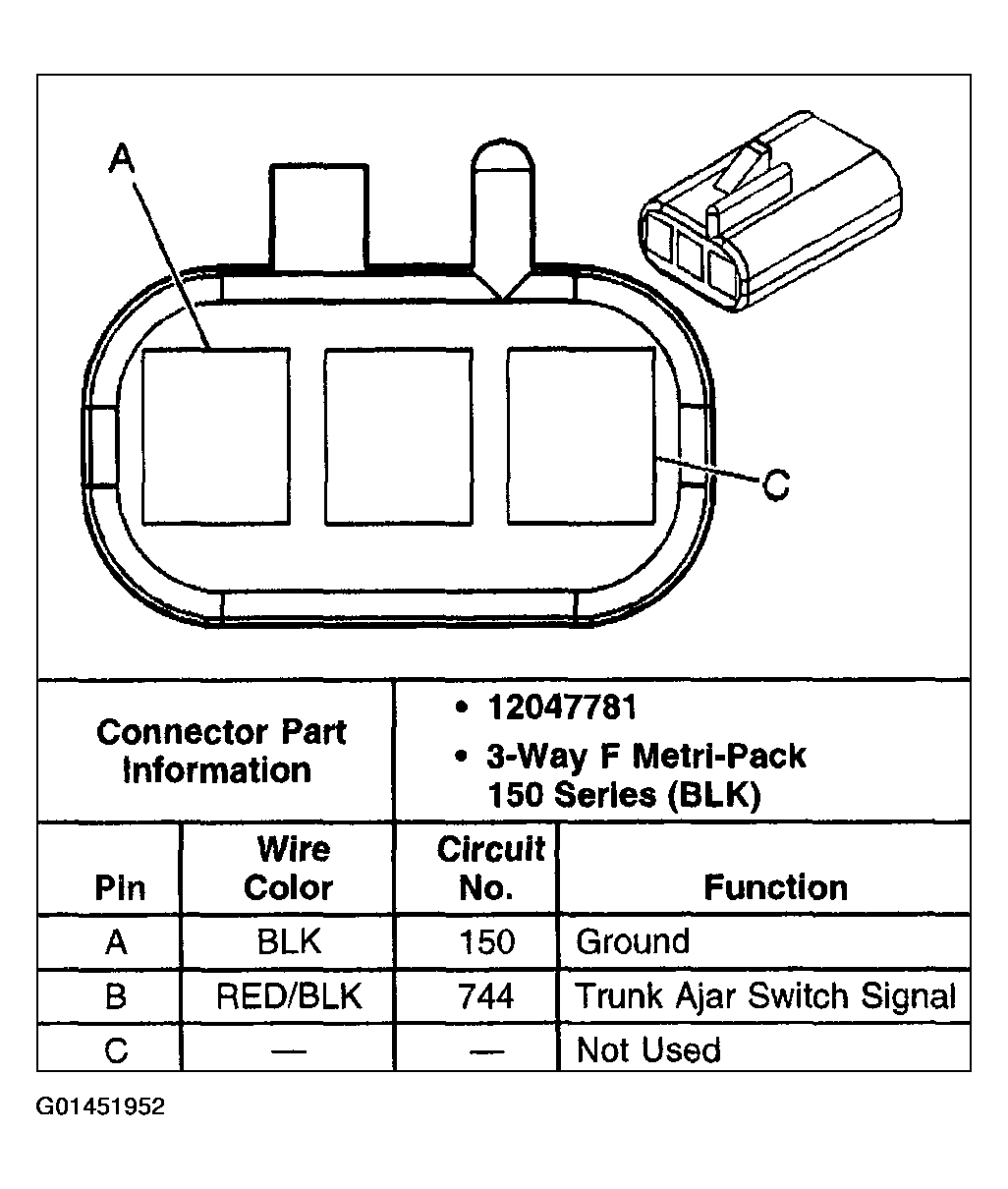

Fig 4: Rear Compartment Lid Latch - Left C1 (Coupe)

Courtesy of GENERAL MOTORS CORP.

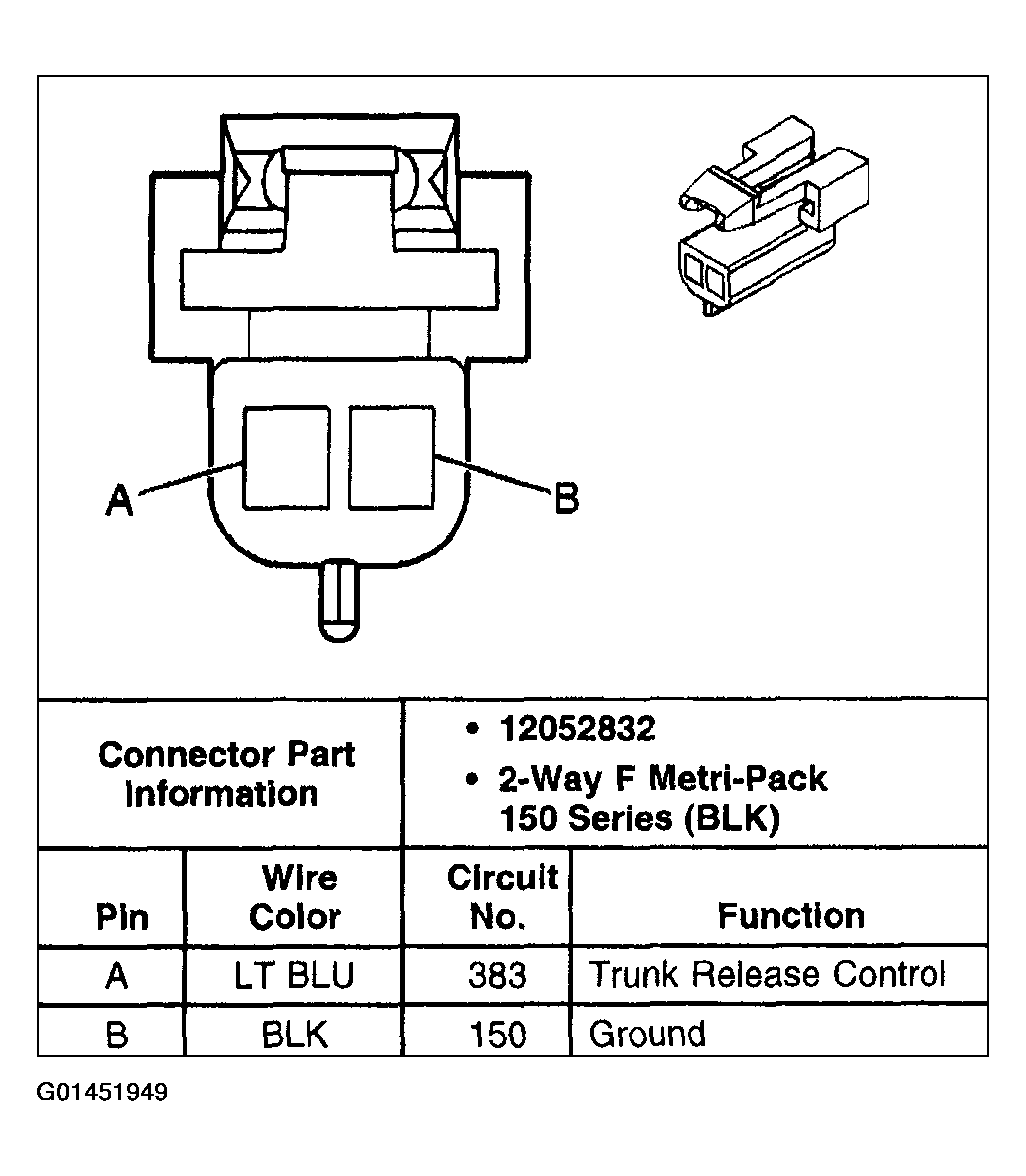

Fig 5: Rear Compartment Lid Latch - Left C2 (Coupe)

Courtesy of GENERAL MOTORS CORP.

Fig 6: Rear Compartment Lid Latch - Right C1 (Coupe)

Courtesy of GENERAL MOTORS CORP.

Fig 7: Rear Compartment Lid Latch - Right C2 (Coupe)

Courtesy of GENERAL MOTORS CORP.
