Removal Procedure

WARNING: This page is about a different car, the 2003 Chevrolet Corvette. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the windshield side garnish moldings.
    1. Grasp the windshield side garnish molding.
    2. Pull the molding with its retainers from the windshield frame.

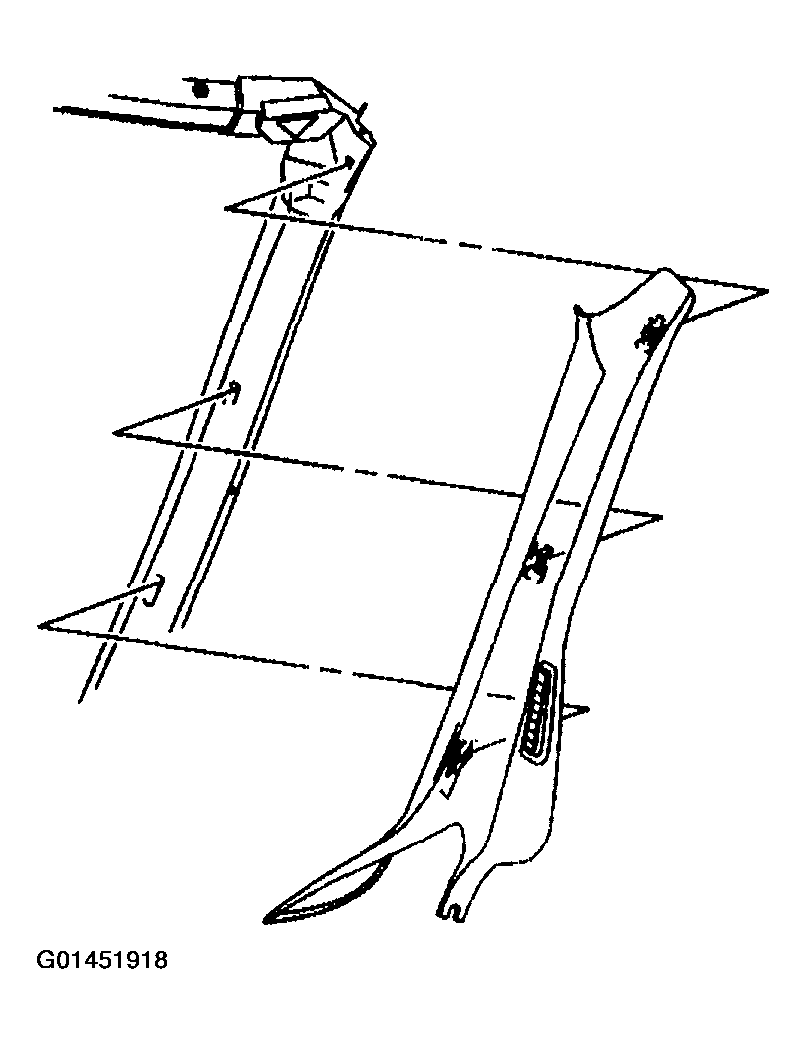

      Fig 1: Windshield Side Garnish Moldings
      G01451918Courtesy of GENERAL MOTORS CORP.
  2. Remove the inside rearview mirror.
    1. Disconnect the inside rearview mirror electrical connector.
    2. Loosen the mirror mount tension screw.
    3. Slide the mirror up off the mirror bracket.
      Fig 2: Inside Rearview Mirror
      G01451919Courtesy of GENERAL MOTORS CORP.
  3. Remove the sunshades. Refer to SUNSHADE REPLACEMENT  in Interior Trim.

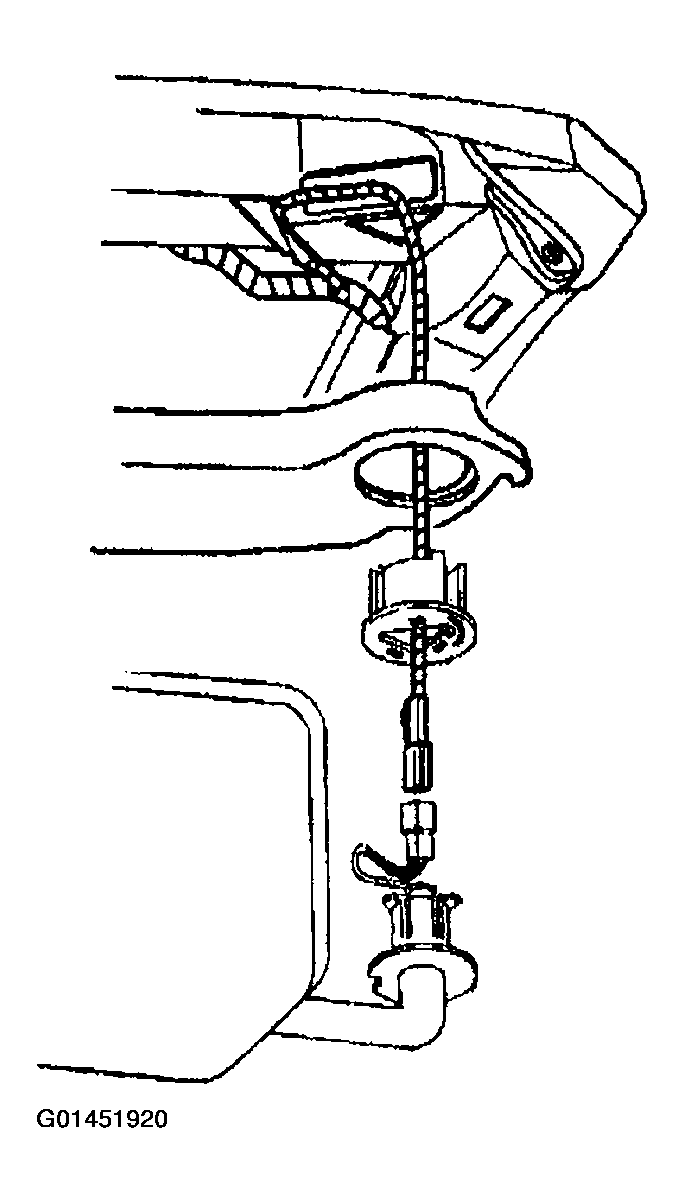

    Fig 3: Sunshades
    G01451920Courtesy of GENERAL MOTORS CORP.
  4. Grasp the upper garnish molding and pull the garnish molding with its retainers from the windshield frame.
    Fig 4: Pulling Garnish Molding With Retainers From Windshield Frame
    G01451921Courtesy of GENERAL MOTORS CORP.
