Removal Procedure

WARNING: This page is about a different car, the 2003 Chevrolet Corvette. However, it is still accessible from the selected car via links, so may be relevant.
  1. Open the upper guide bolt cover by prying up at the belt side of the cover.
  2. Remove the nut attaching the upper guide to the seat belt guide bracket stud.
  3. Remove the seatbelt upper guide from the stud.

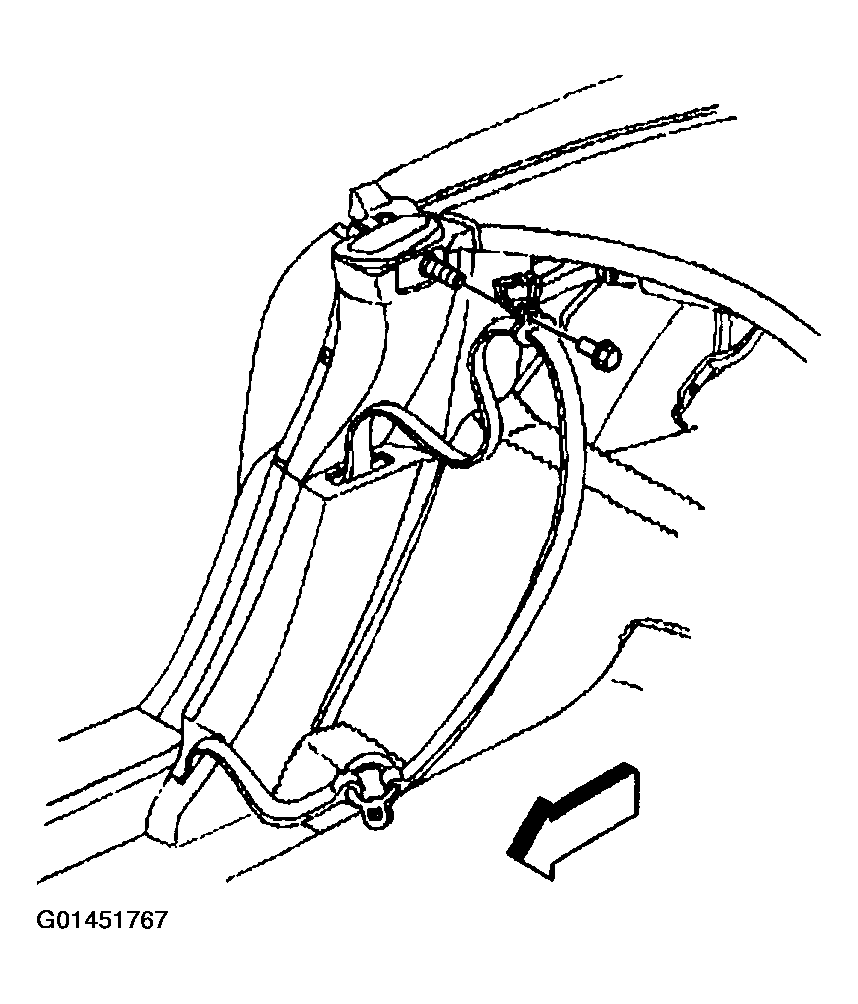

    Fig 1: Removing Seatbelt Upper Guide From Stud
    G01451767Courtesy of GENERAL MOTORS CORP.
  4. Remove the spacer and washer from the stud.
  5. Remove the screw attaching the lock pillar upper trim.
  6. Remove the upper trim.

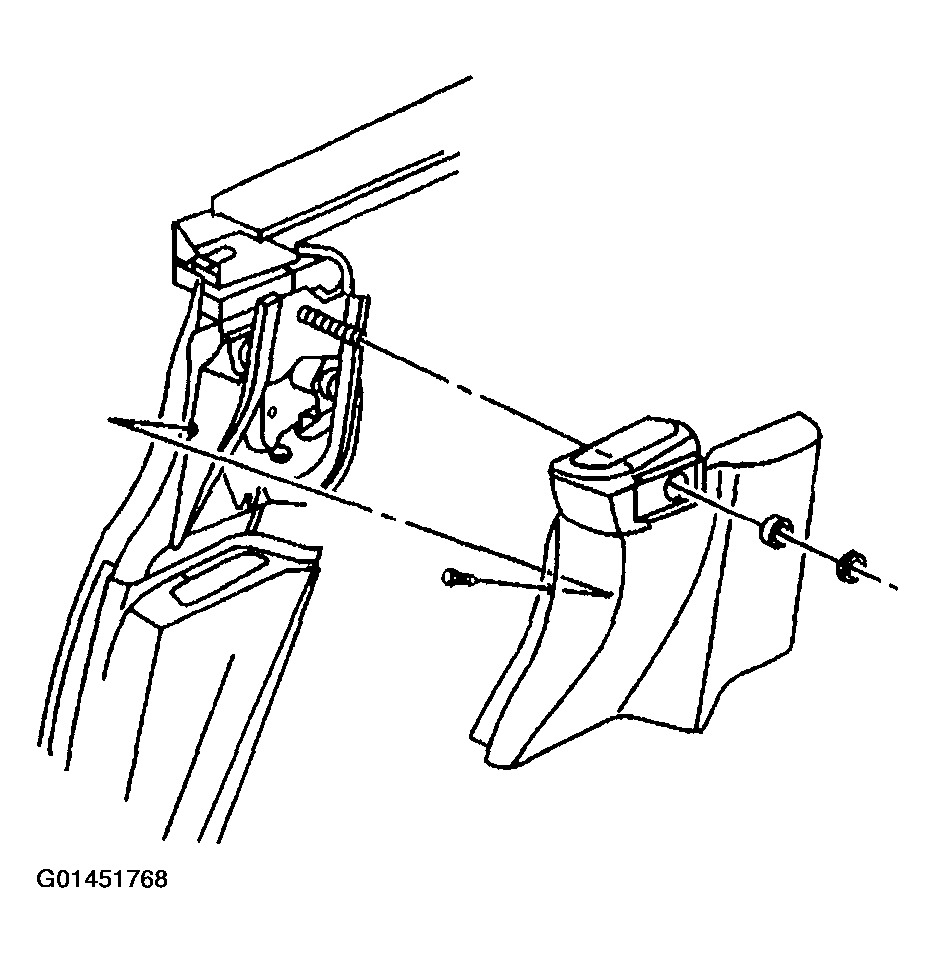

    Fig 2: Upper Trim
    G01451768Courtesy of GENERAL MOTORS CORP.
