Installation Procedure

WARNING: This page is about a different car, the 2003 Chevrolet Corvette. However, it is still accessible from the selected car via links, so may be relevant.

Route the seat belt through the lock pillar trim panel.
Position the lock pillar trim panel under the rear compartment side trim panel.
Position the lock pillar trim panel retainers to the holes in the lock pillar and the side rail.

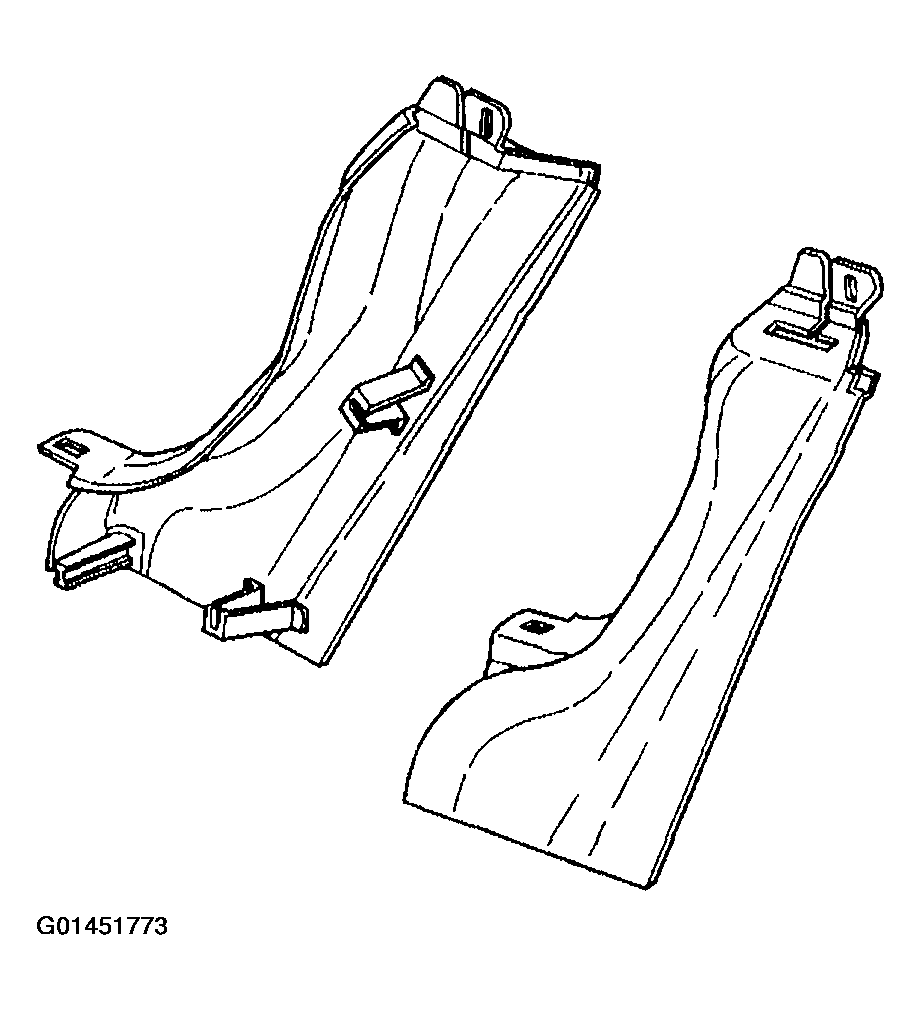

Fig 1: Lock Pillar Trim
Courtesy of GENERAL MOTORS CORP.
Push in on the panel securing the retainers.
Install the sill plate. Refer to DOOR SILL PLATE REPLACEMENT .

Fig 2: Pushing Lock Pillar Trim Panel With Retainers Into Lock Pillar Side Rail
Courtesy of GENERAL MOTORS CORP.
