Removal Procedure

WARNING: This page is about a different car, the 2003 Chevrolet Corvette. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the fastener attaching the top of the upper trim panel and the windshield side garnish molding to the hinge pillar.
  2. Unsnap the hinge pillar upper trim from the hinge pillar.
  3. Remove the hinge pillar upper trim.
  4. Remove the lower hinge pillar trim if needed. The lower trim is part of the sill plate. Refer to DOOR SILL PLATE REPLACEMENT  .

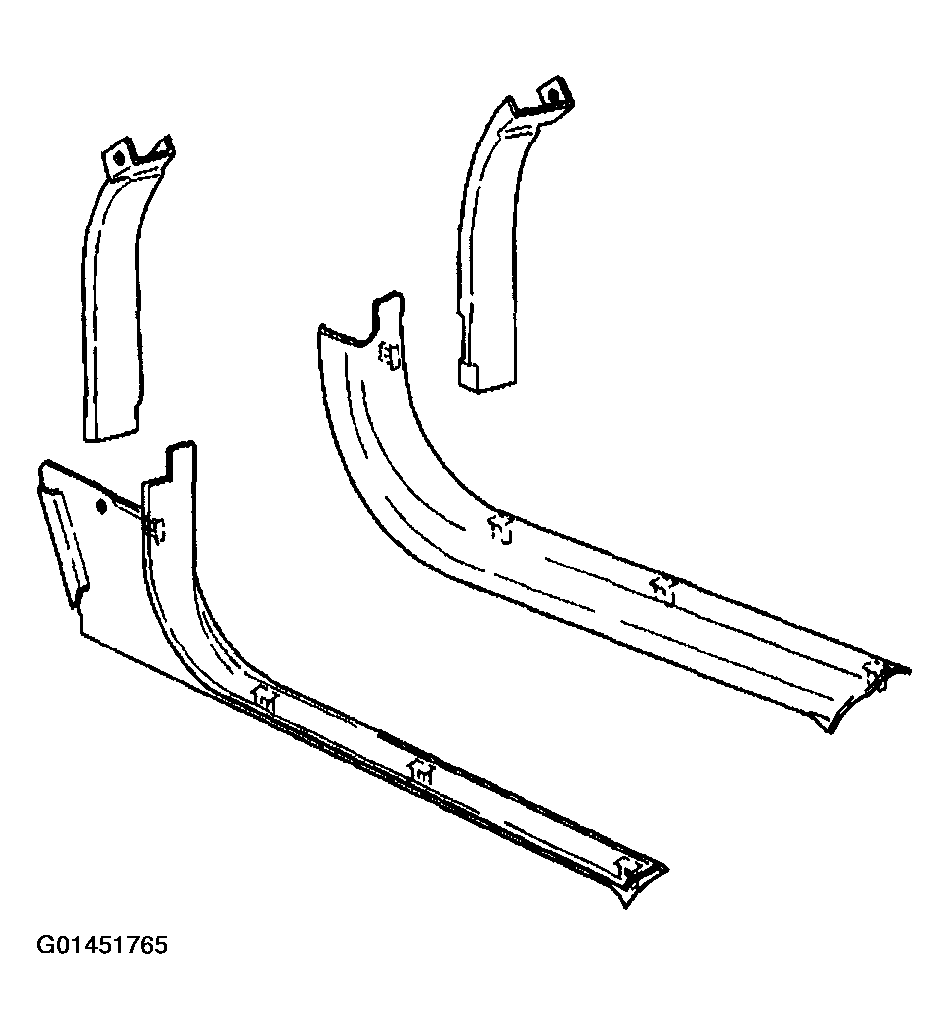

    Fig 1: Unsnapping Hinge Pillar Upper Trim From Hinge Pillar
    G01451765Courtesy of GENERAL MOTORS CORP.
