Installation Procedure

WARNING: This page is about a different car, the 2003 Chevrolet Corvette. However, it is still accessible from the selected car via links, so may be relevant.
  1. Snap the hinge pillar trim to the hinge pillar.
  2. Install the fastener attaching the top of the trim.
  3. Install the lower trim panel (sill plate) if removed. Refer to DOOR SILL PLATE REPLACEMENT  .

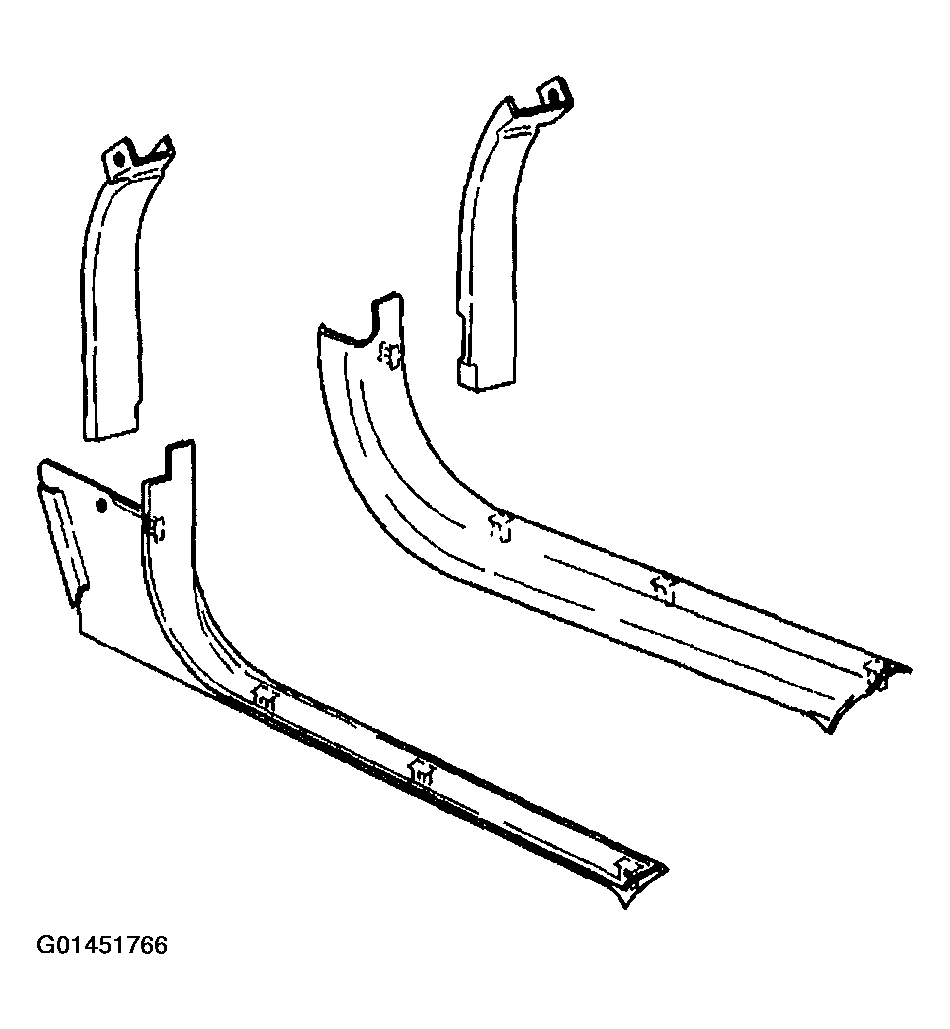

    Fig 1: Snapping Hinge Pillar Upper Trim To Hinge Pillar
    G01451766Courtesy of GENERAL MOTORS CORP.
