Installation Procedure

WARNING: This page is about a different car, the 2003 Chevrolet Corvette. However, it is still accessible from the selected car via links, so may be relevant.
  1. Position the side trim panel to the vehicle.
  2. Secure the panel to the roof bow.
  3. Secure the side trim panel to the lock pillar.
  4. Secure the side trim panel to the rear compartment support with a push in retainer.
  5. Secure the side trim panel to the side of the roof.

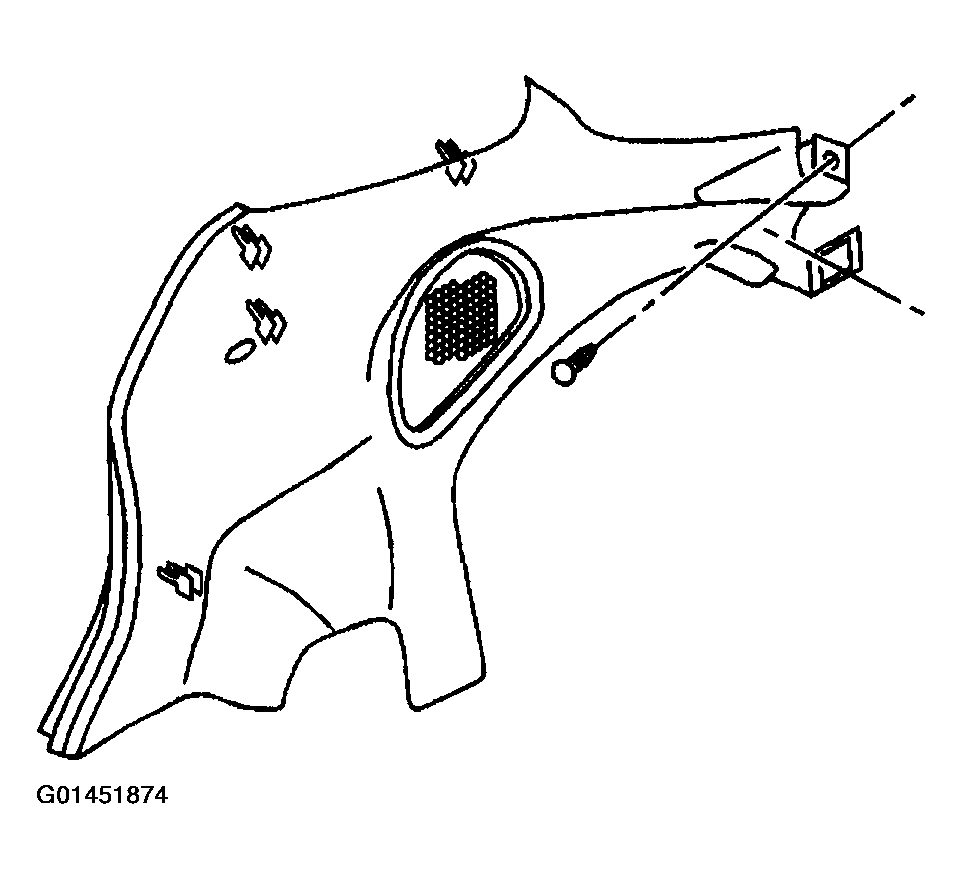

    Fig 1: Side Trim Panel
    G01451874Courtesy of GENERAL MOTORS CORP.
    NOTE: Refer to FASTENER NOTICE in Cautions and Notices.
  6. Install the seat belt upper guide bolt and cover.

    Tighten

    Tighten the seat belt guide bolt to 41 N.m (31 lb ft).

  7. Snap the cover closed.

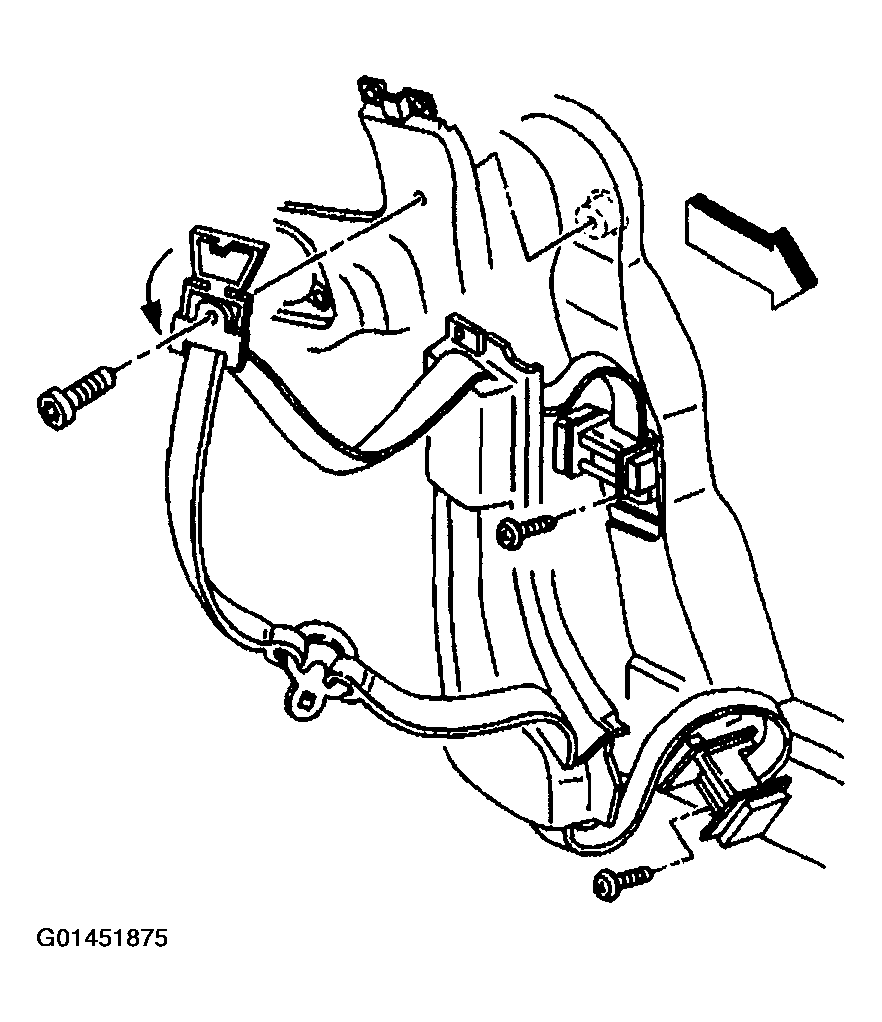

    Fig 2: Seat Belt Upper Guide & Bolt
    G01451875Courtesy of GENERAL MOTORS CORP.
  8. Install the rear compartment support trim panel.
    Fig 3: Rear Compartment Support Trim Panel
    G01451876Courtesy of GENERAL MOTORS CORP.
  9. Align the rear window lower garnish molding retainers to the holes in the roof panel.
  10. Push firmly on the garnish molding seating the retainers.
  11. Install the push pins securing the ends of the garnish molding.
    Fig 4: Rear Window Lower Garnish Molding
    G01451877Courtesy of GENERAL MOTORS CORP.
