Removal Procedure

WARNING: This page is about a different car, the 2003 Chevrolet Corvette. However, it is still accessible from the selected car via links, so may be relevant.
  1. Open and support the rear lift window.

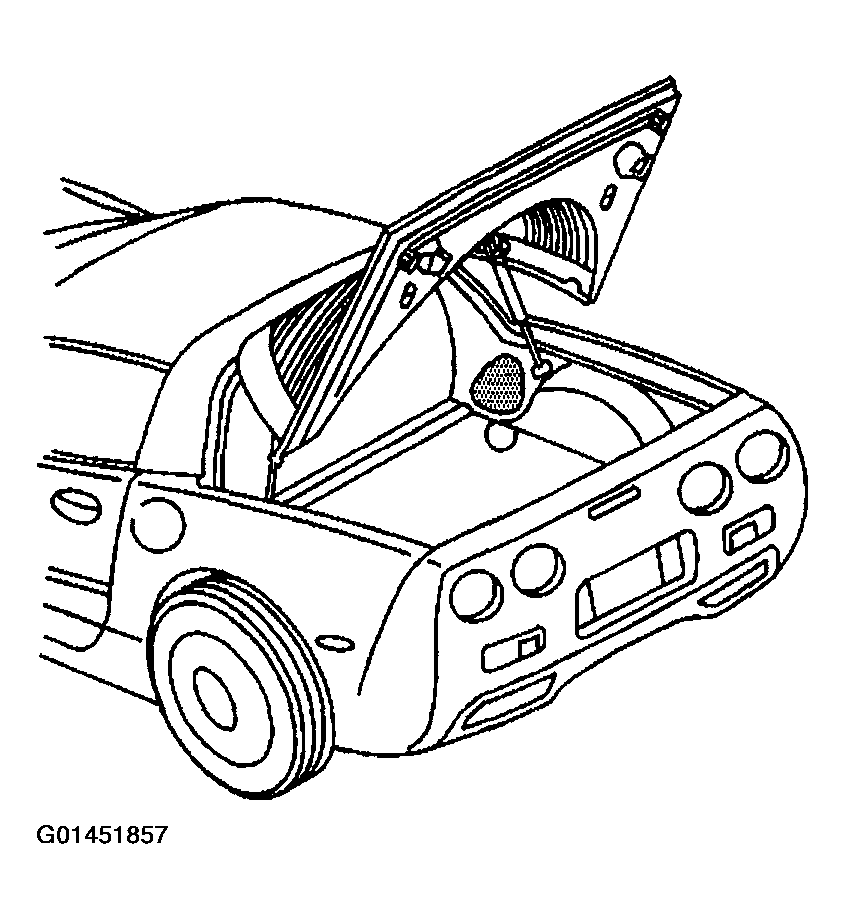

    Fig 1: Opening & Supporting Rear Lift Window
    G01451857Courtesy of GENERAL MOTORS CORP.
  2. Remove the strut. Refer to STRUT REPLACEMENT - REAR LIFT WINDOW PANEL in Body Rear End.

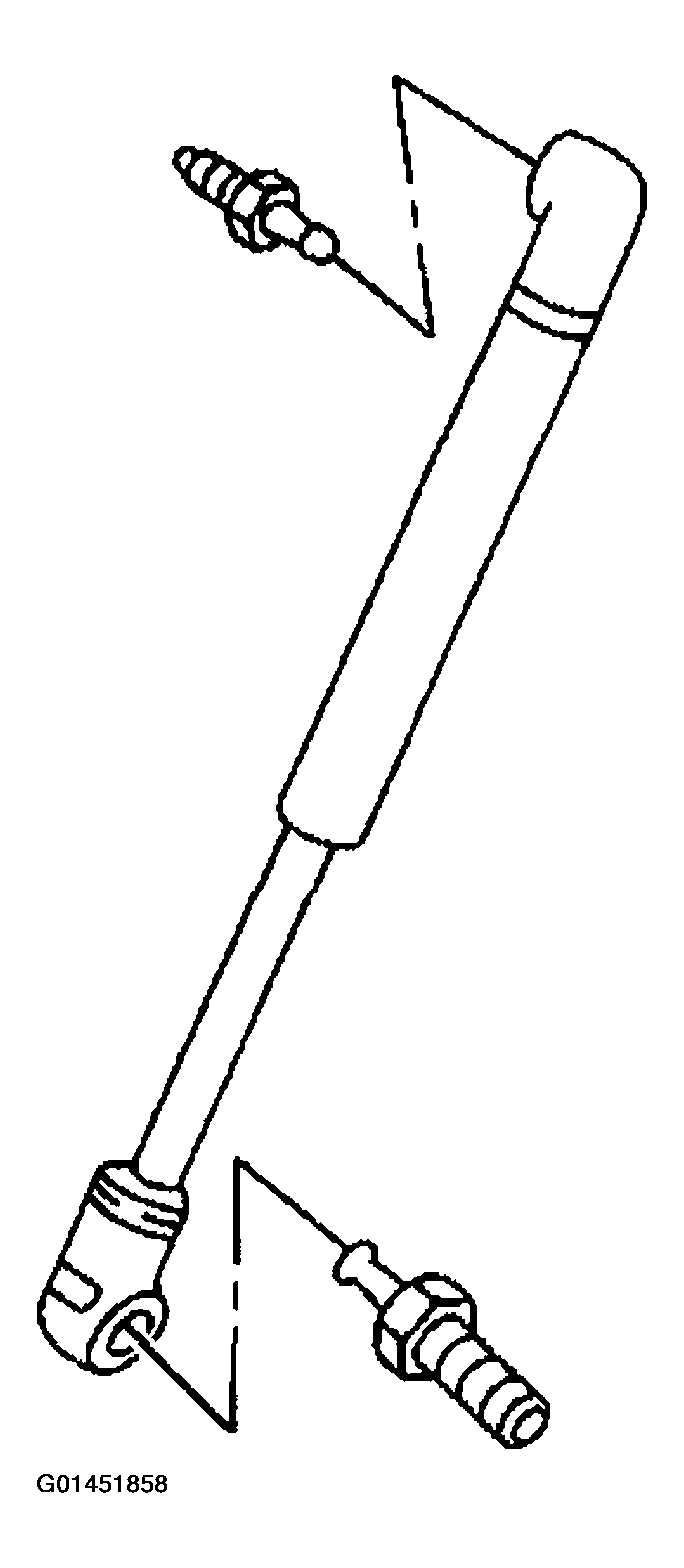

    Fig 2: Strut
    G01451858Courtesy of GENERAL MOTORS CORP.
  3. Uncover the upper seat belt guide bolt by pushing up at the belt edge of the bolt cover.
  4. Remove the seat belt guide bolt.

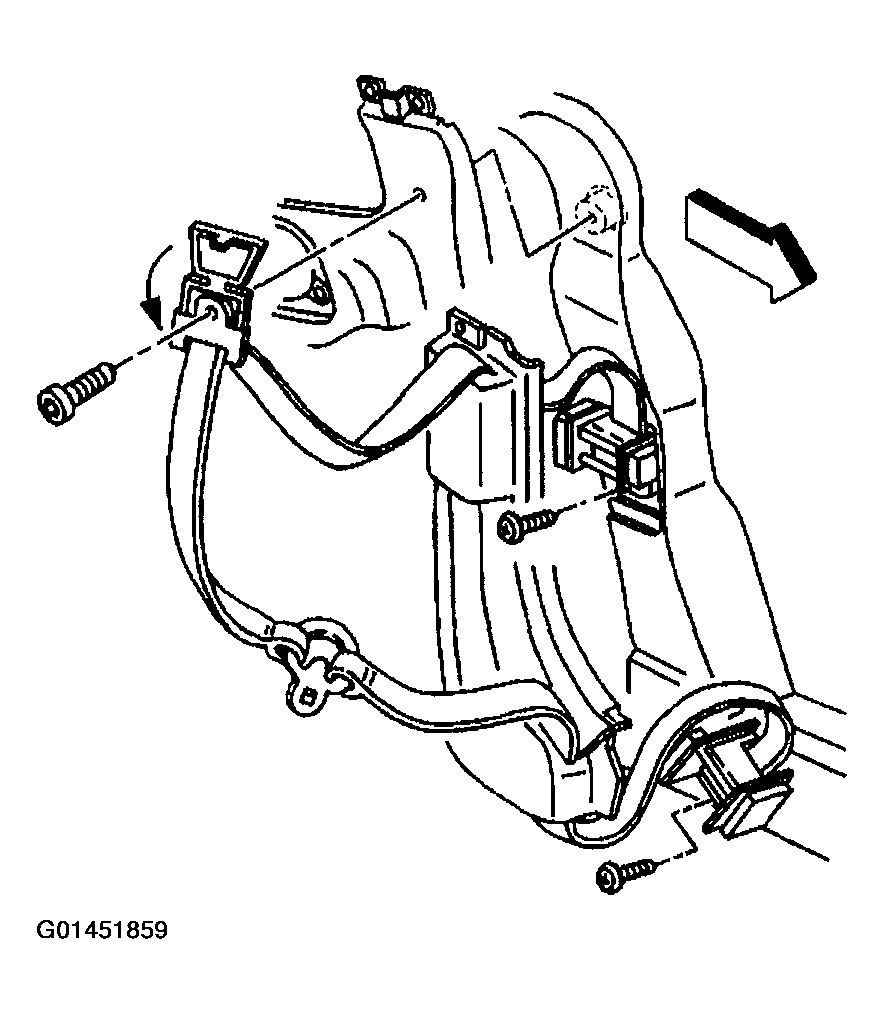

    Fig 3: Seat Belt Guide & Bolt
    G01451859Courtesy of GENERAL MOTORS CORP.
  5. Remove the roof lift off panel.
  6. Remove the rear roof bow interior trim panel. Refer to TRIM PANEL REPLACEMENT - REAR ROOF BOW  .
    Fig 4: Rear Roof Bow Interior Trim Panel
    G01451860Courtesy of GENERAL MOTORS CORP.
  7. Remove the fasteners securing the rear roof bow weatherstrip to the lock pillar.

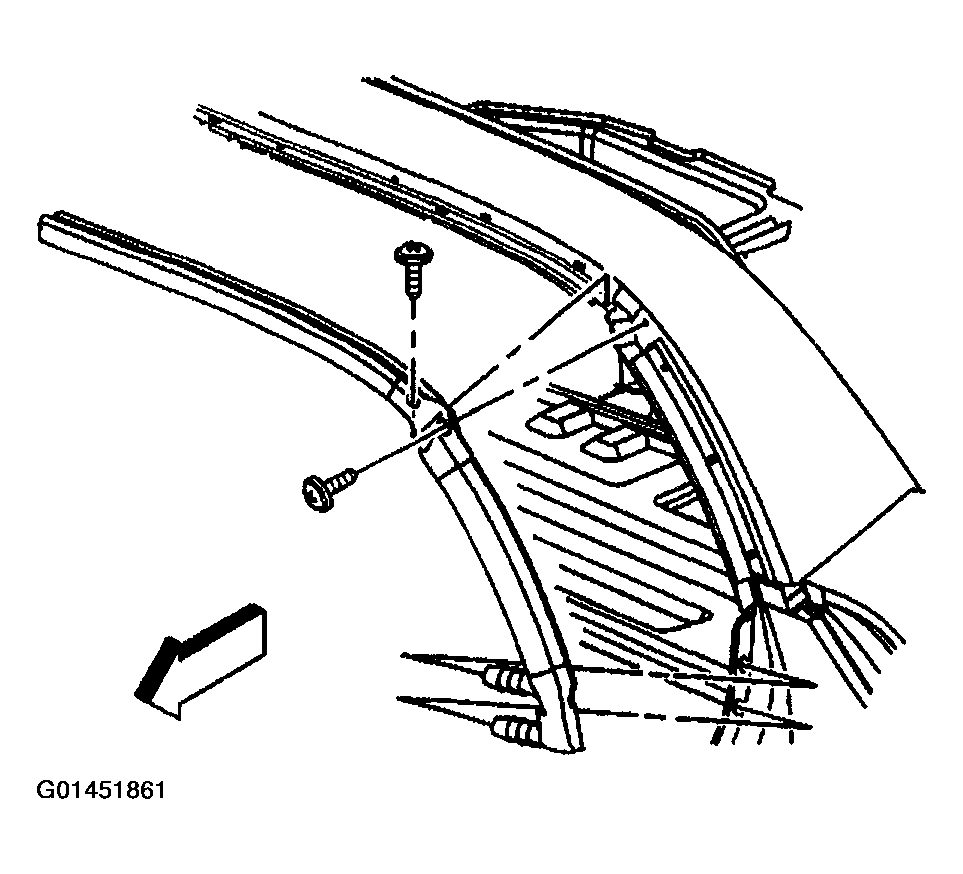

    Fig 5: Removing Rear Roof Bow Weatherstrip From Lock Pillar
    G01451861Courtesy of GENERAL MOTORS CORP.
  8. Remove the push-in fastener securing the top of the side trim panel.
  9. Remove the speaker grille from the side trim panel.
    1. Pry out the middle of the forward edge first.
    2. Pry out the top or the middle of the rear edge.
    3. Lift the grille up out of the panel.
  10. Remove the fir tree push-in retainer from the rear of the grille opening.
  11. Remove the side trim panel.

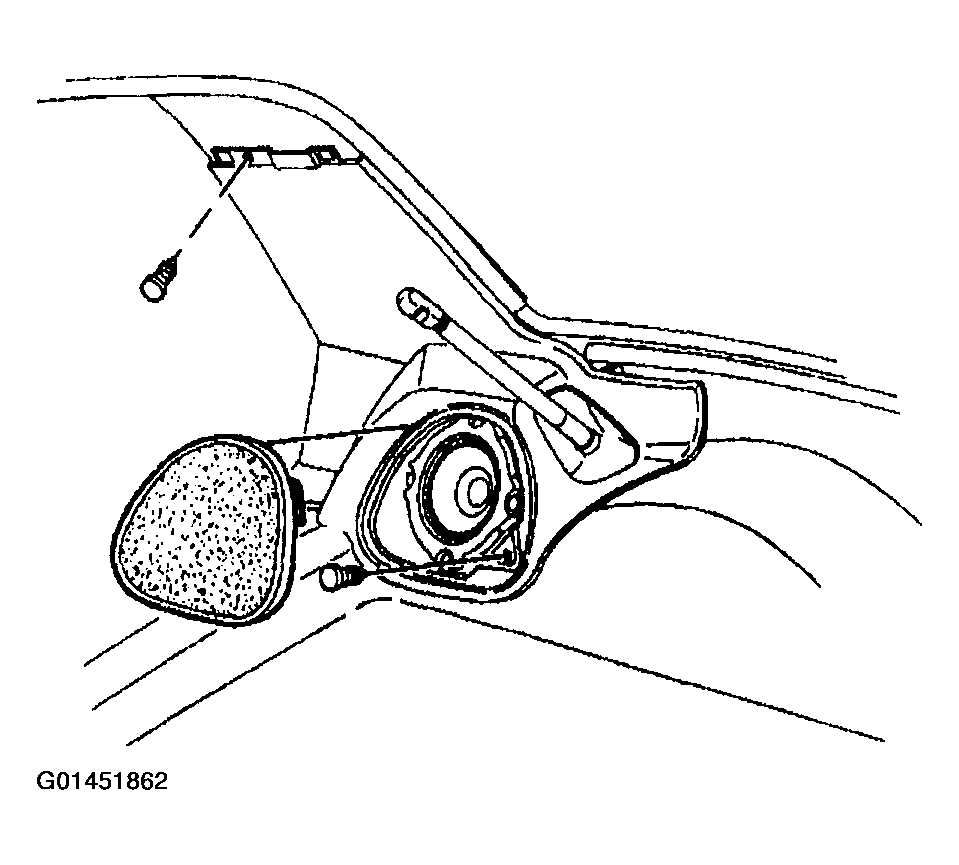

    Fig 6: Removing Speaker Grille From Side Trim Panel
    G01451862Courtesy of GENERAL MOTORS CORP.
