Installation Procedure

WARNING: This page is about a different car, the 2003 Chevrolet Corvette. However, it is still accessible from the selected car via links, so may be relevant.

Position the side trim panel to the lock pillar.
Secure the panel with the push-in fastener and hook and loop fasteners.
Install the fir tree push-in retainer to the rear of the speaker grill opening.
Insert the lower tab of the grille into the opening and snap the grille in place.

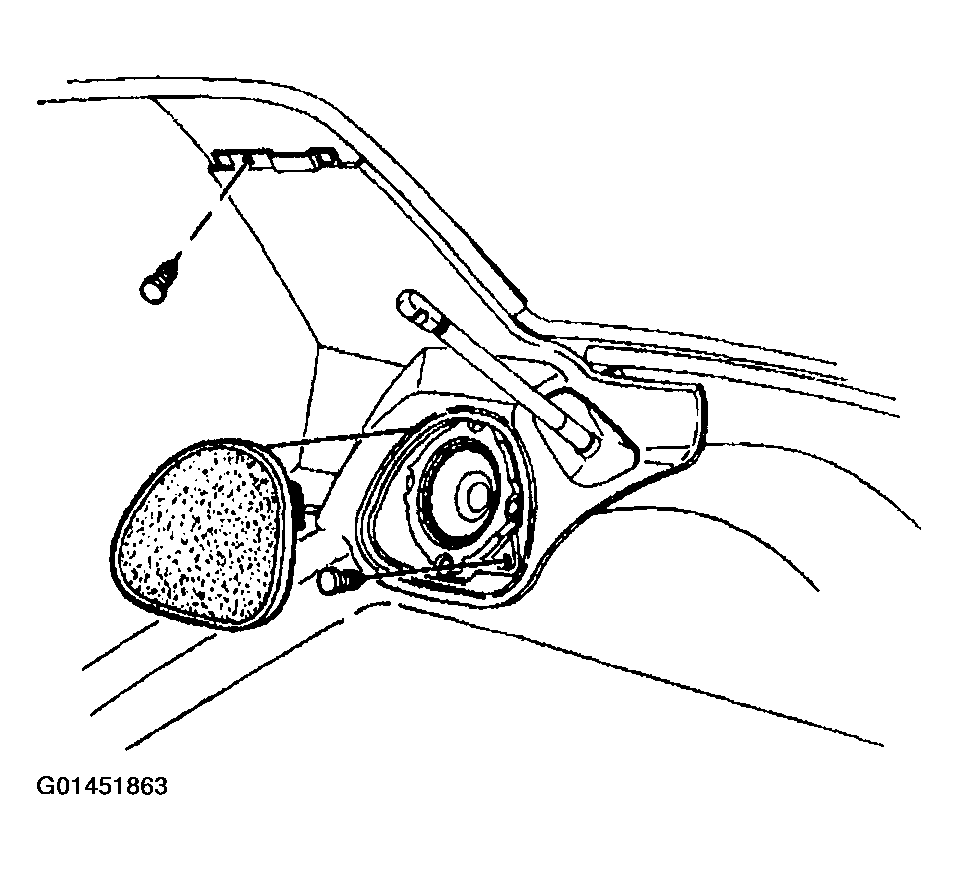

Fig 1: Installing Speaker Grille To Side Trim Panel
Courtesy of GENERAL MOTORS CORP.

NOTE: Refer to FASTENER NOTICE in Cautions and Notices.
Install the seat belt guide bolt and cover.
Tighten

Tighten the seat belt guide bolt to 46 N.m (34 lb ft).

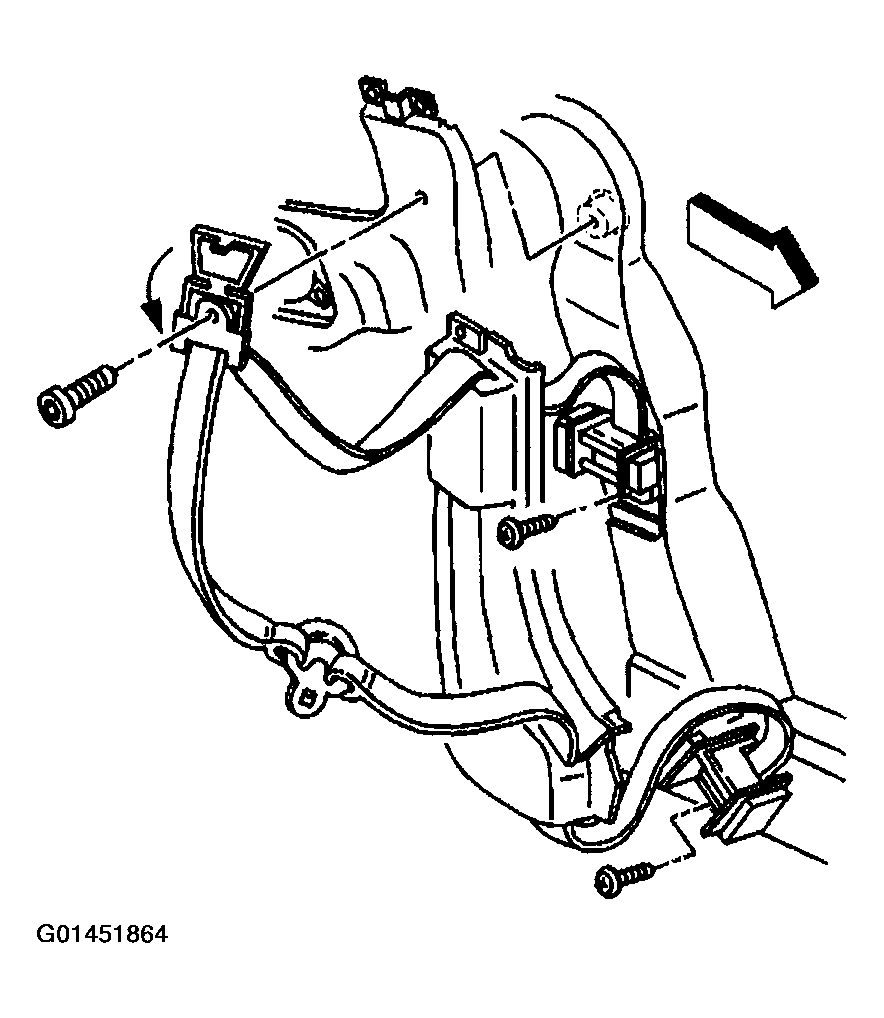

Fig 2: Seat Belt Guide Bolt & Cover
Courtesy of GENERAL MOTORS CORP.
Install the strut. Refer to STRUT REPLACEMENT - REAR LIFT WINDOW PANEL in Body Rear End.

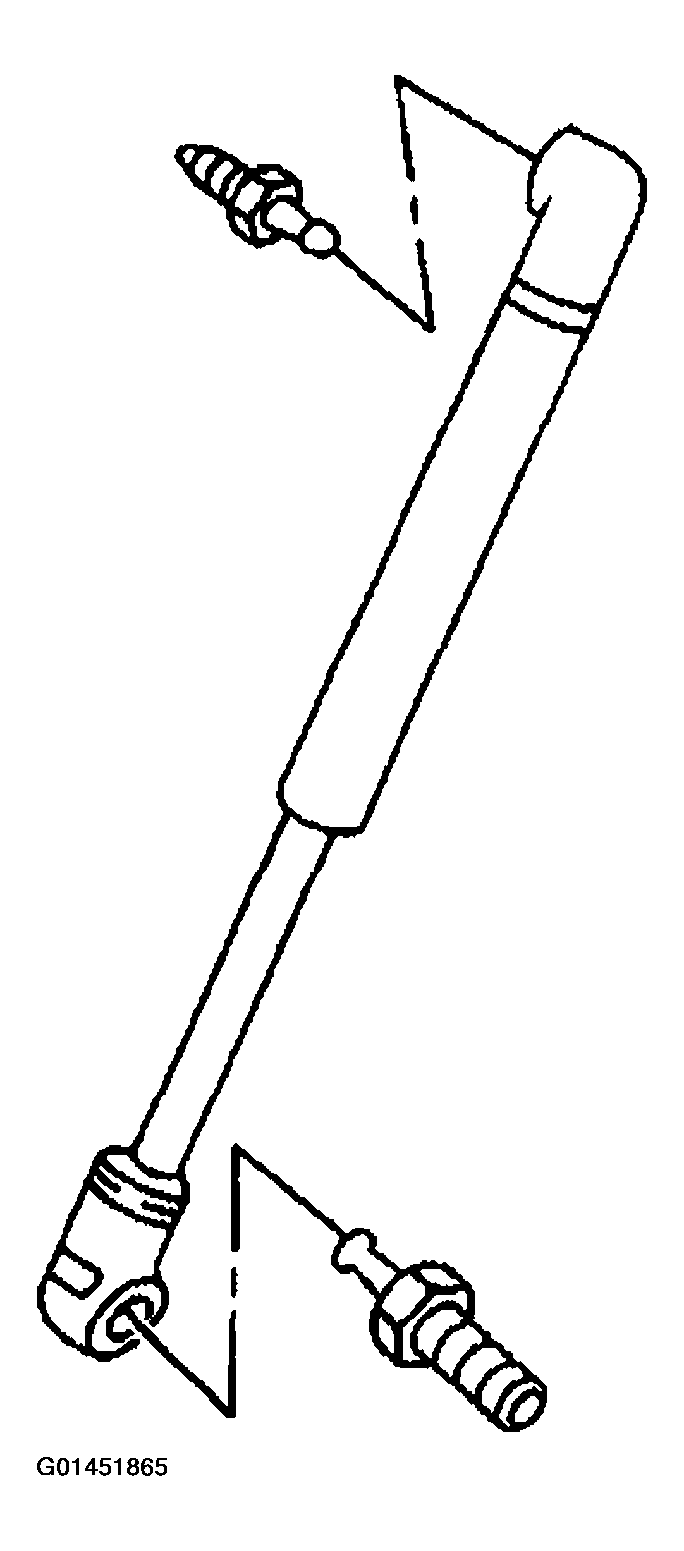

Fig 3: Strut
Courtesy of GENERAL MOTORS CORP.
Install the push-in fasteners attaching the weatherstrip to the lock pillar.

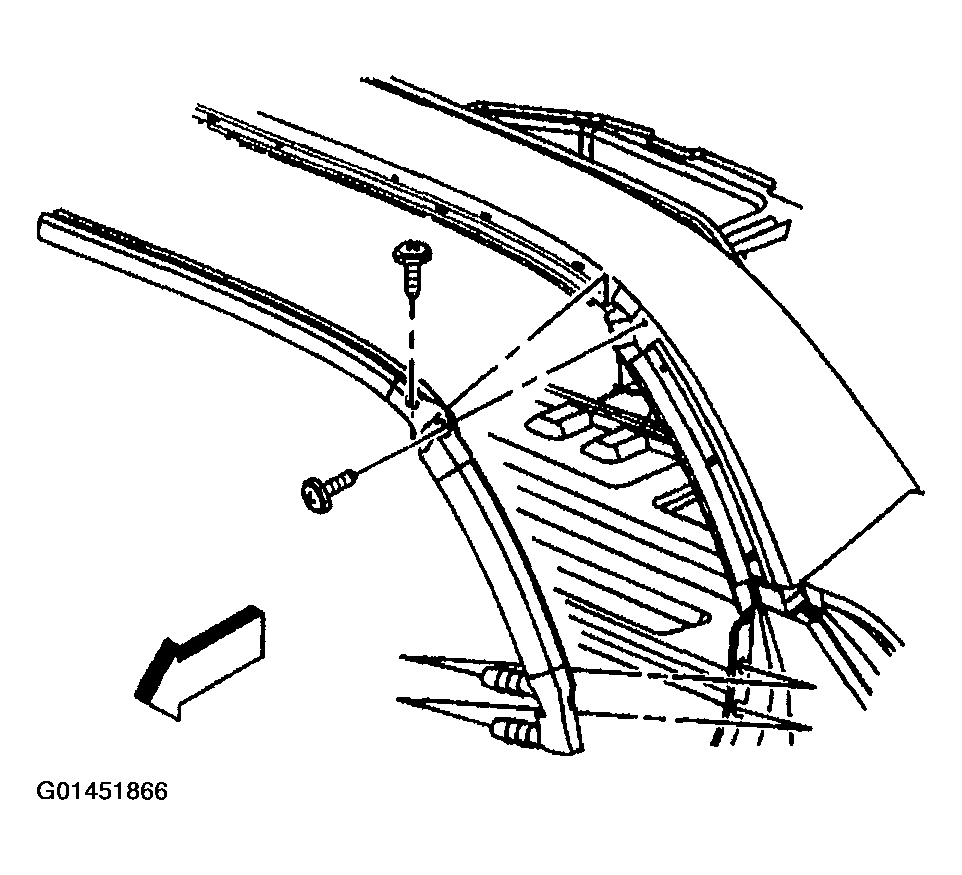

Fig 4: Installing Push-In Fasteners Attaching Weatherstrip To Lock Pillar
Courtesy of GENERAL MOTORS CORP.
Install the rear roof bow interior trim panel and the roof lift off panel. Refer to TRIM PANEL REPLACEMENT - REAR ROOF BOW .
Remove the support and close the lift window.

Fig 5: Rear Roof Bow Interior Trim Panel
Courtesy of GENERAL MOTORS CORP.
