Removal Procedure

WARNING: This page is about a different car, the 2003 Chevrolet Corvette. However, it is still accessible from the selected car via links, so may be relevant.
  1. Open the folding top stowage lid.
  2. Remove the push pin from the front of the side trim panel.
  3. Pull the panel from the housing.

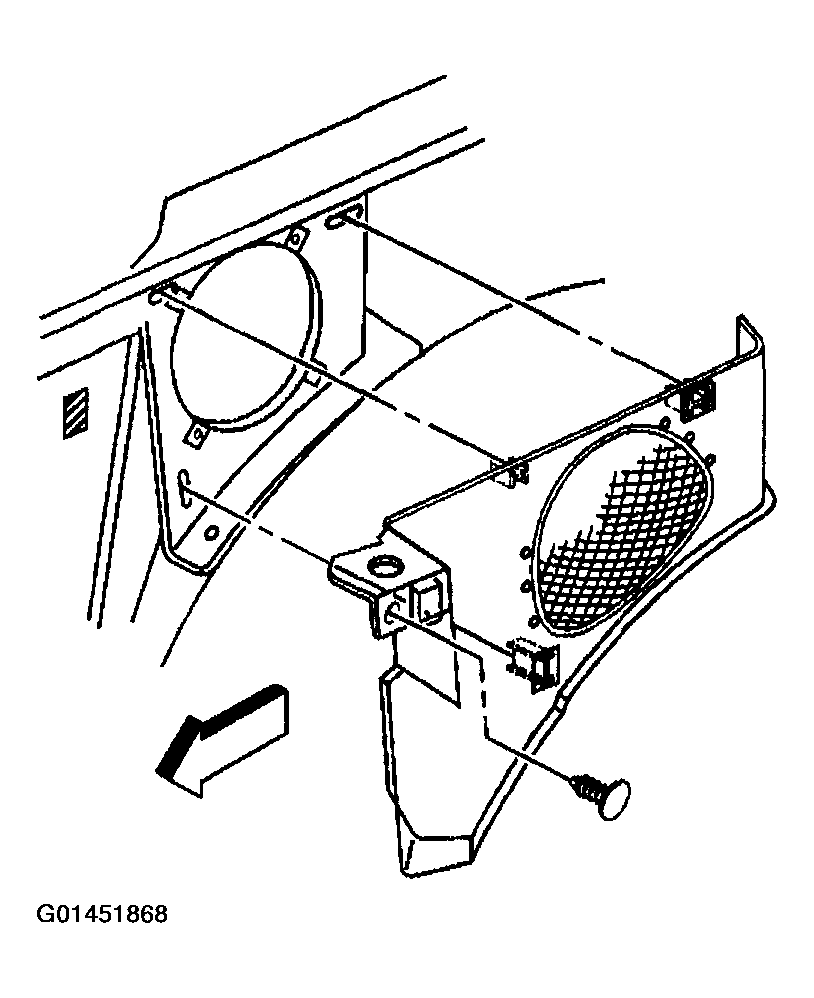

    Fig 1: Removing Side Trim Panel From Housing
    G01451868Courtesy of GENERAL MOTORS CORP.
