Installation Procedure

WARNING: This page is about a different car, the 2003 Chevrolet Corvette. However, it is still accessible from the selected car via links, so may be relevant.
  1. Position the side trim panel with the front edge of the panel under the lock pillar flange.
  2. Install the push pin attaching the panel to the lock pillar.
  3. Align the panel clips to the holes in the housing.
  4. Press the panel at the clip locations to secure the clips.

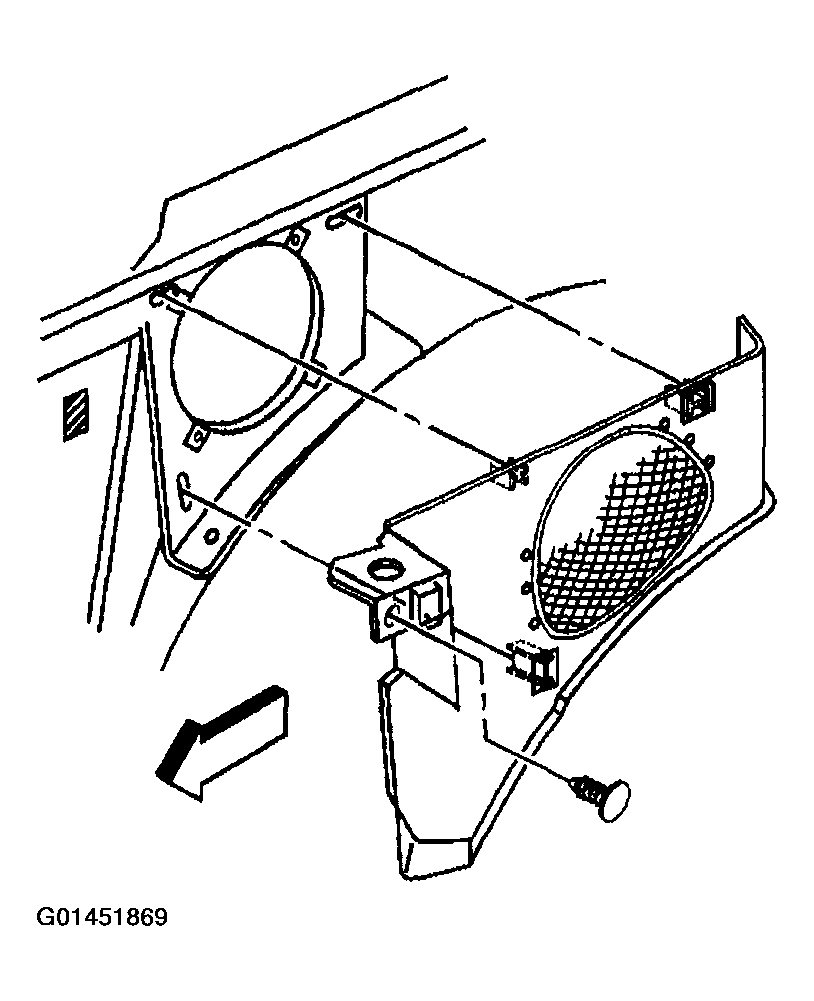

    Fig 1: Installing Side Trim Panel To Housing
    G01451869Courtesy of GENERAL MOTORS CORP.
