Removal Procedure

WARNING: This page is about a different car, the 2003 Chevrolet Corvette. However, it is still accessible from the selected car via links, so may be relevant.

Remove the rear floor side stowage compartment cover.
Remove the rear cargo net, if equipped.
Unscrew the rear cargo net attachment nut.

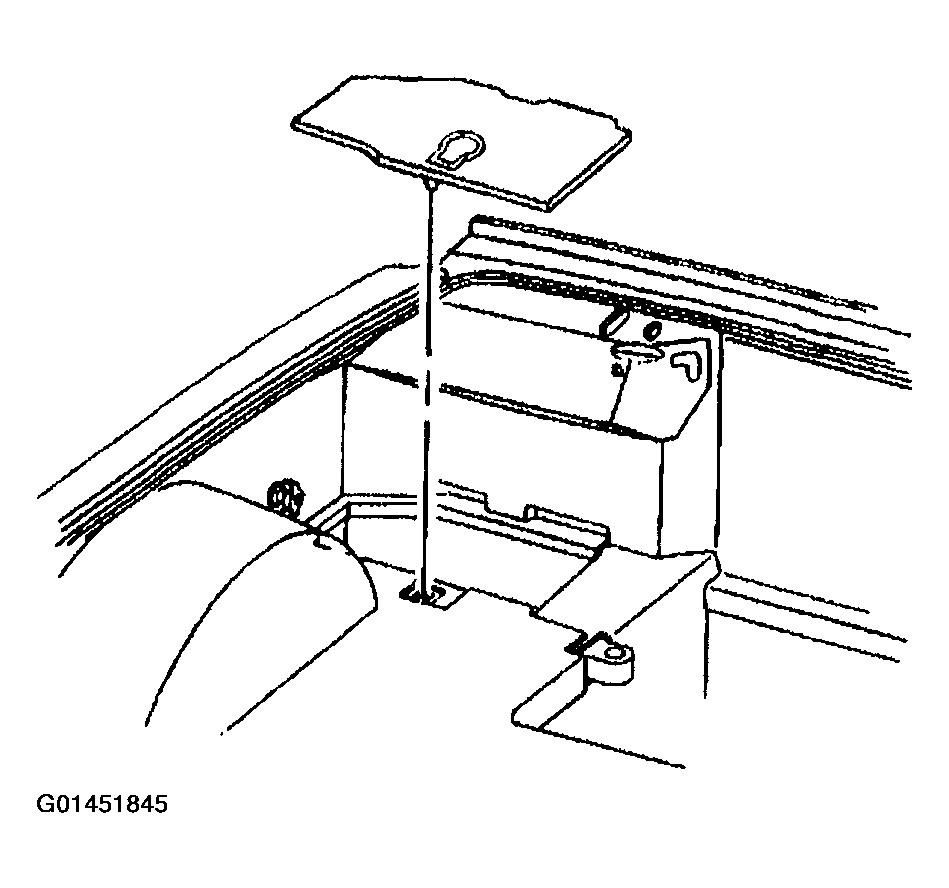

Fig 1: Rear Floor Side Stowage Compartment Cover
Courtesy of GENERAL MOTORS CORP.
Slide the cargo lamp up out of the trim panel.

Fig 2: Sliding Cargo Lamp Up Out Of Trim Panel
Courtesy of GENERAL MOTORS CORP.
Pull the corner carpet trim panel loose.
Remove the panel by sliding the carpet panel toward the center of the vehicle.

Fig 3: Corner Carpet Trim Panel
Courtesy of GENERAL MOTORS CORP.
