Removal Procedure

WARNING: This page is about a different car, the 2003 Chevrolet Corvette. However, it is still accessible from the selected car via links, so may be relevant.
  1. Tilt the sunshade down toward the windshield.
  2. Insert a flat head screwdriver blade into the slot in the sunshade inner bezel.
  3. Using the screwdriver against the elbow of the sunshade arm for leverage pull down on the sunshade arm while rotating the sunshade outboard until the sunshade stops. (the first tab disengages).
  4. Push up on the sunshade and continue rotating the sunshade outboard until the sunshade with the inner bezel disengages from the mounting bezel.

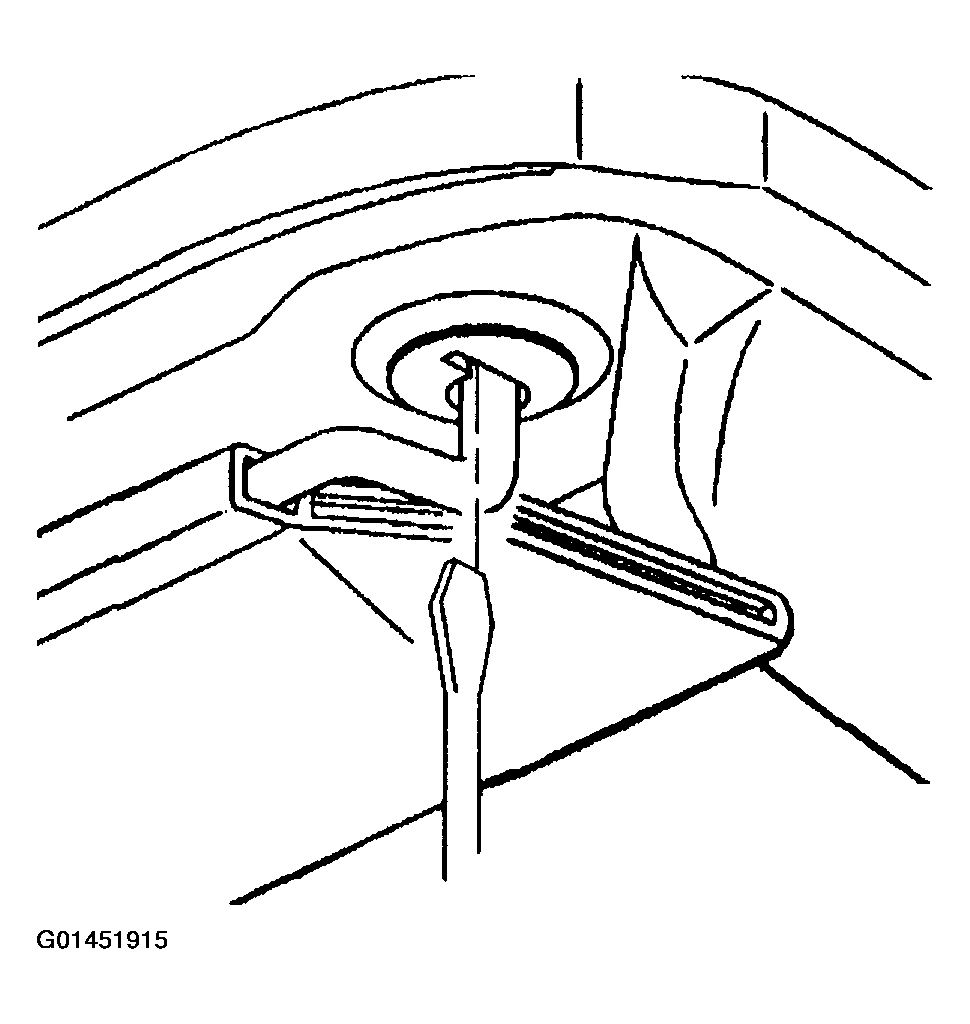

    Fig 1: Rotating Sunshade Outboard
    G01451915Courtesy of GENERAL MOTORS CORP.
  5. Disconnect the electrical connector.
  6. Remove the sunshade.
  7. Disassemble as necessary.
    • If removing the mounting bezel, pull the bezel from the garnish molding with your fingers.
    • If replacing the inner bezel, remove the bezel from the sunshade shaft and press the new bezel onto the shaft.

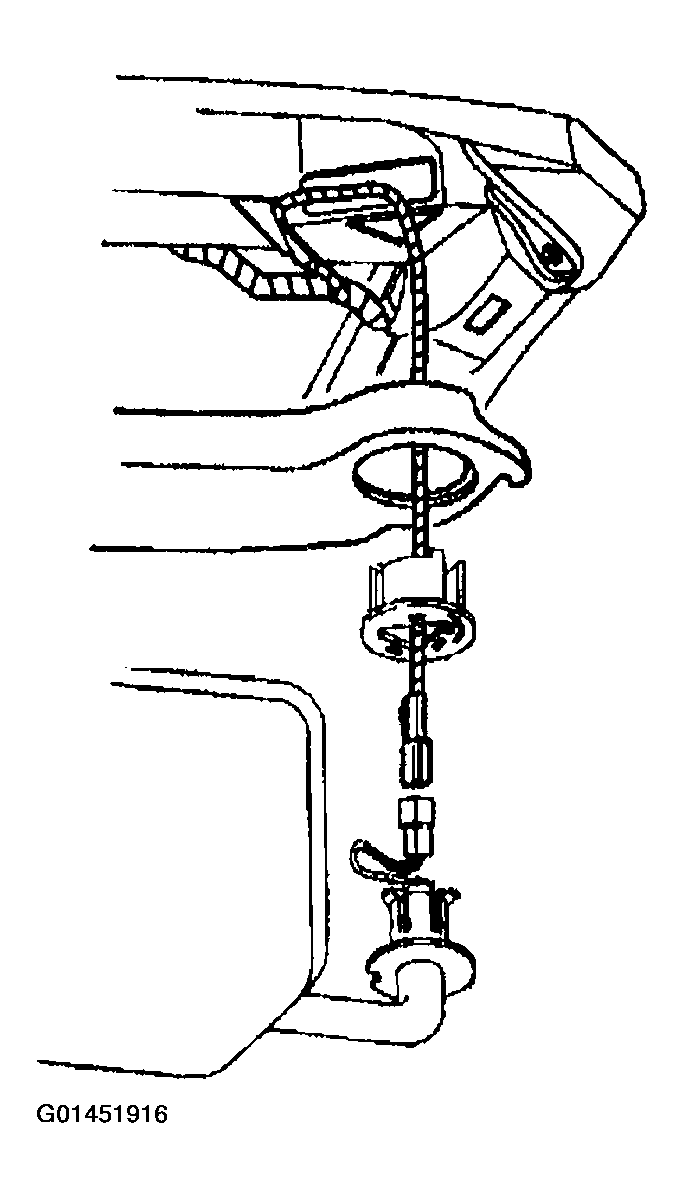

      Fig 2: Sunshade
      G01451916Courtesy of GENERAL MOTORS CORP.
