Removal Procedure

WARNING: This page is about a different car, the 2003 Chevrolet Corvette. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the roof front stowage bracket by twisting the egg shaped bracket 90 degrees clockwise.
  2. Remove the bezel from the roof front stowage bracket mounting plate by prying up the bezel.

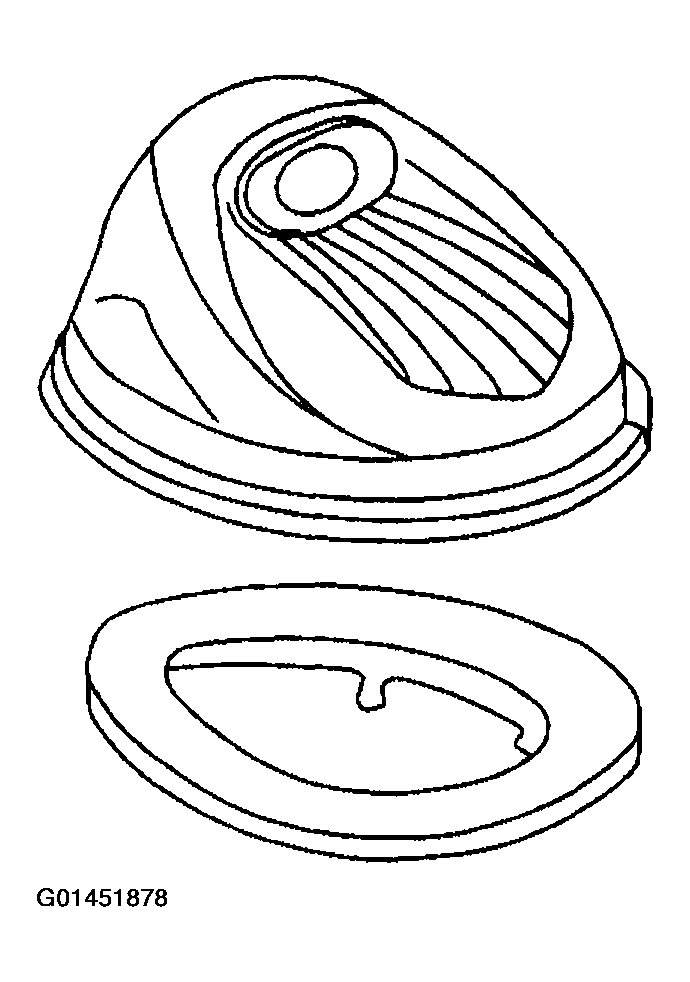

    Fig 1: Removing Bezel From Roof Front Stowage Bracket Mounting Plate
    G01451878Courtesy of GENERAL MOTORS CORP.
  3. Remove the floor carpet to access the mounting plate bolts. Refer to CARPET REPLACEMENT - REAR COMPARTMENT FLOOR (CONVERTIBLE)  or CARPET REPLACEMENT - REAR COMPARTMENT FLOOR (COUPE)  or CARPET REPLACEMENT - REAR COMPARTMENT FLOOR (HARDTOP) .

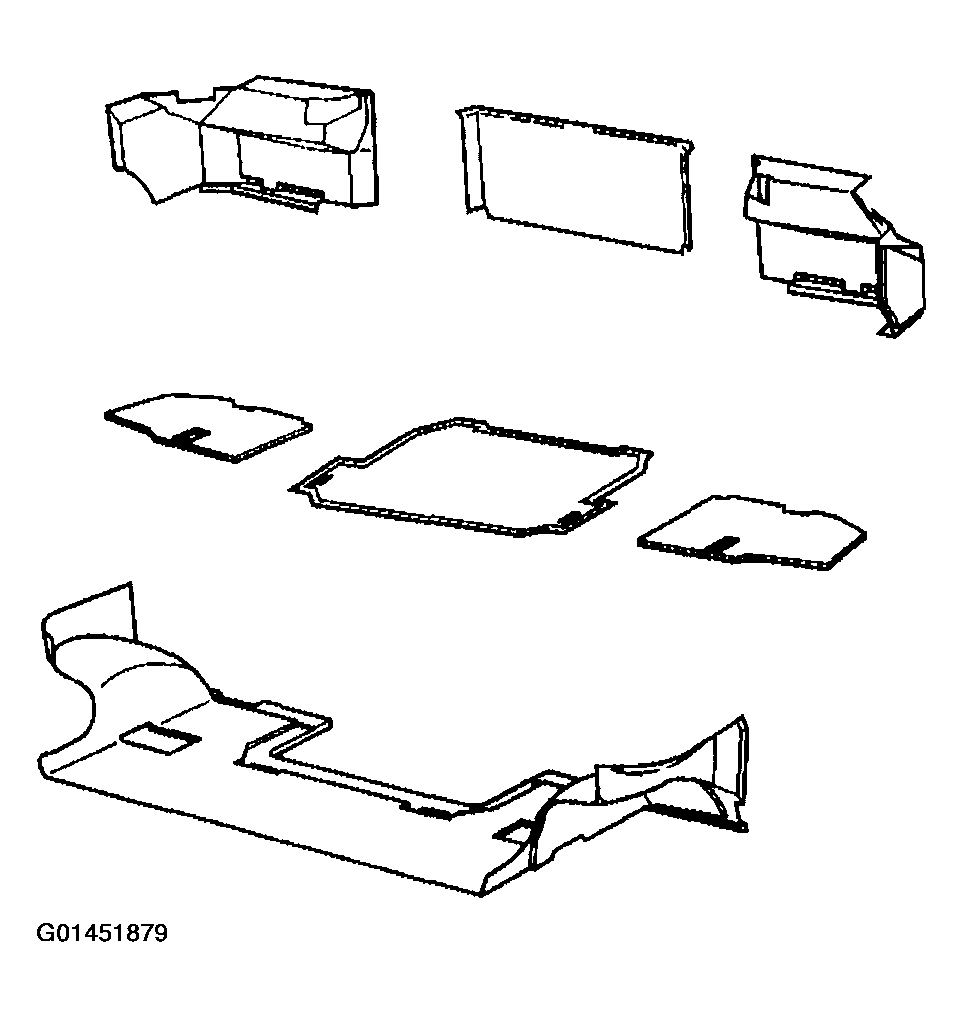

    Fig 2: Floor Carpeting
    G01451879Courtesy of GENERAL MOTORS CORP.
  4. Remove the bolts attaching the roof front stowage bracket mounting plate.
  5. Remove the roof front stowage bracket mounting plate.
    Fig 3: Roof Front Stowage Bracket Mounting Plate
    G01451880Courtesy of GENERAL MOTORS CORP.
