Installation Procedure

WARNING: This page is about a different car, the 2003 Chevrolet Corvette. However, it is still accessible from the selected car via links, so may be relevant.
  1. Position the mounting plate to the rear compartment floor.
    NOTE: Refer to FASTENER NOTICE in Cautions and Notices.
  2. Install the bolts attaching the mounting plate.
    1. Install the rear inboard bolt first.
    2. Install the rear outboard bolt second.
    3. Install the forward bolt third.

      Tighten

      Tighten the roof stowage bracket mounting plate bolts to 8 N.m (71 lb in).

      Fig 1: Roof Front Stowage Bracket Mounting Plate
      G01451881Courtesy of GENERAL MOTORS CORP.
  3. Install the floor carpeting. Refer to CARPET REPLACEMENT - REAR COMPARTMENT FLOOR (CONVERTIBLE)  or CARPET REPLACEMENT - REAR COMPARTMENT FLOOR (COUPE)  or CARPET REPLACEMENT - REAR COMPARTMENT FLOOR (HARDTOP) .

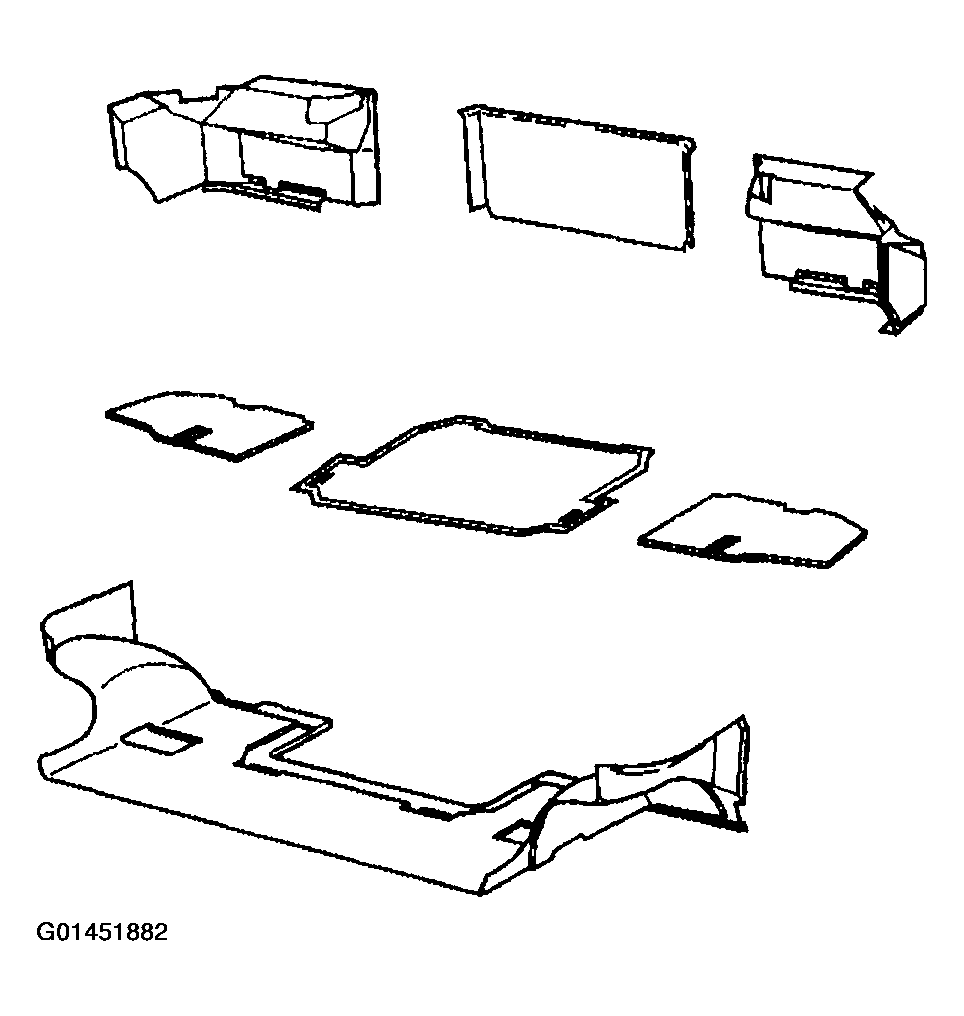

    Fig 2: Floor Carpeting
    G01451882Courtesy of GENERAL MOTORS CORP.
  4. Snap the bezel onto the ribs on the mounting plate. Press firmly around the entire periphery of the bezel.
  5. Install the stowage bracket. Rotate the egg shaped bracket 90 degrees counterclockwise to secure the bracket.

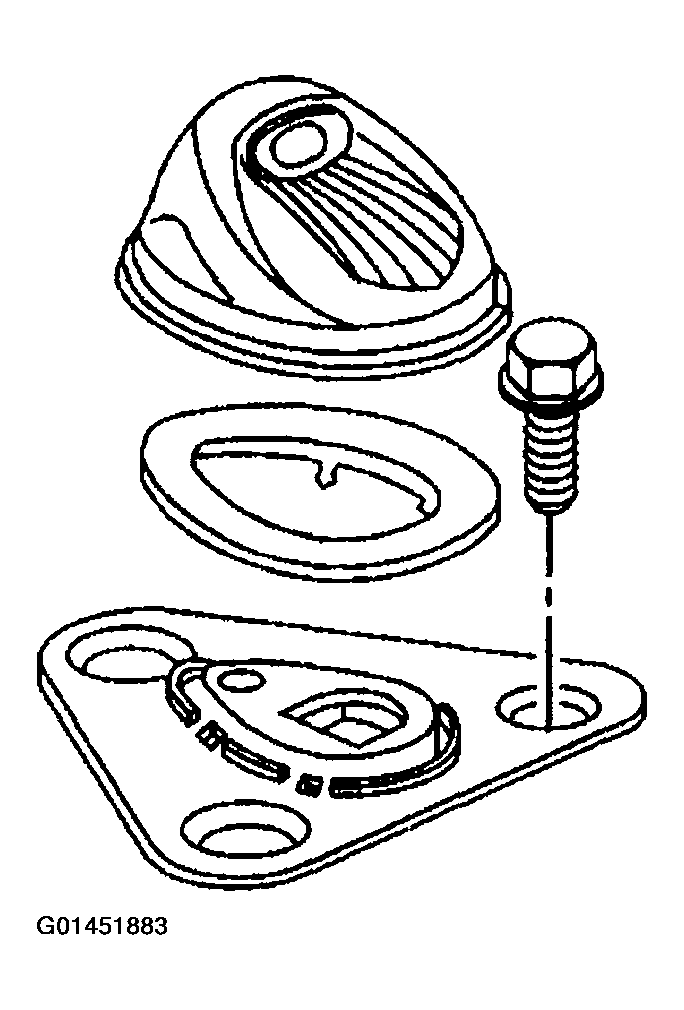

    Fig 3: Snapping Bezel Onto Ribs On Mounting Plate
    G01451883Courtesy of GENERAL MOTORS CORP.
