Removal Procedure

WARNING: This page is about a different car, the 2003 Chevrolet Corvette. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disengage the kick-up panel upper latches.
  2. Open the kick-up panel.
  3. Lift the kick-up panel's lower edge up out of the slots in the multi-use relay bracket.
  4. Remove the kick-up panel.

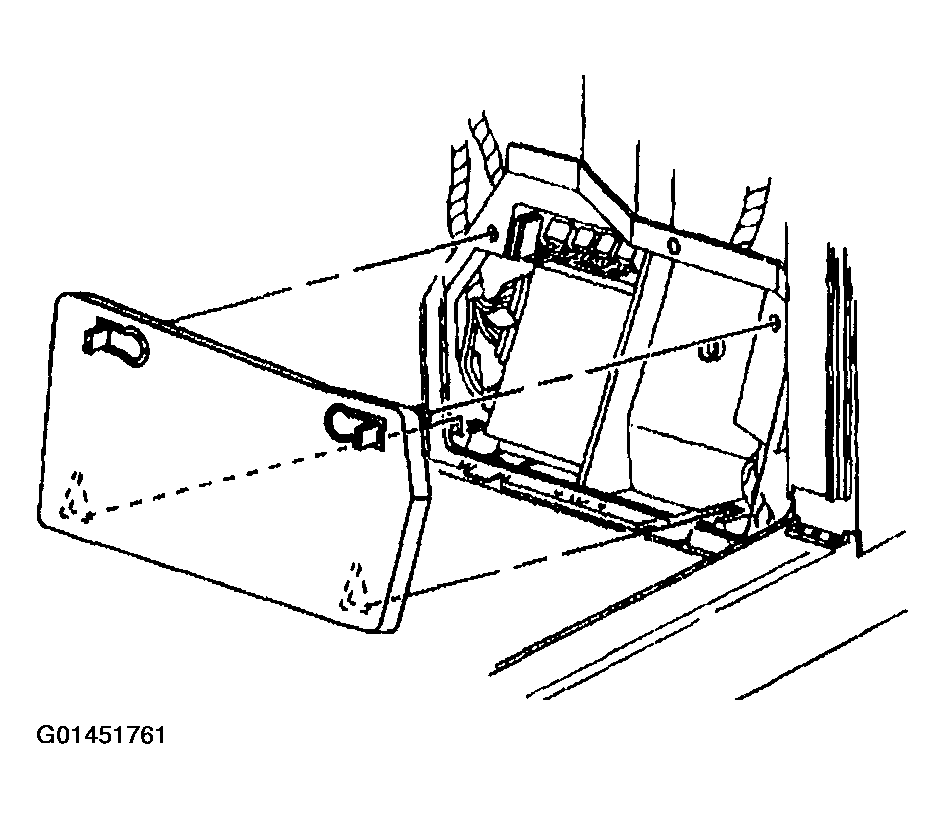

    Fig 1: Kick-Up Panel (Front Floor)
    G01451761Courtesy of GENERAL MOTORS CORP.
