Removal Procedure

WARNING: This page is about a different car, the 2003 Chevrolet Corvette. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the windshield side garnish moldings. Refer to WINDSHIELD SIDE GARNISH MOLDING REPLACEMENT  .

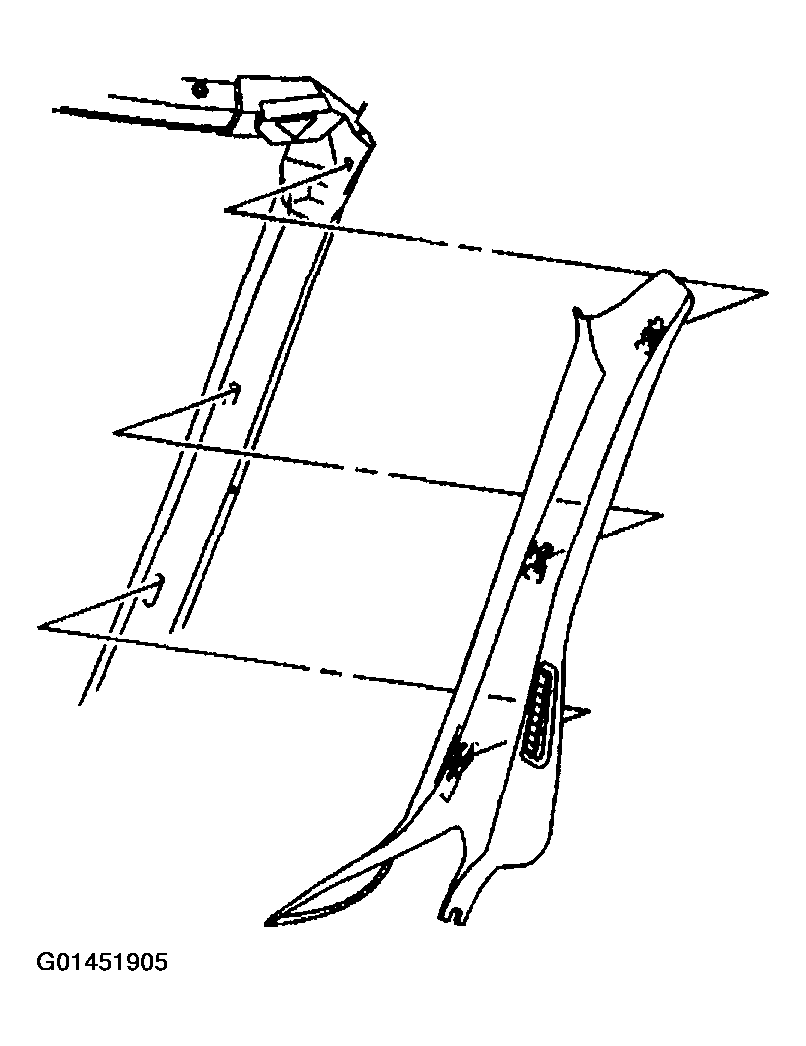

    Fig 1: Windshield Side Garnish Moldings
    G01451905Courtesy of GENERAL MOTORS CORP.
  2. Remove the trim panels from the front side of the rear compartment. Refer to TRIM PANEL REPLACEMENT - REAR COMPARTMENT FRONT SIDE (COUPE)  or TRIM PANEL REPLACEMENT - REAR COMPARTMENT FRONT SIDE (CONVERTIBLE)  or TRIM PANEL REPLACEMENT - REAR COMPARTMENT FRONT SIDE (HARDTOP) .
  3. Support the headlining.

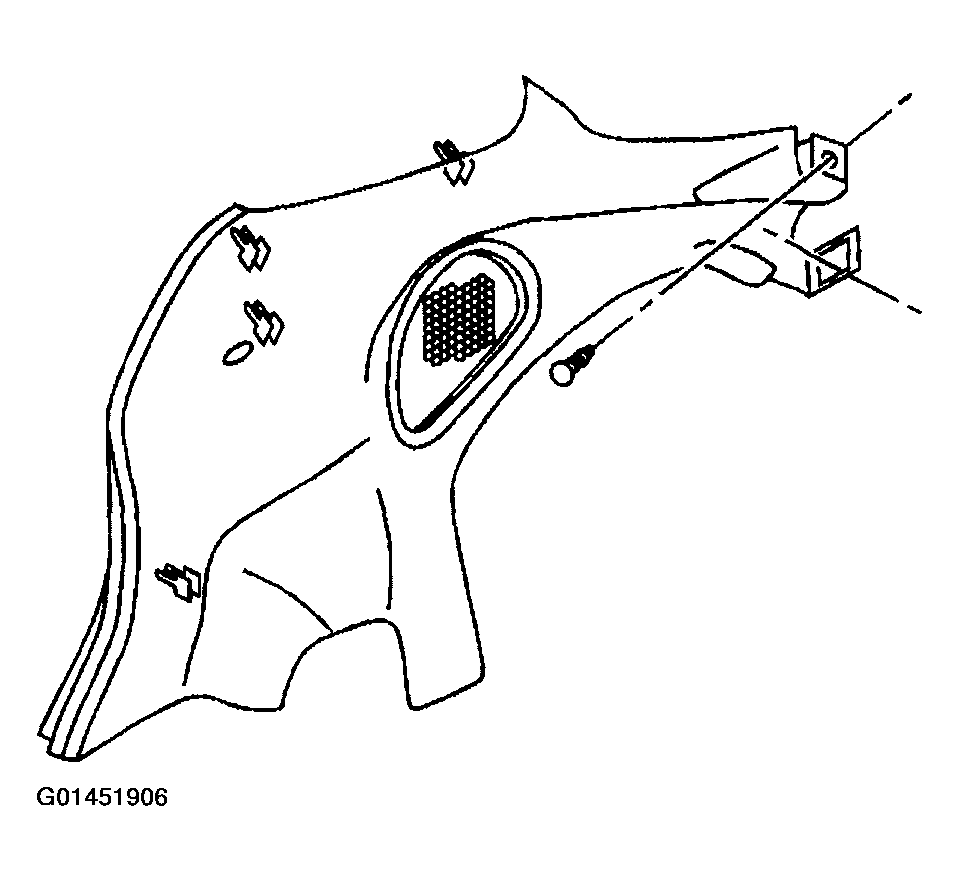

    Fig 2: Removing Trim Panels From Front Side Of Rear Compartment
    G01451906Courtesy of GENERAL MOTORS CORP.
  4. Remove the retainer from the center of the rear edge of the headlining.

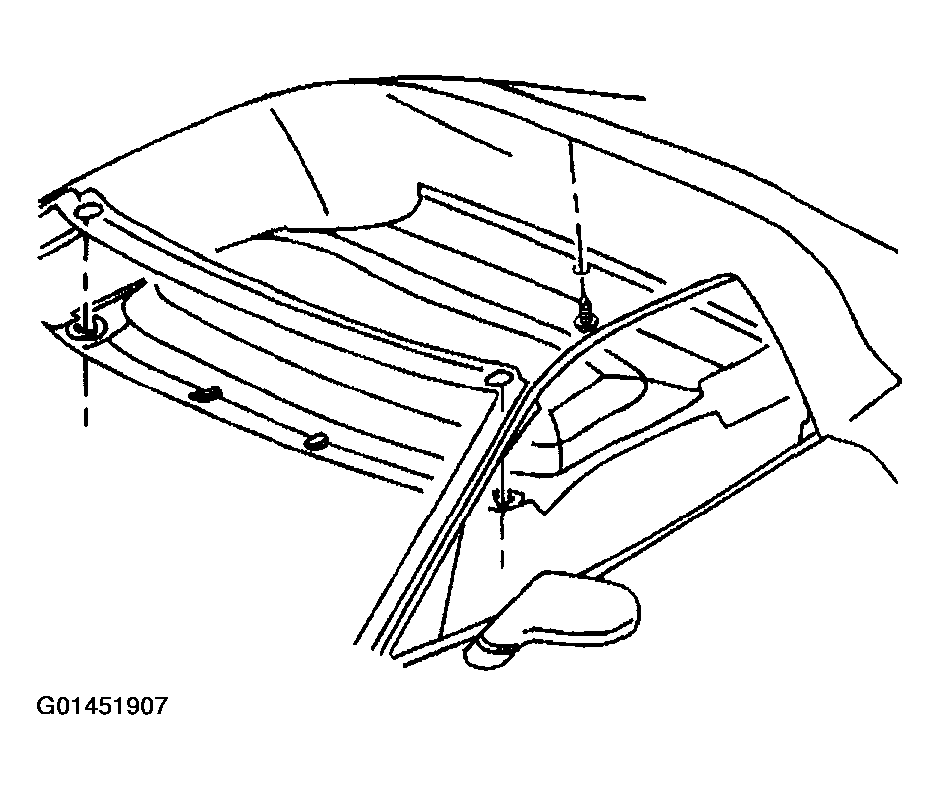

    Fig 3: Removing Retainer From Center Of Rear Edge Of Headlining
    G01451907Courtesy of GENERAL MOTORS CORP.
  5. Remove the sunshades. Refer to SUNSHADE REPLACEMENT  .
  6. Remove the sunshade bezels.
  7. Remove the sunshade supports.
  8. Remove the headlining.

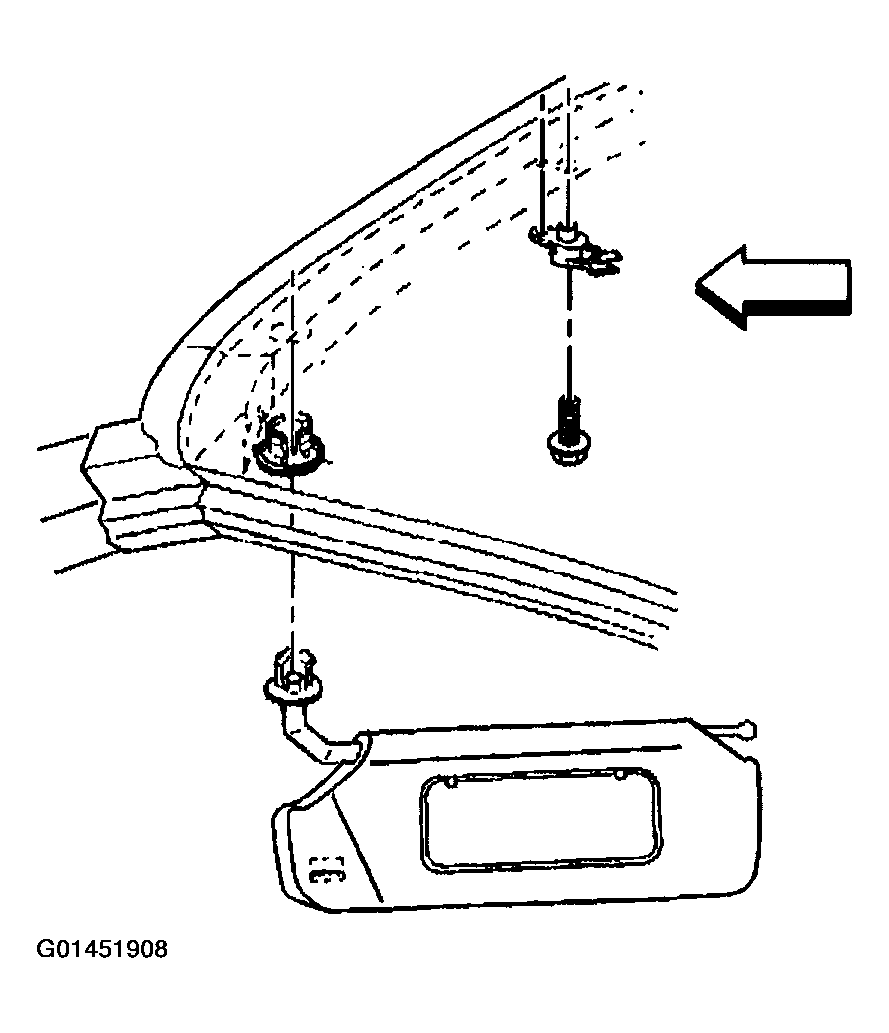

    Fig 4: Sunshades
    G01451908Courtesy of GENERAL MOTORS CORP.
