Installation Procedure

WARNING: This page is about a different car, the 2003 Chevrolet Corvette. However, it is still accessible from the selected car via links, so may be relevant.
CAUTION: Do not attempt to repair or alter the head impact energy-absorbing material glued to the headliner or to the garnish trims. If the material is damaged, replace the headliner and/or the garnish trim. Failure to do so could result in personal injury.
  1. Install the headlining to the vehicle.
  2. Support the headlining.
  3. Install the retainer securing the rear edge of the headlining.

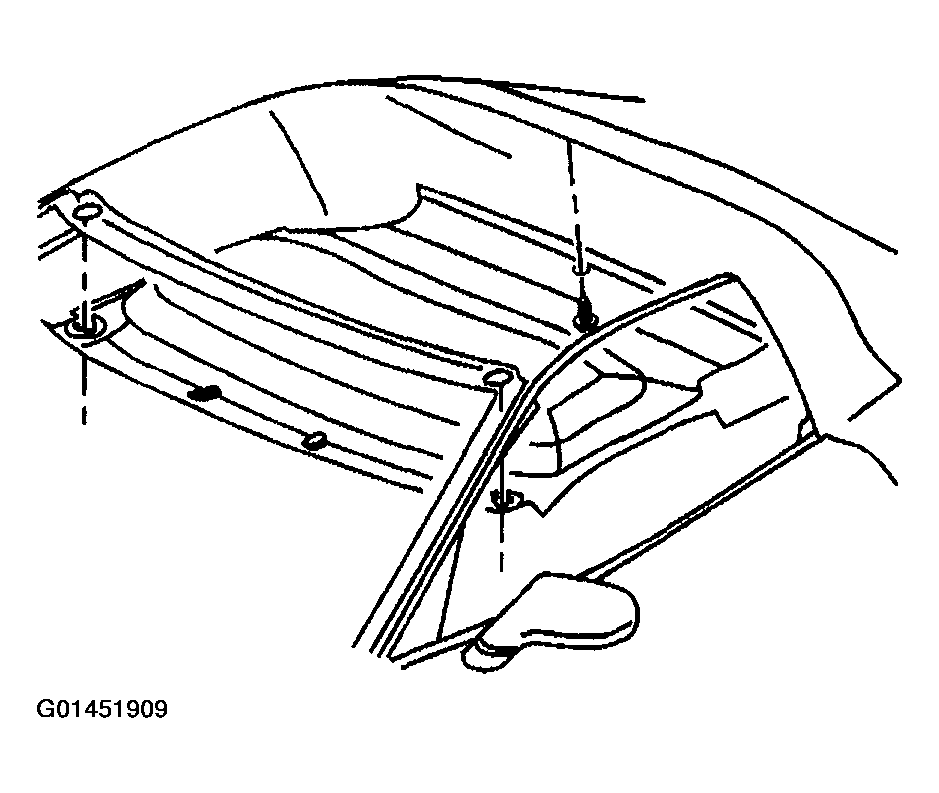

    Fig 1: Installing Retainer Securing Rear Edge Of Headlining
    G01451909Courtesy of GENERAL MOTORS CORP.
  4. Route the sunshade electrical connection through the headlining and the sunshade bezel.
  5. Install the sunshade bezels.

    Insert the bezel into the opening until the snap fingers engage.

  6. Install the sunshades. Refer to SUNSHADE REPLACEMENT   .
    NOTE: Refer to FASTENER NOTICE in Cautions and Notices.
  7. Install the sunshade retainers.

    Tighten

    Tighten the screws to 2 N.m (17 lb in).

  8. Remove the headlining temporary support.

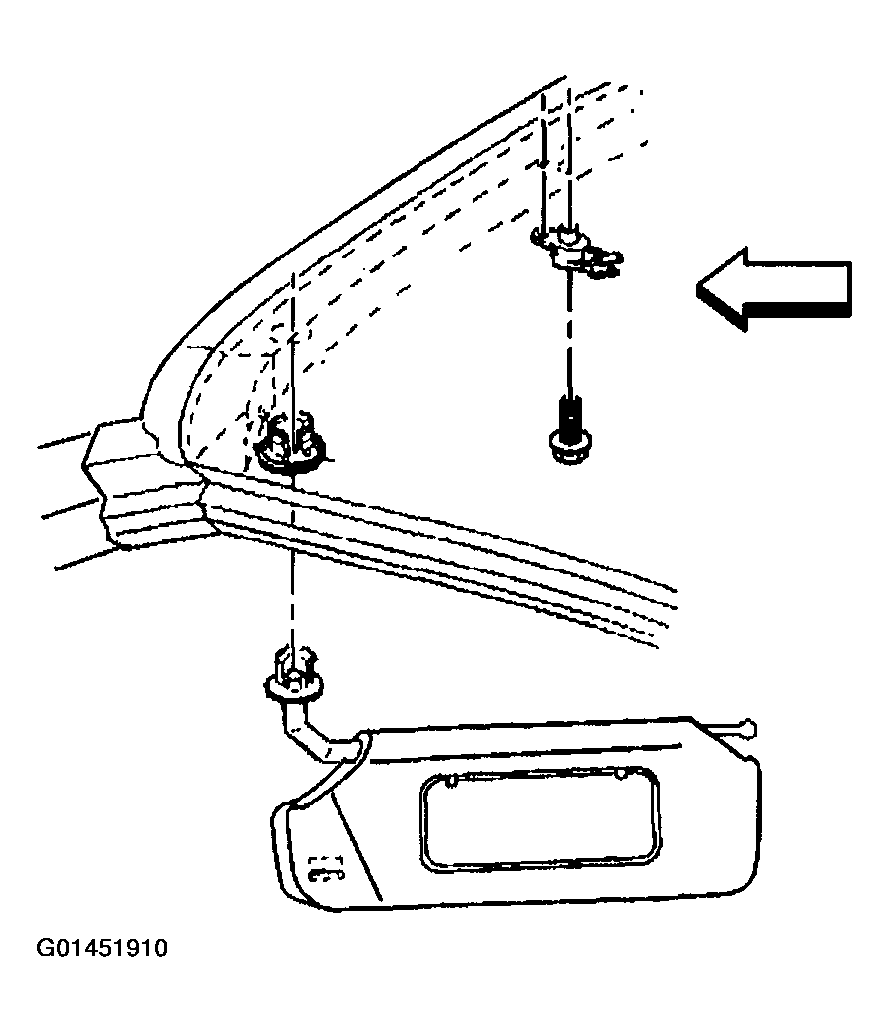

    Fig 2: Sunshade Retainers
    G01451910Courtesy of GENERAL MOTORS CORP.
  9. Install the windshield side garnish moldings. Refer to WINDSHIELD SIDE GARNISH MOLDING REPLACEMENT  .

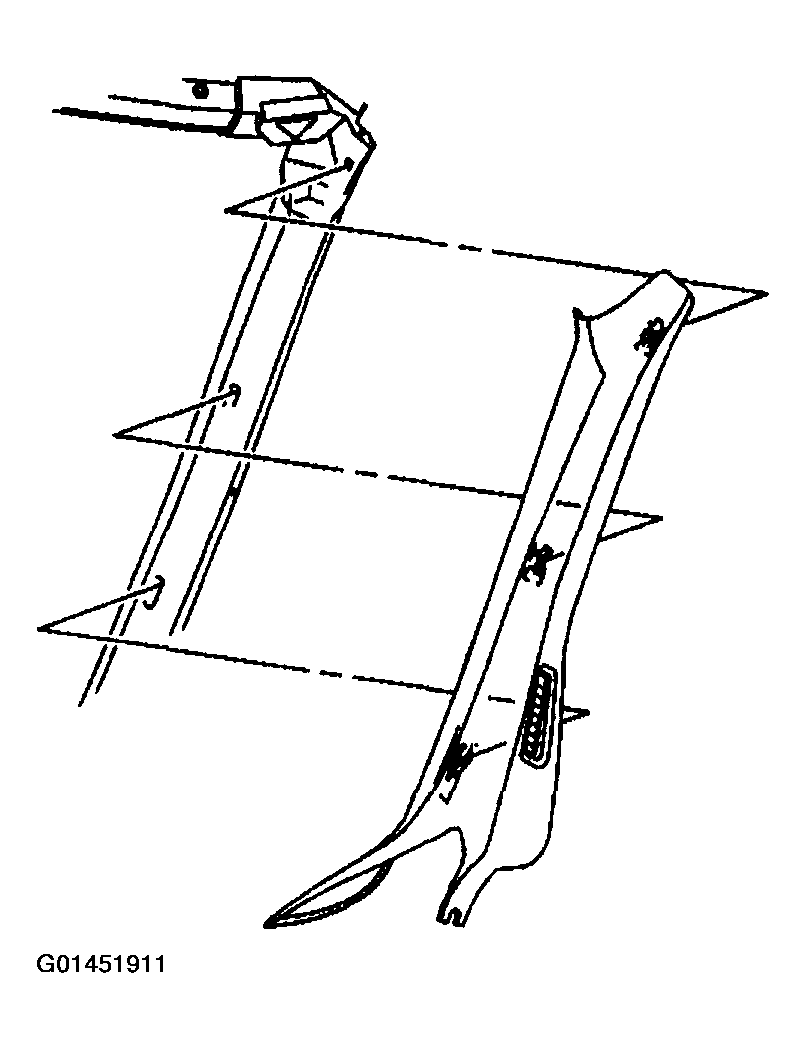

    Fig 3: Windshield Side Garnish Moldings
    G01451911Courtesy of GENERAL MOTORS CORP.
  10. Install the trim panels to the front side of the rear compartment. Refer to TRIM PANEL REPLACEMENT - REAR COMPARTMENT FRONT SIDE (COUPE)  or TRIM PANEL REPLACEMENT - REAR COMPARTMENT FRONT SIDE (CONVERTIBLE)  or TRIM PANEL REPLACEMENT - REAR COMPARTMENT FRONT SIDE (HARDTOP) .
  11. Reposition the inside lip of the upper weatherstrips on the door window over the edge of the headlining.

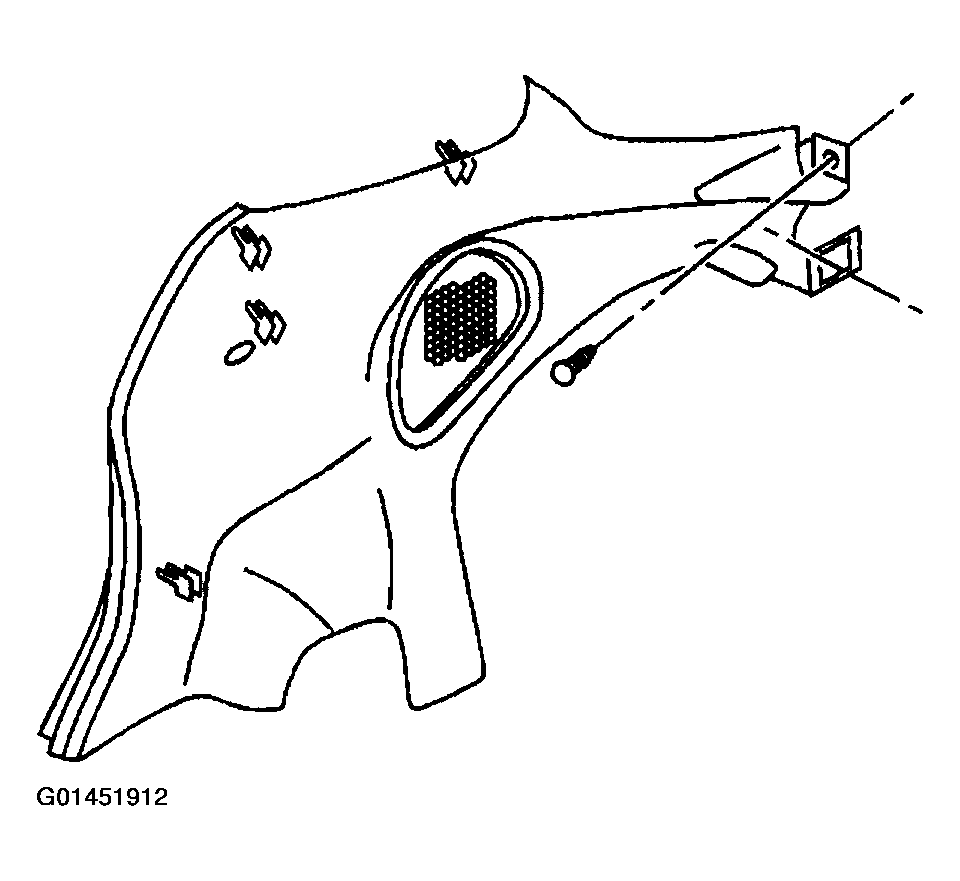

    Fig 4: Installing Trim Panels To Front Side Of Rear Compartment
    G01451912Courtesy of GENERAL MOTORS CORP.
