Installation Procedure

WARNING: This page is about a different car, the 2003 Chevrolet Corvette. However, it is still accessible from the selected car via links, so may be relevant.
CAUTION: Do not attempt to repair or alter the head impact energy-absorbing material glued to the headliner or to the garnish trims. If the material is damaged, replace the headliner and/or the garnish trim. Failure to do so could result in personal injury.
  1. Install the headliner retainer to the #3 bow.
    NOTE: Refer to FASTENER NOTICE in Cautions and Notices.
  2. Install the headliner retainer screws to the #3 bow.

    Tighten

    Tighten the screws to 2 N.m (18 lb in).

  3. Install the headliner retainer screws to the #4 bow.

    Tighten

    Tighten the screws to 2 N.m (18 lb in).

    Fig 1: Headliner
    G01451894Courtesy of GENERAL MOTORS CORP.
  4. Install the support strap screws for the rear window to the #4 bow.

    Tighten

    Tighten the screws to 2 N.m (18 lb in).

  5. Install the retainer screws for the headliner elastic strap to the rear side rails.

    Tighten

    Tighten the screws to 2 N.m (18 lb in).

  6. Install the headliner screws to the rear side rails.

    Tighten

    Tighten the screws to 2 N.m (18 lb in).

  7. Install the retainers screws for the headliner elastic strap to the #5 bow.

    Tighten

    Tighten the screws to 2 N.m (18 lb in).

    Fig 2: Headliner Retainers Screws
    G01451895Courtesy of GENERAL MOTORS CORP.

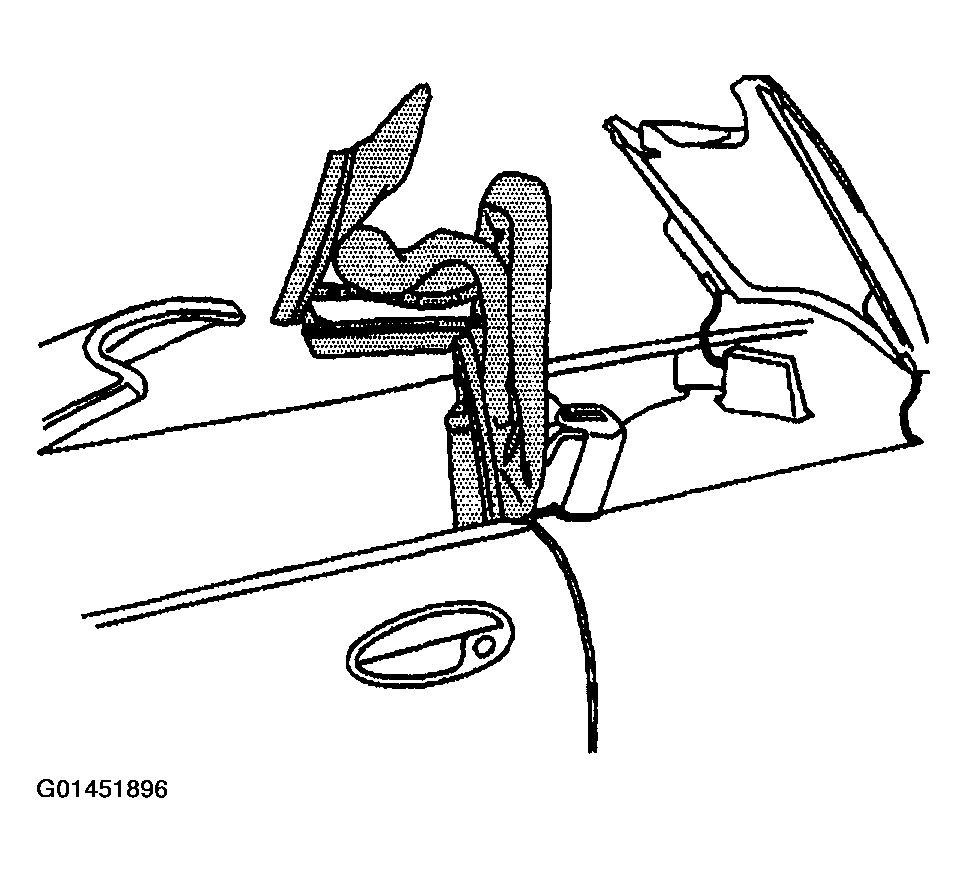

  8. Position the #1 and #5 bow up.
    Fig 3: Positioning #1 & #5 Bow Up
    G01451896Courtesy of GENERAL MOTORS CORP.
  9. Install the headliner retainer screws to the #2 bow.

    Tighten

    Tighten the to 2 N.m (18 lb in).

    Fig 4: Installing Headliner Retainer Screws To #2 bow
    G01451897Courtesy of GENERAL MOTORS CORP.

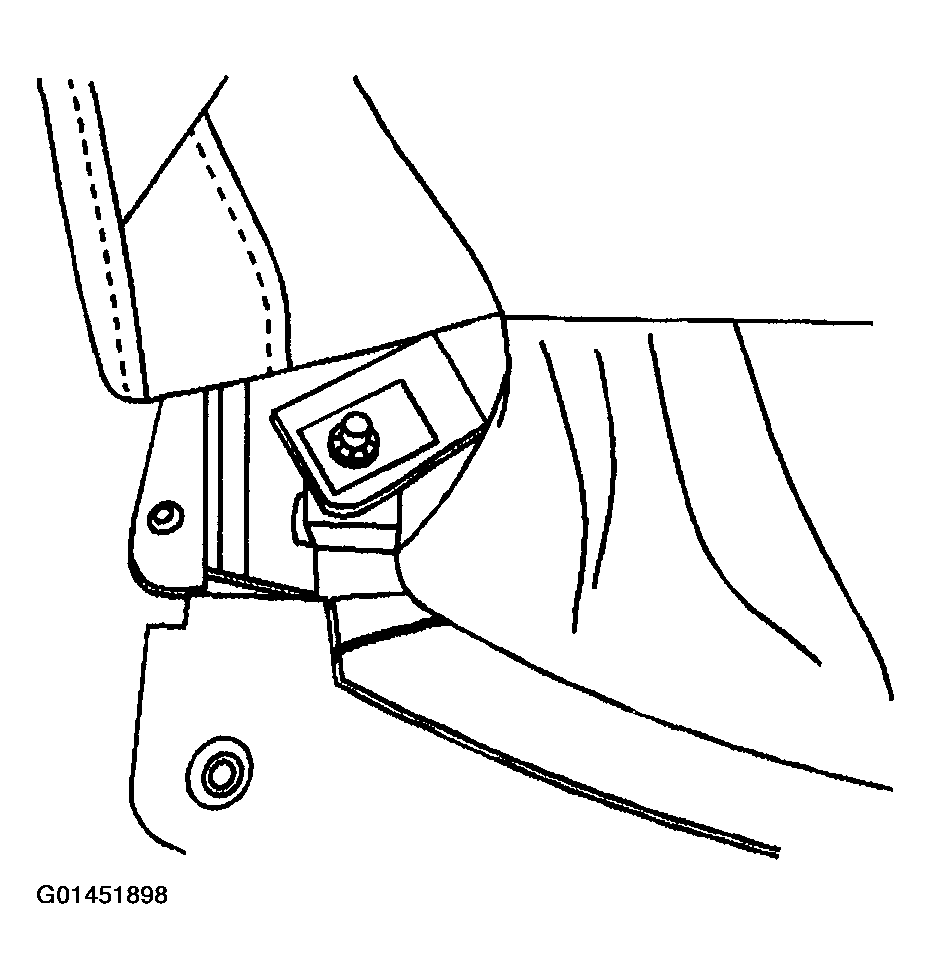

  10. Install the headliner extension push-on retainers to the #1 bow stud.
    Fig 5: Installing Headliner Extension Push-On Retainers To #1 Bow Stud
    G01451898Courtesy of GENERAL MOTORS CORP.
  11. Install the right and left side headliner screws to the #1 bow.

    Tighten

    Tighten the screws to 2 N.m (18 lb in).

    Fig 6: Installing Right & Left Side Headliner Screws To #1 Bow
    G01451899Courtesy of GENERAL MOTORS CORP.
  12. Staple the headliner to the #1 bow.
  13. Before stapling the top cover to the #1 bow, refer to FOLDING TOP SEAL COMPRESSION PANEL REPLACEMENT .
  14. Reposition the folding top to the original position.
    Fig 7: Stapling Headliner To #1 bow
    G01451900Courtesy of GENERAL MOTORS CORP.
