Removal Procedure

WARNING: This page is about a different car, the 2003 Chevrolet Corvette. However, it is still accessible from the selected car via links, so may be relevant.
  1. Open the folding top stowage compartment lid.
  2. Remove the screws attaching the lower sides of the extension panel.
  3. Remove the screws attaching the top of the extension panel.
  4. Remove the panel upward from the bracket.

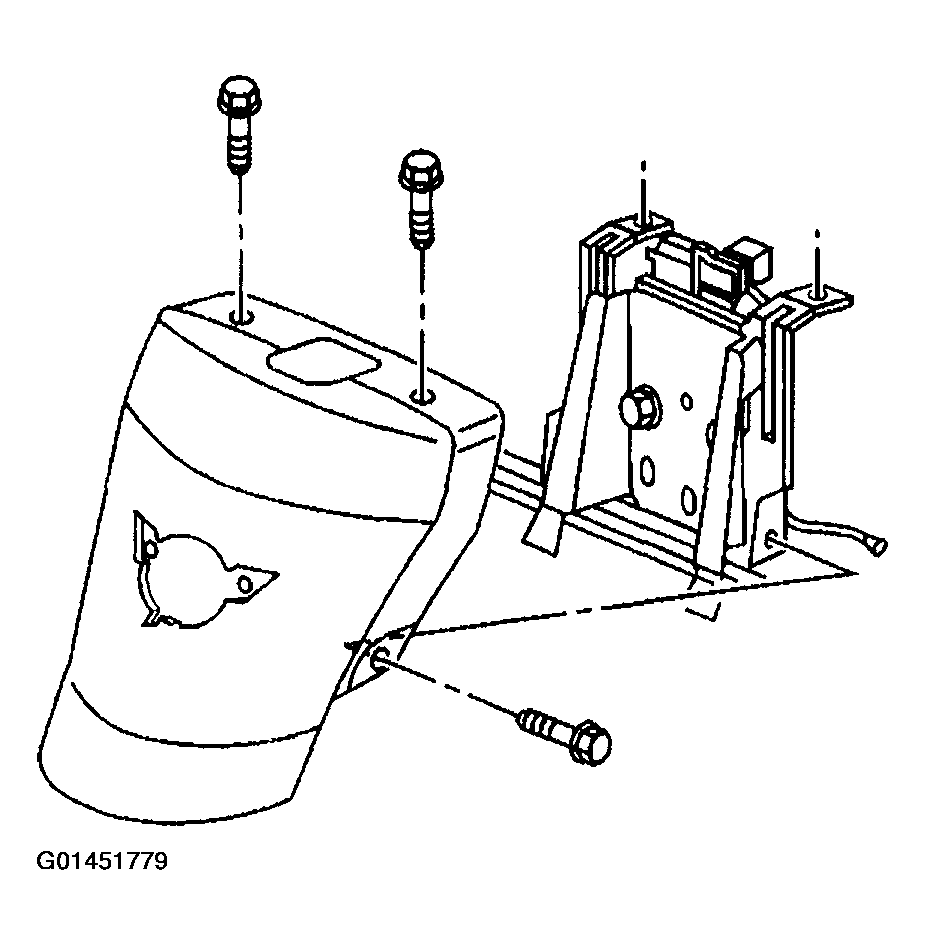

    Fig 1: Removing Bolts Attaching Extension Panel From Bracket
    G01451779Courtesy of GENERAL MOTORS CORP.
