Installation Procedure

WARNING: This page is about a different car, the 2003 Chevrolet Corvette. However, it is still accessible from the selected car via links, so may be relevant.
  1. Position the extension panel to the bracket with the latch manual release cable extending out from under the panel.
    NOTE: Refer to FASTENER NOTICE in Cautions and Notices.
  2. Install the bolts attaching the extension panel to the bracket.

    Tighten

    Tighten the extension panel bolts to 4 N.m (35 lb in).

  3. Closed the folding top stowage compartment lid.

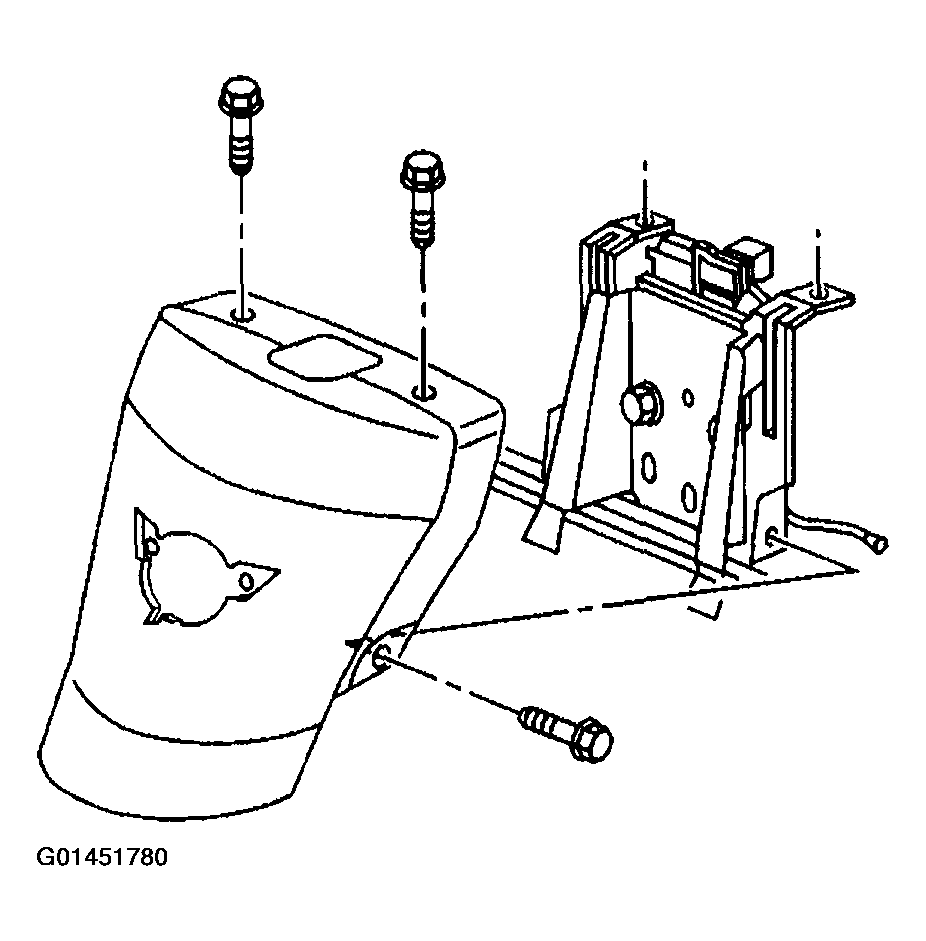

    Fig 1: Installing Bolts Attaching Extension Panel To Bracket
    G01451780Courtesy of GENERAL MOTORS CORP.
