Removal Procedure

WARNING: This page is about a different car, the 2003 Chevrolet Corvette. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the floor center stowage cover.
    Fig 1: Floor Center Stowage Cover
    G01451820Courtesy of GENERAL MOTORS CORP.
  2. Slide the cargo lamps up out of the corners of the carpet.
    Fig 2: Sliding Cargo Lamps Up Out Of Corners Of Carpet
    G01451821Courtesy of GENERAL MOTORS CORP.
  3. Remove the trim panels from the rear compartment supports.
    Fig 3: Removing Trim Panels From Rear Compartment Supports
    G01451822Courtesy of GENERAL MOTORS CORP.
  4. Remove the rear compartment side trim panels. Refer to TRIM PANEL REPLACEMENT - REAR COMPARTMENT FRONT SIDE (COUPE)  or TRIM PANEL REPLACEMENT - REAR COMPARTMENT FRONT SIDE (CONVERTIBLE)  or TRIM PANEL REPLACEMENT - REAR COMPARTMENT FRONT SIDE (HARDTOP) .

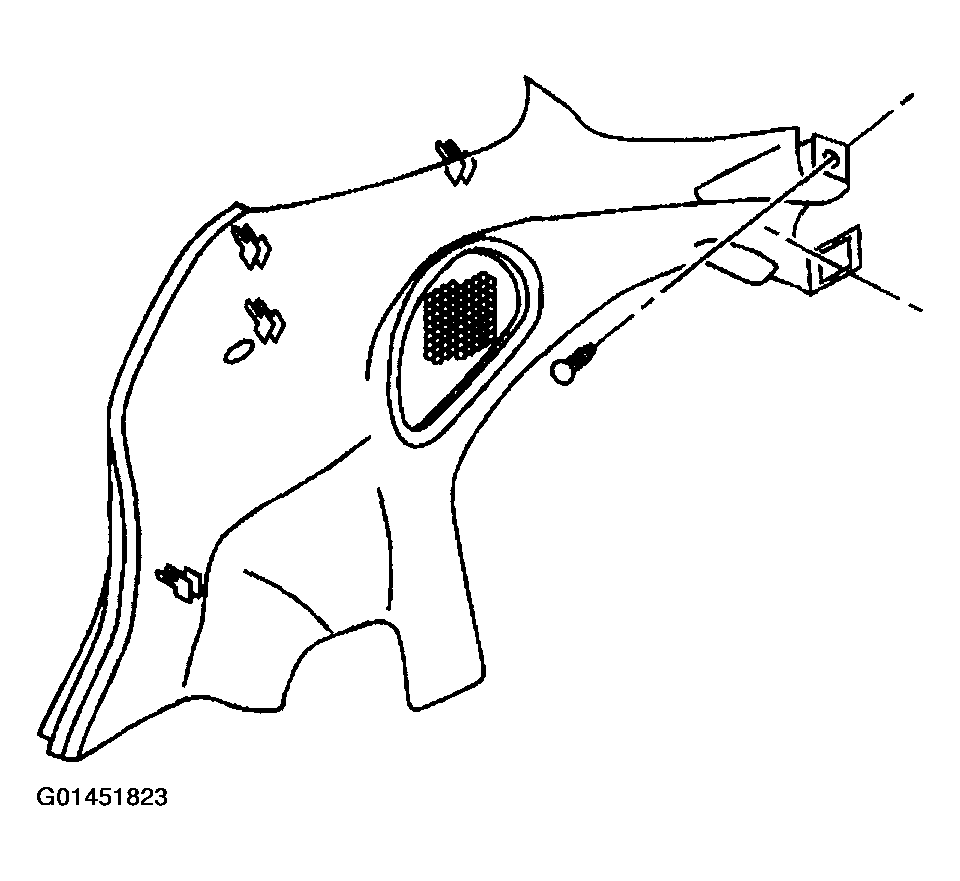

    Fig 4: Rear Compartment Side Trim Panels
    G01451823Courtesy of GENERAL MOTORS CORP.
  5. Remove the floor carpet from around the rear compartment supports.
  6. Pull the carpet out from under the flange along the rear of the stowage area.
  7. Remove the carpet from the vehicle.
    Fig 5: Removing Floor Carpet From Around Rear Compartment Supports
    G01451824Courtesy of GENERAL MOTORS CORP.
