Installation Procedure

WARNING: This page is about a different car, the 2003 Chevrolet Corvette. However, it is still accessible from the selected car via links, so may be relevant.

CAUTION: In order to avoid personal Injury or vehicle damage when you repair or replace the carpet, use the same thickness and material size as the original installation. Always return the carpet to the original location.

Position the carpet in the vehicle and around the rear compartment supports.

Fig 1: Positioning Carpet In Vehicle & Around Rear Compartment Supports
Courtesy of GENERAL MOTORS CORP.
Install the rear compartment side trim panels. Refer to TRIM PANEL REPLACEMENT - REAR COMPARTMENT FRONT SIDE (COUPE) or TRIM PANEL REPLACEMENT - REAR COMPARTMENT FRONT SIDE (CONVERTIBLE) or TRIM PANEL REPLACEMENT - REAR COMPARTMENT FRONT SIDE (HARDTOP) .

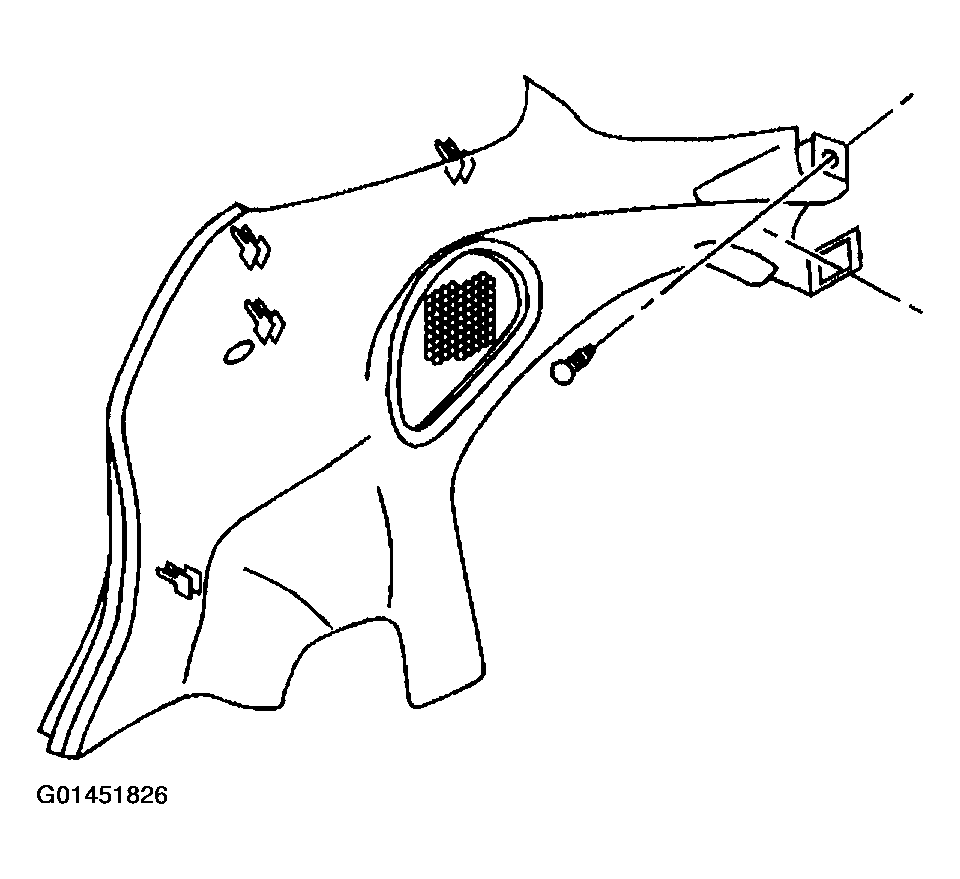

Fig 2: Rear Compartment Side Trim Panels
Courtesy of GENERAL MOTORS CORP.
Install the trim support panels to the rear compartment supports.

Fig 3: Installing Trim Support Panels To Rear Compartment Supports
Courtesy of GENERAL MOTORS CORP.
Snap the cargo lamps into the carpet.
Position the fuel door release cable through the carpet and secure the end tab of the cable with the hook and loop patch to the carpet.

Fig 4: Snapping Cargo Lamps Into Carpet
Courtesy of GENERAL MOTORS CORP.
Install the rear floor center stowage cover.

Fig 5: Rear Floor Center Stowage Cover
Courtesy of GENERAL MOTORS CORP.
