Removal Procedure

WARNING: This page is about a different car, the 2003 Chevrolet Corvette. However, it is still accessible from the selected car via links, so may be relevant.

Position the folding top in an open position with the number 1 and the number 5 bows up.

Fig 1: Positioning Folding Top In Open Position
Courtesy of GENERAL MOTORS CORP.
Open the folding top stowage compartment lid.

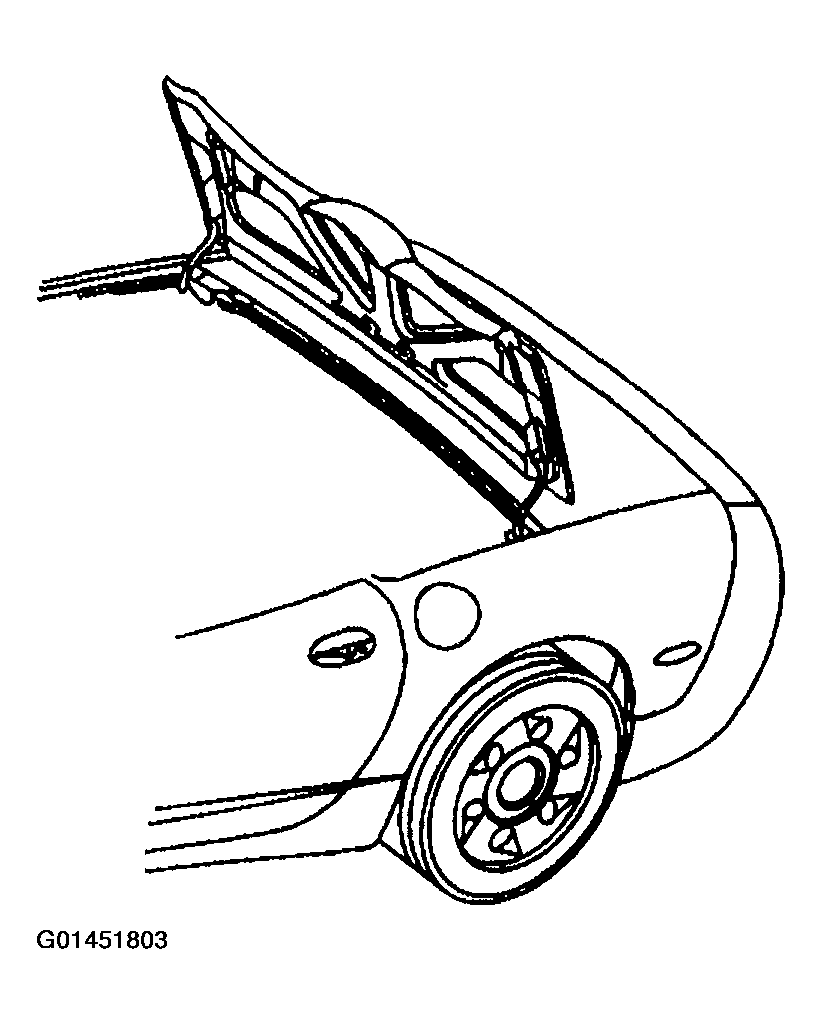

Fig 2: Opening Folding Top Stowage Compartment Lid
Courtesy of GENERAL MOTORS CORP.
Remove the rear speaker covers.
Remove the rear side support trim covers.
Pull the carpet from behind the supports.
Close the folding top stowage lid.

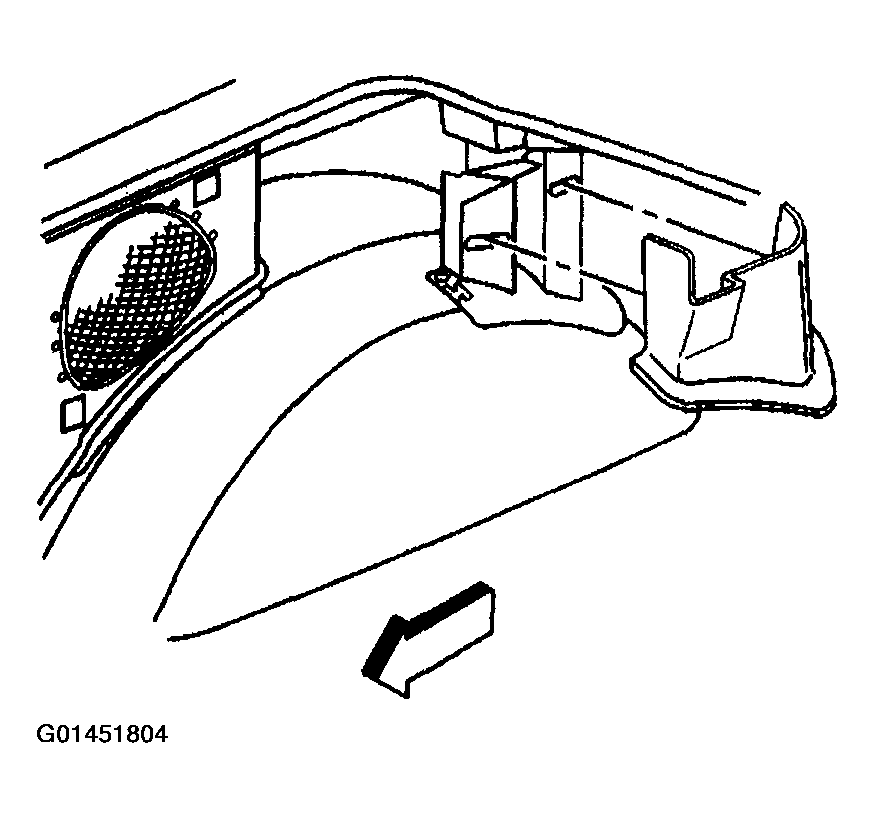

Fig 3: Rear Side Support Trim Covers
Courtesy of GENERAL MOTORS CORP.

Important: Do not attempt to open the folding top stowage lid and the rear compartment lid at the same time. The panels will contact in the open position.
Open the rear compartment lid.

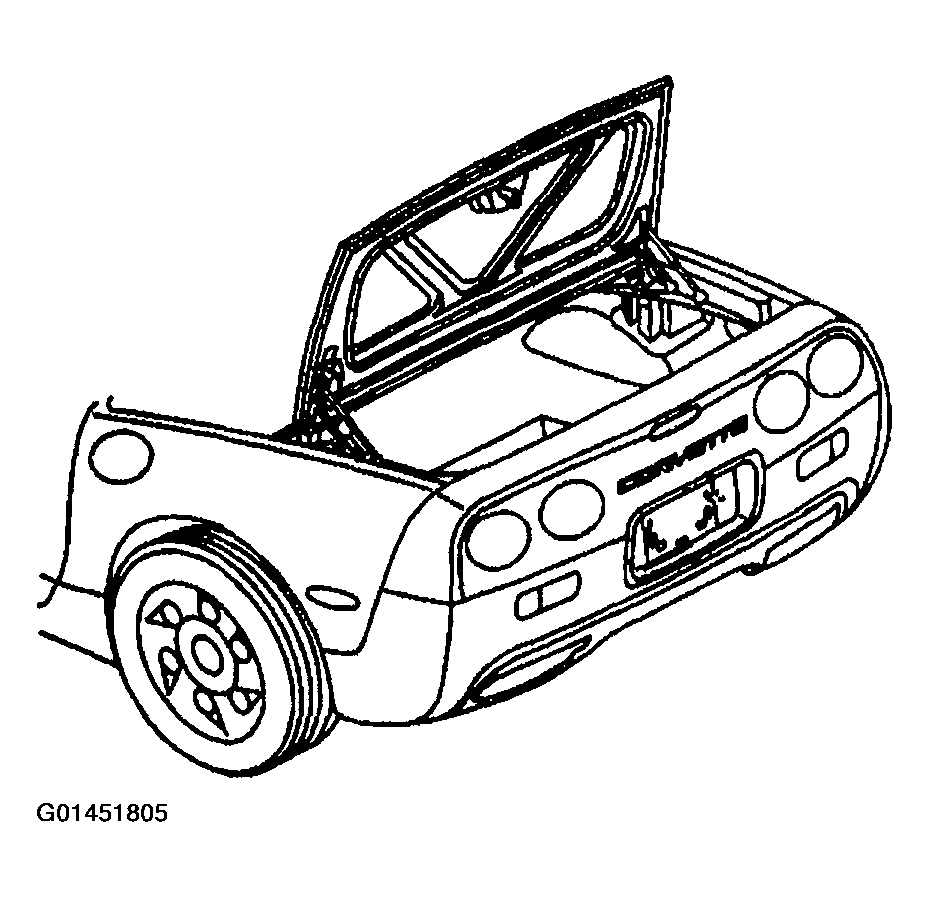

Fig 4: Locating Open Rear Compartment Lid
Courtesy of GENERAL MOTORS CORP.
Remove the rear floor stowage compartment covers.
Remove the center rear floor stowage compartment cover latch striker retainers by sliding the retainers toward the rear of the vehicle.

Fig 5: Rear Floor Stowage Compartment Covers
Courtesy of GENERAL MOTORS CORP.
Remove the rear corner carpet trim panels. Refer to TRIM PANEL CARPET REPLACEMENT - REAR CORNER (COUPE) or TRIM PANEL CARPET REPLACEMENT - REAR CORNER (CONVERTIBLE) or TRIM PANEL CARPET REPLACEMENT - REAR CORNER (HARDTOP) .

Fig 6: Rear Corner Carpet Trim Panels
Courtesy of GENERAL MOTORS CORP.
Remove the rear compartment carpet.

Fig 7: Identifying Rear Compartment Carpet For Removal
Courtesy of GENERAL MOTORS CORP.
