Removal Procedure

WARNING: This page is about a different car, the 2003 Chevrolet Corvette. However, it is still accessible from the selected car via links, so may be relevant.
  1. Slide the seats forward.
  2. Open the folding top stowage lid.
    Fig 1: Positioning Carpet To Intermediate Body Panel (Convertible)
    G01451798Courtesy of GENERAL MOTORS CORP.
  3. Remove the stowage lid extension panel. Refer to COMPARTMENT LID EXTENSION - FOLDING TOP STOWAGE  .
  4. Remove the stowage lid extension panel bracket.
  5. Pull the carpet from under the adjoining panels.
  6. Remove the intermediate carpet.

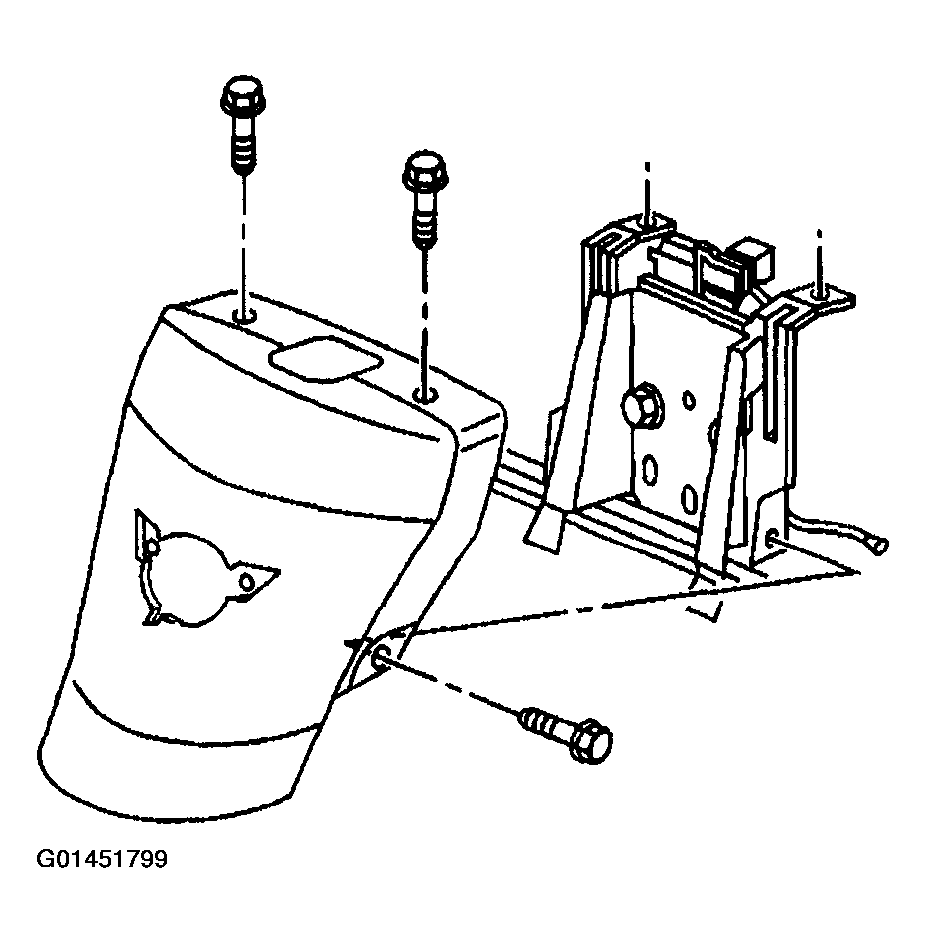

    Fig 2: Stowage Lid Extension Panel Bracket
    G01451799Courtesy of GENERAL MOTORS CORP.
