Removal Procedure

WARNING: This page is about a different car, the 2003 Chevrolet Corvette. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the seat back recliner handle. Refer to SEAT BACK RECLINER HANDLE REPLACEMENT - FRONT  .
    Fig 1: Seat Back Recliner Handle
    G01451751Courtesy of GENERAL MOTORS CORP.
  2. Remove the screws attaching the seat side trim panel.
    Fig 2: Removing Screws Attaching Seat Side Trim Panel
    G01451752Courtesy of GENERAL MOTORS CORP.
  3. Rock the panel side to side working the barrel post clip (1) out of the seat frame.

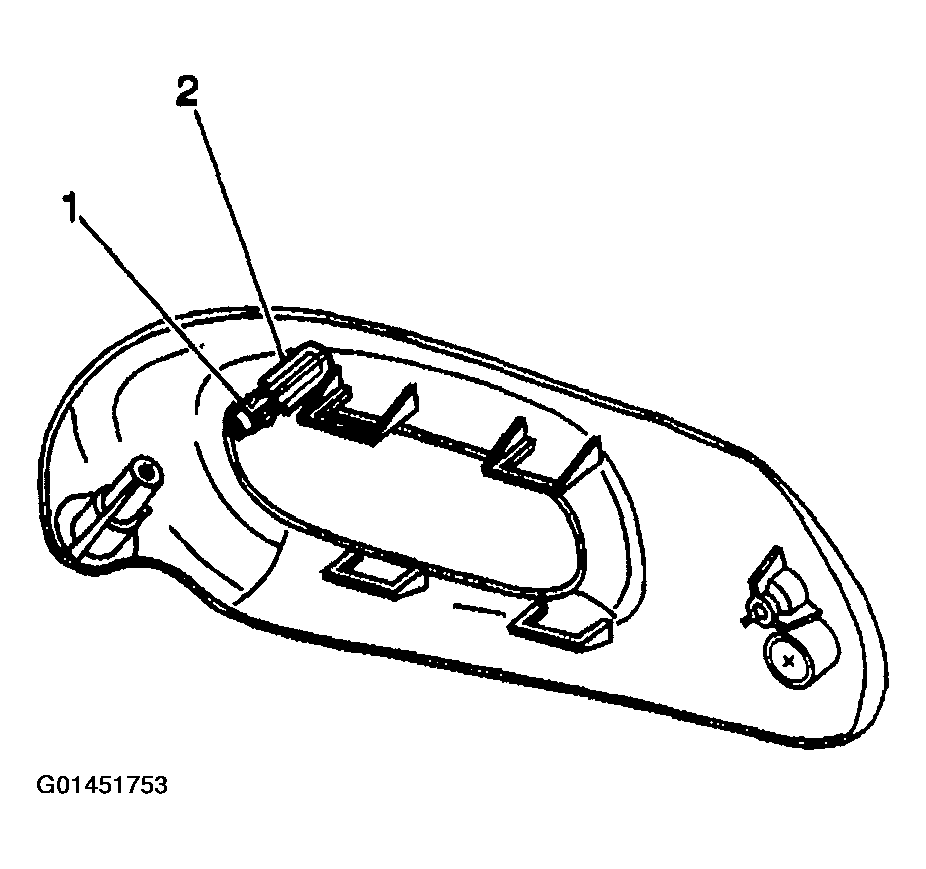

    Fig 3: Removing Barrel Post Clip From Seat Frame
    G01451753Courtesy of GENERAL MOTORS CORP.
  4. Disconnect the switch harness.
  5. Remove the trim panel.
  6. Transfer the switch if necessary.
    Fig 4: Trim Panel
    G01451754Courtesy of GENERAL MOTORS CORP.
