Removal Procedure

WARNING: This page is about a different car, the 2003 Chevrolet Corvette. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the seat. Refer to SEAT REPLACEMENT (POWER)  or SEAT REPLACEMENT (MANUAL) .
  2. Remove the seat belt buckle from the seat frame.

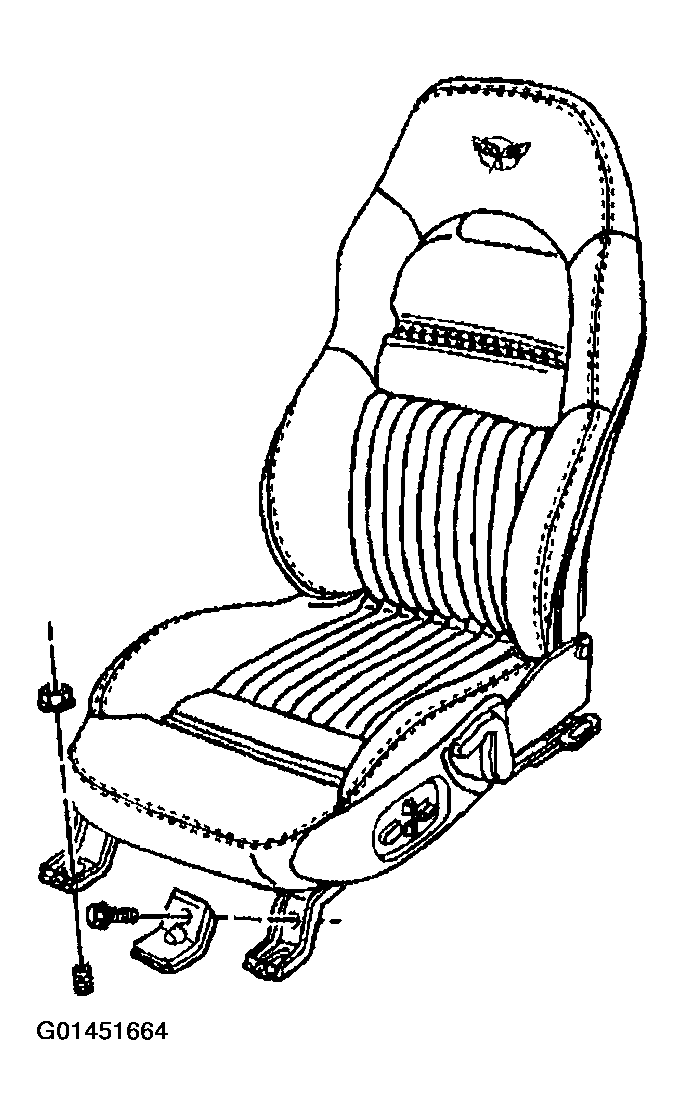

    Fig 1: Removing Seat Belt Buckle From Seat Frame
    G01451664Courtesy of GENERAL MOTORS CORP.
  3. Remove the recliner handle.
    1. With a suitable blunt ended tool inserted between the cushion and the handle push the handle retaining spring clip down.
    2. Pull the handle from the shaft.
      Fig 2: Recliner Handle
      G01451665Courtesy of GENERAL MOTORS CORP.
  4. Remove the side trim panel (power seat). Refer to TRIM PANEL REPLACEMENT - FRONT SEAT .
    Fig 3: Side Trim Panel (Power Seat)
    G01451666Courtesy of GENERAL MOTORS CORP.
  5. Remove the hog-rings from the rear flap.

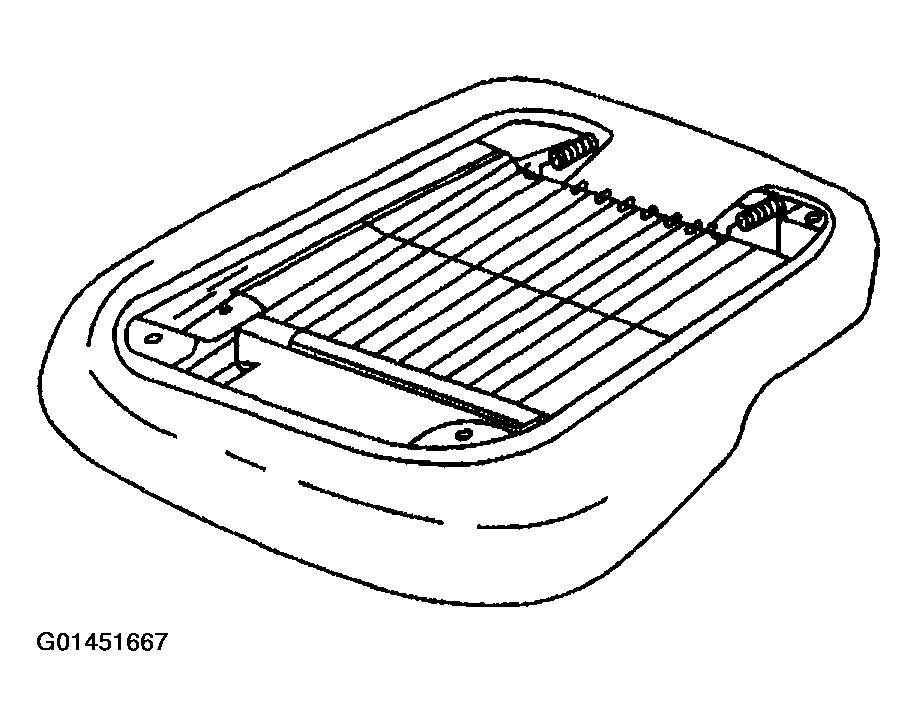

    Fig 4: Removing Hog-Rings From Rear Flap
    G01451667Courtesy of GENERAL MOTORS CORP.
  6. Raise the flap.
  7. Unfasten the draw string.
  8. Remove the hog-rings attaching the rear corners of the seat cushion trim cover.
  9. Remove the cover and foam pad.
  10. Remove the cover from the foam pad.

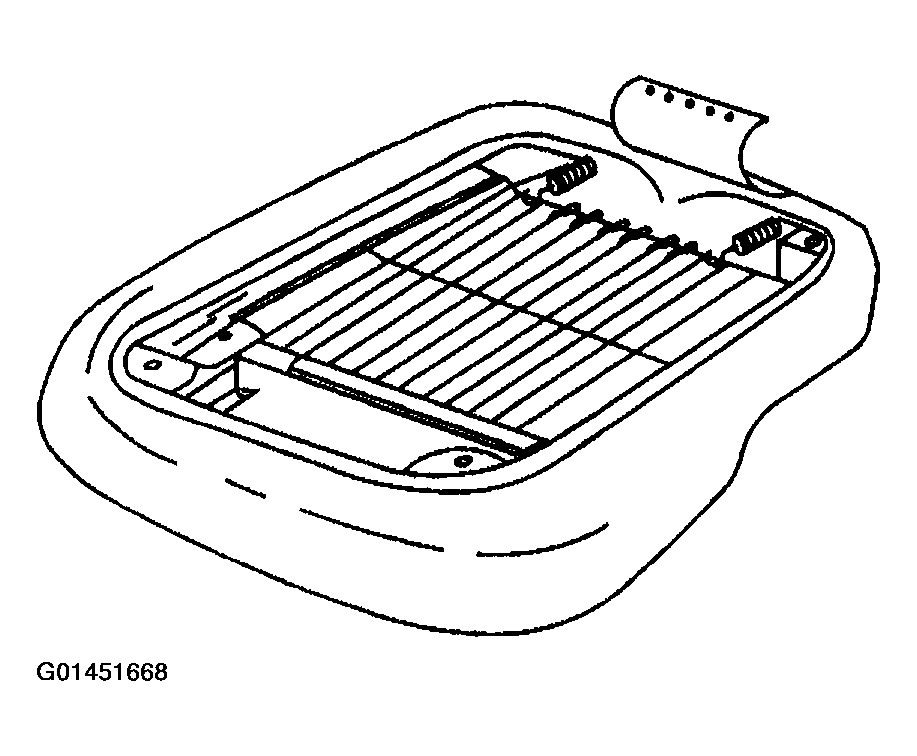

    Fig 5: Removing Hog-Rings Attaching Rear Corners Of Seat Cushion Trim Cover
    G01451668Courtesy of GENERAL MOTORS CORP.
