Removal Procedure

WARNING: This page is about a different car, the 2003 Chevrolet Corvette. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the seat. Refer to SEAT REPLACEMENT (POWER)  or SEAT REPLACEMENT (MANUAL) .

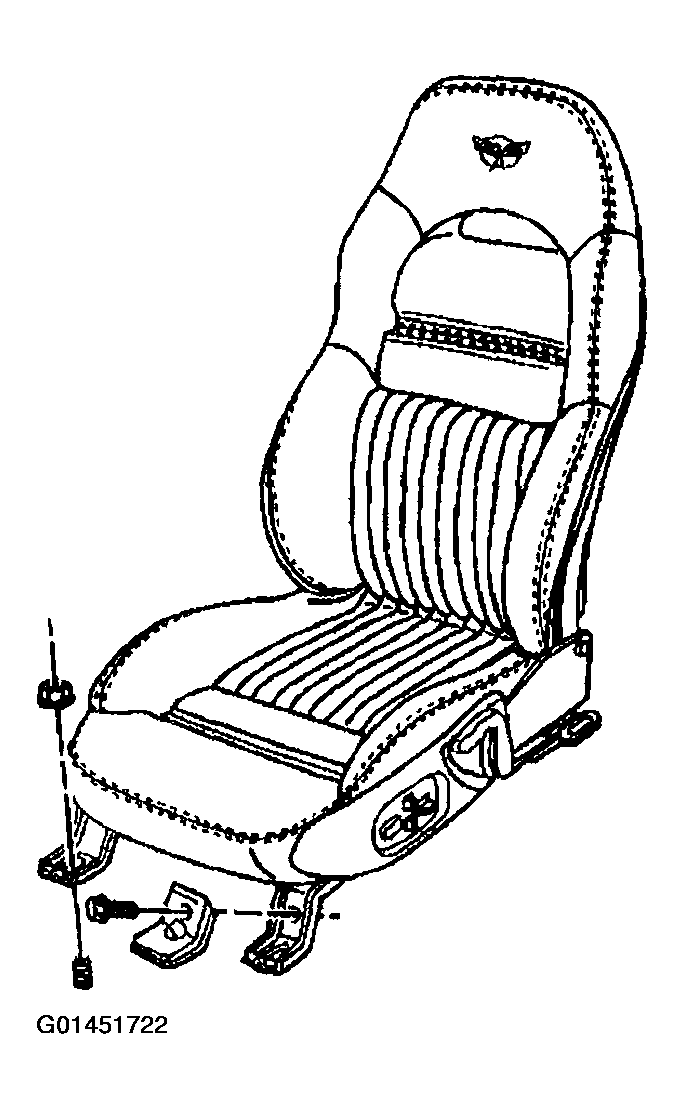

    Fig 1: Seat
    G01451722Courtesy of GENERAL MOTORS CORP.
  2. Remove the adjuster adjustment bar (non-power seat).
    Fig 2: Adjuster Adjustment Bar (Non-Power Seat)
    G01451723Courtesy of GENERAL MOTORS CORP.
  3. Remove the seat cushion cover. Refer to SEAT CUSHION TRIM COVER AND PAD REPLACEMENT .
  4. Remove the seat cushion foam.

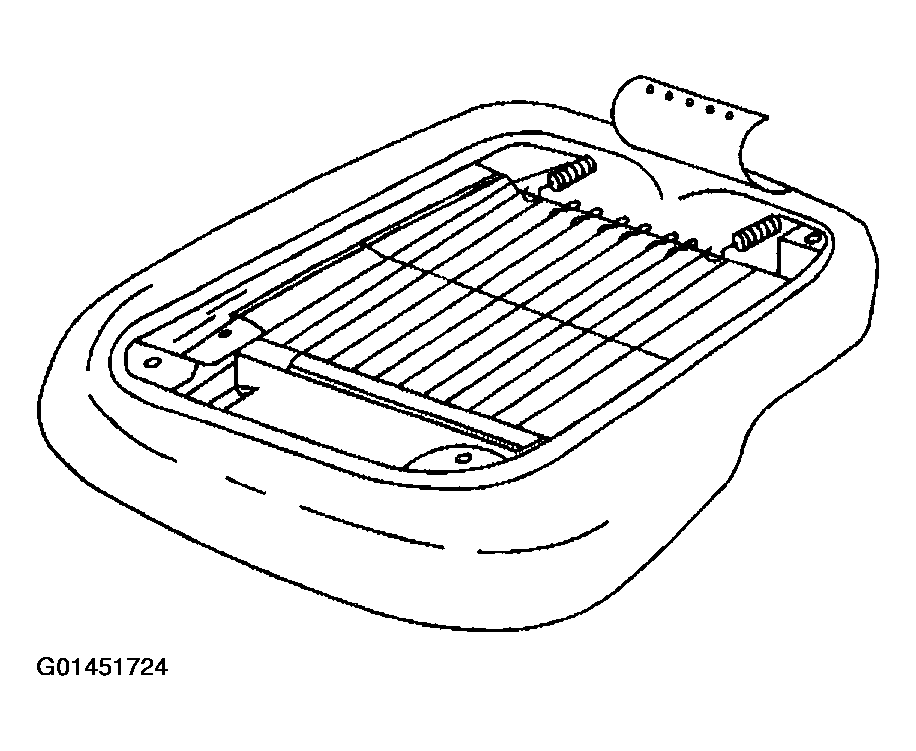

    Fig 3: Seat Cushion Foam
    G01451724Courtesy of GENERAL MOTORS CORP.
  5. Reposition the lumbar pump, if equipped.

    Remove the tie straps and reposition the pump and pouch up through the seat support wires.

  6. Remove the seat belt harness from the seat frame (left seat).
  7. Remove the memory seat control module, if equipped.

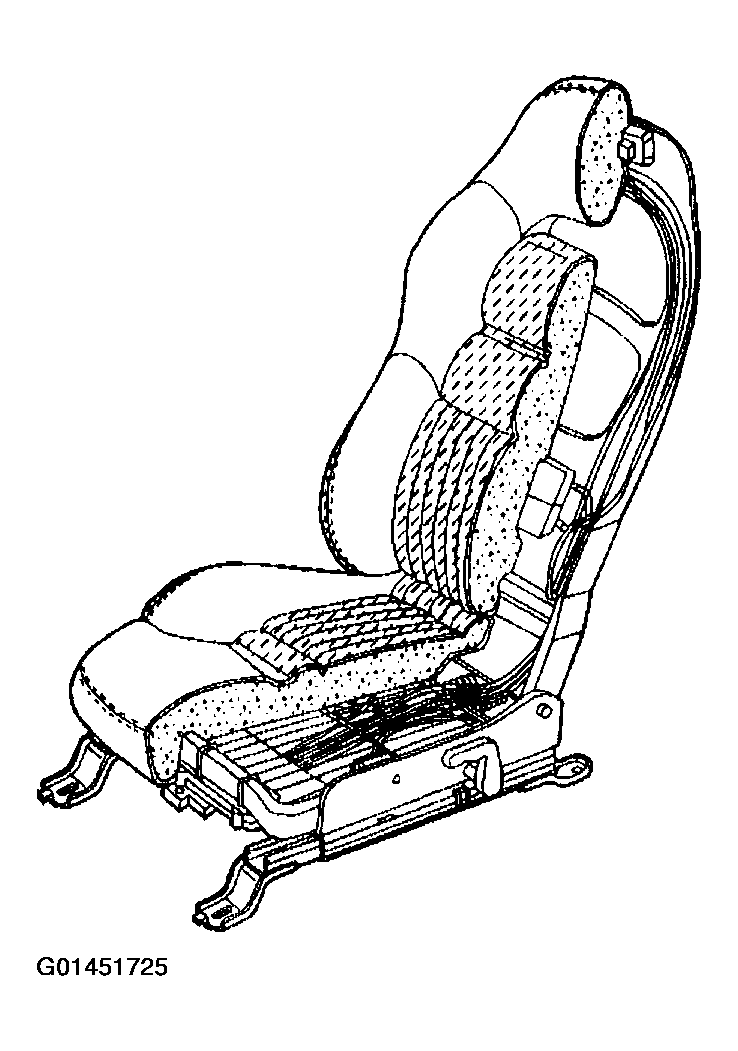

    Fig 4: Removing Seat Belt Harness From Seat Frame (Left Seat)
    G01451725Courtesy of GENERAL MOTORS CORP.
  8. Remove the buckle side of the seat belt.

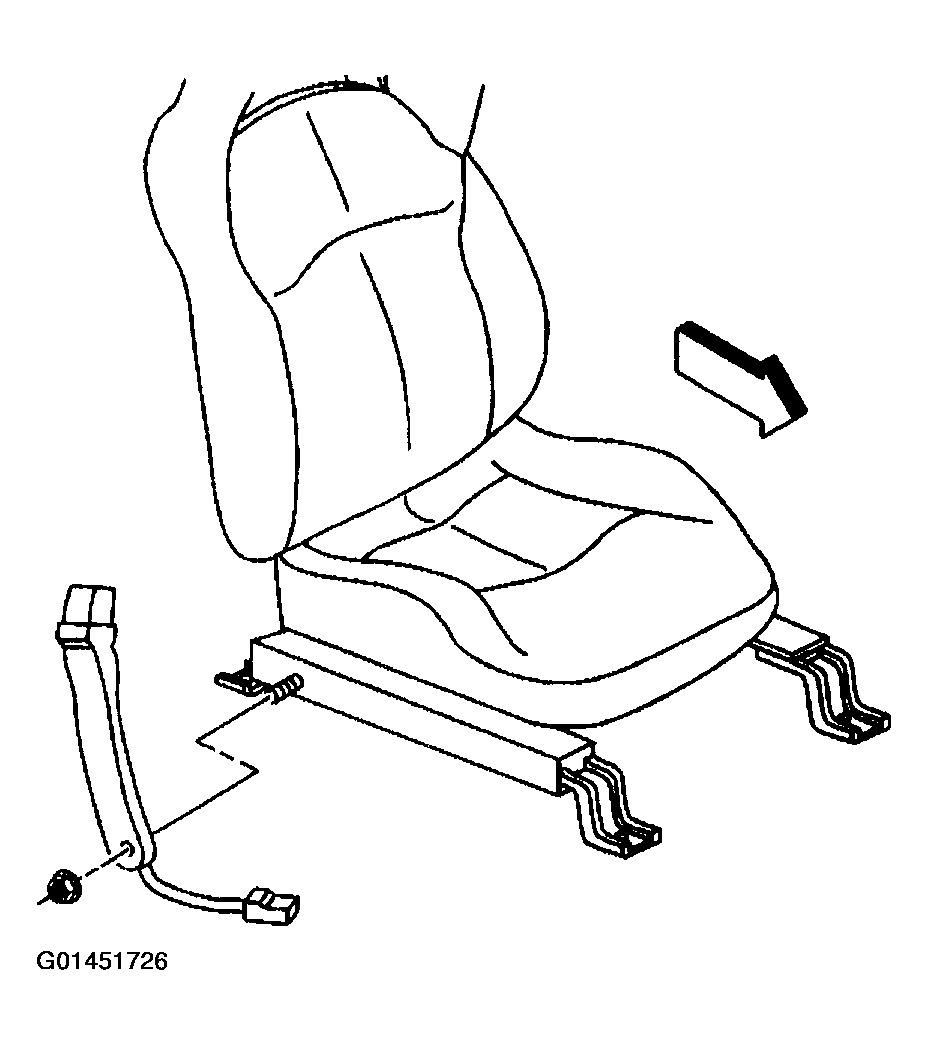

    Fig 5: Buckle Side Of Seat Belt
    G01451726Courtesy of GENERAL MOTORS CORP.
  9. Remove the bolts (design 1) or the nuts (design 2) mounting the seat to the adjuster.
  10. Remove the adjuster.
  11. Transfer parts as necessary.

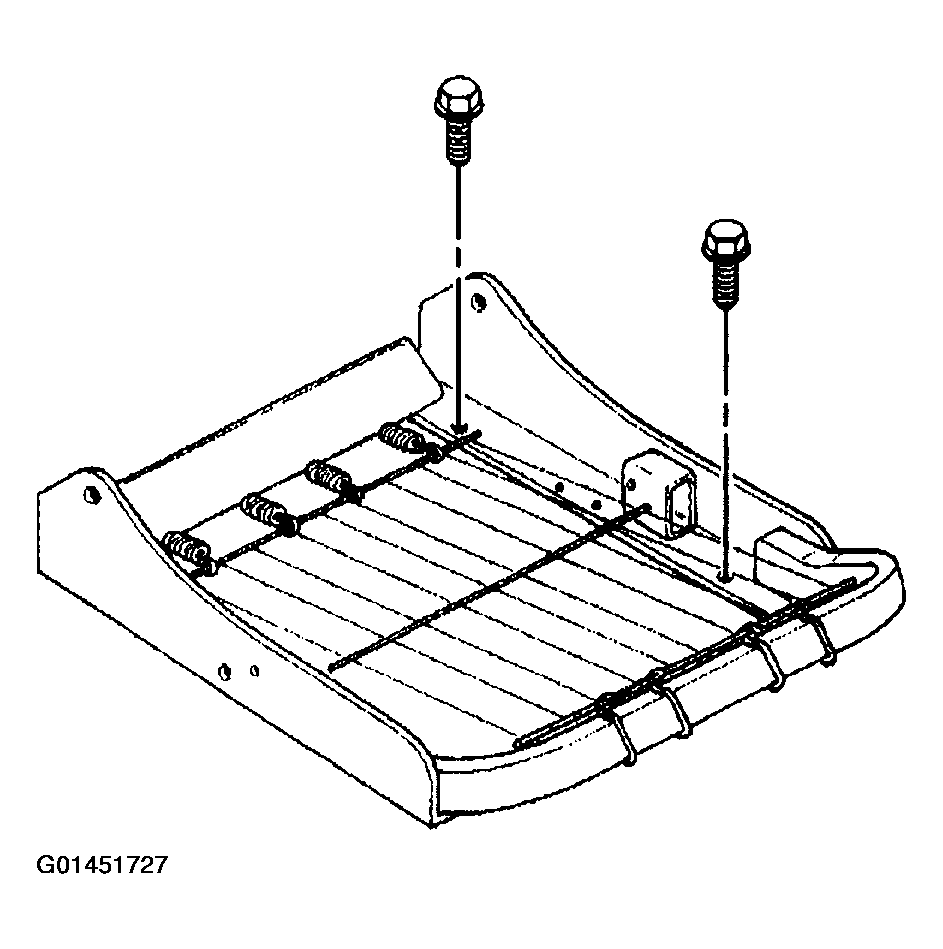

    Fig 6: Adjuster
    G01451727Courtesy of GENERAL MOTORS CORP.
