Installation Procedure

WARNING: This page is about a different car, the 2003 Chevrolet Corvette. However, it is still accessible from the selected car via links, so may be relevant.
  1. Position the motors and harness to the seat frame.
  2. Install the cables to the two rear motors and to the adjuster.
  3. Install the screws mounting the rear motors.
  4. Install the front motor (forward and back motor) to the bracket.
  5. Connect the harness electrical connector.
  6. Position the bracket onto one adjuster transmission.
  7. Insert the drive cable into the motor and then into the transmission. It may be necessary to turn the cable to get the cable to slide into the transmission.
  8. Repeat steps 6 and 7 on the opposite side.
  9. Bend the bracket ends outward enough to prevent the bracket from sliding off the transmissions.

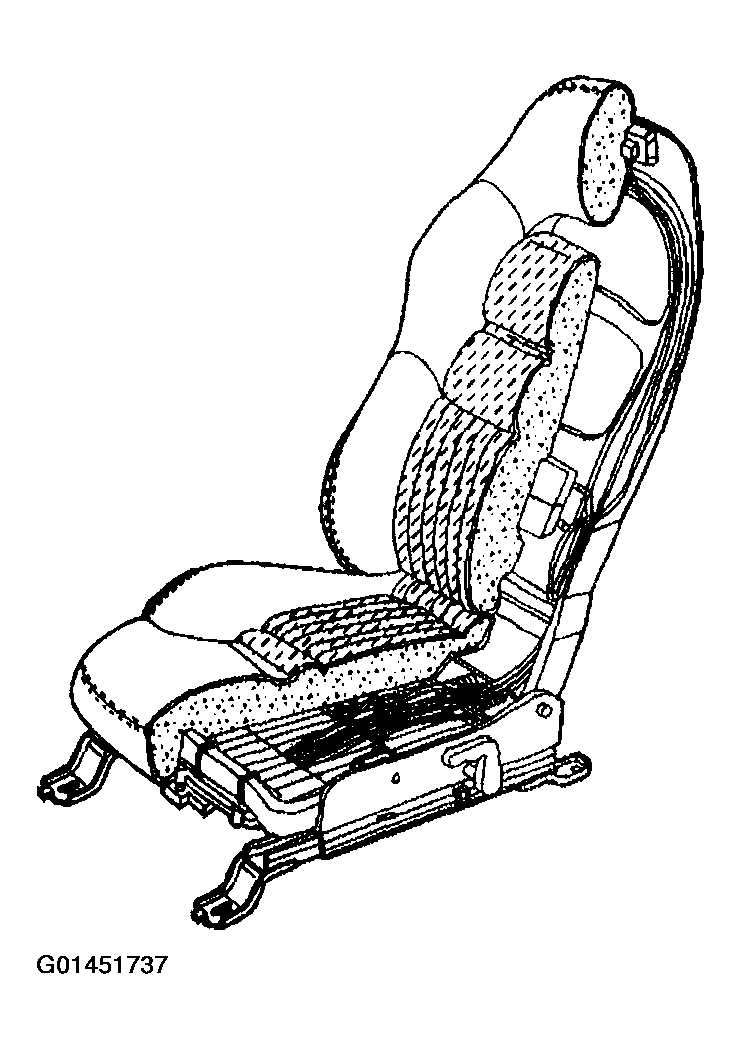

    Fig 1: Positioning Motors & Harness To Seat Frame
    G01451737Courtesy of GENERAL MOTORS CORP.
  10. Tie strap the lumbar pump to the torque tube, if equipped.
  11. Install the seat. Refer to SEAT REPLACEMENT (POWER)  or SEAT REPLACEMENT (MANUAL) .

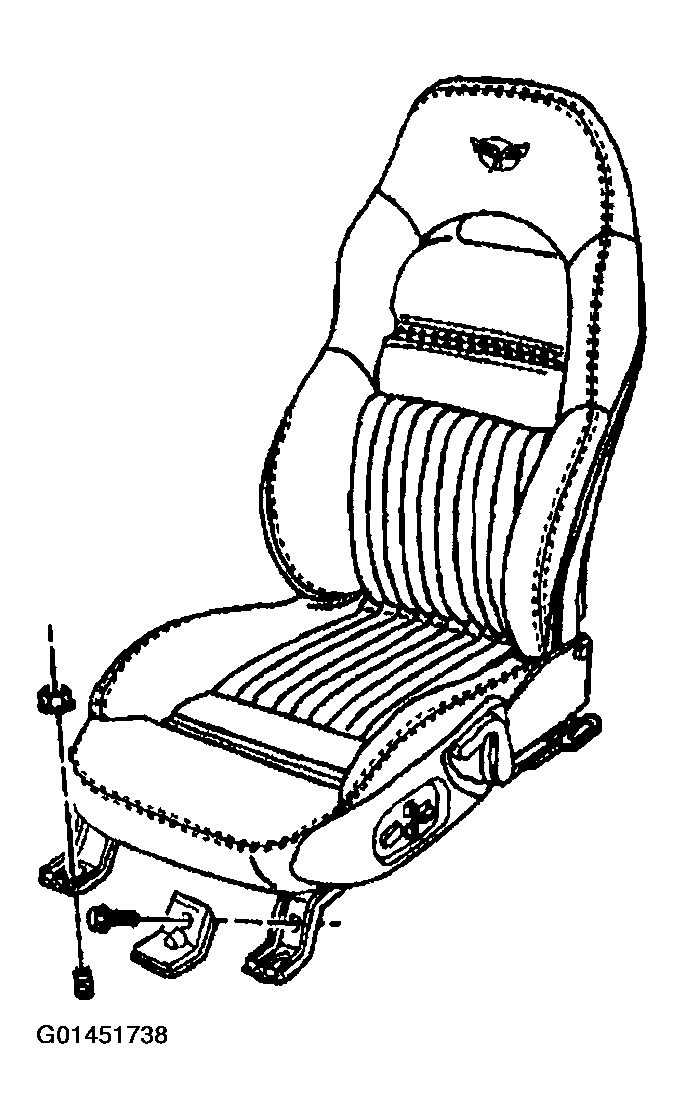

    Fig 2: Seat
    G01451738Courtesy of GENERAL MOTORS CORP.
