Diagnostic Aids

WARNING: This page is about a different car, the 2003 Chevrolet Corvette. However, it is still accessible from the selected car via links, so may be relevant.

If the switch status on the scan tool goes from active when connected to inactive when disconnected, the switch contacts may be stuck.
If the fault is not current the problem may be intermittent. Refer to TESTING FOR INTERMITTENT AND POOR CONNECTIONS in Wiring Systems.

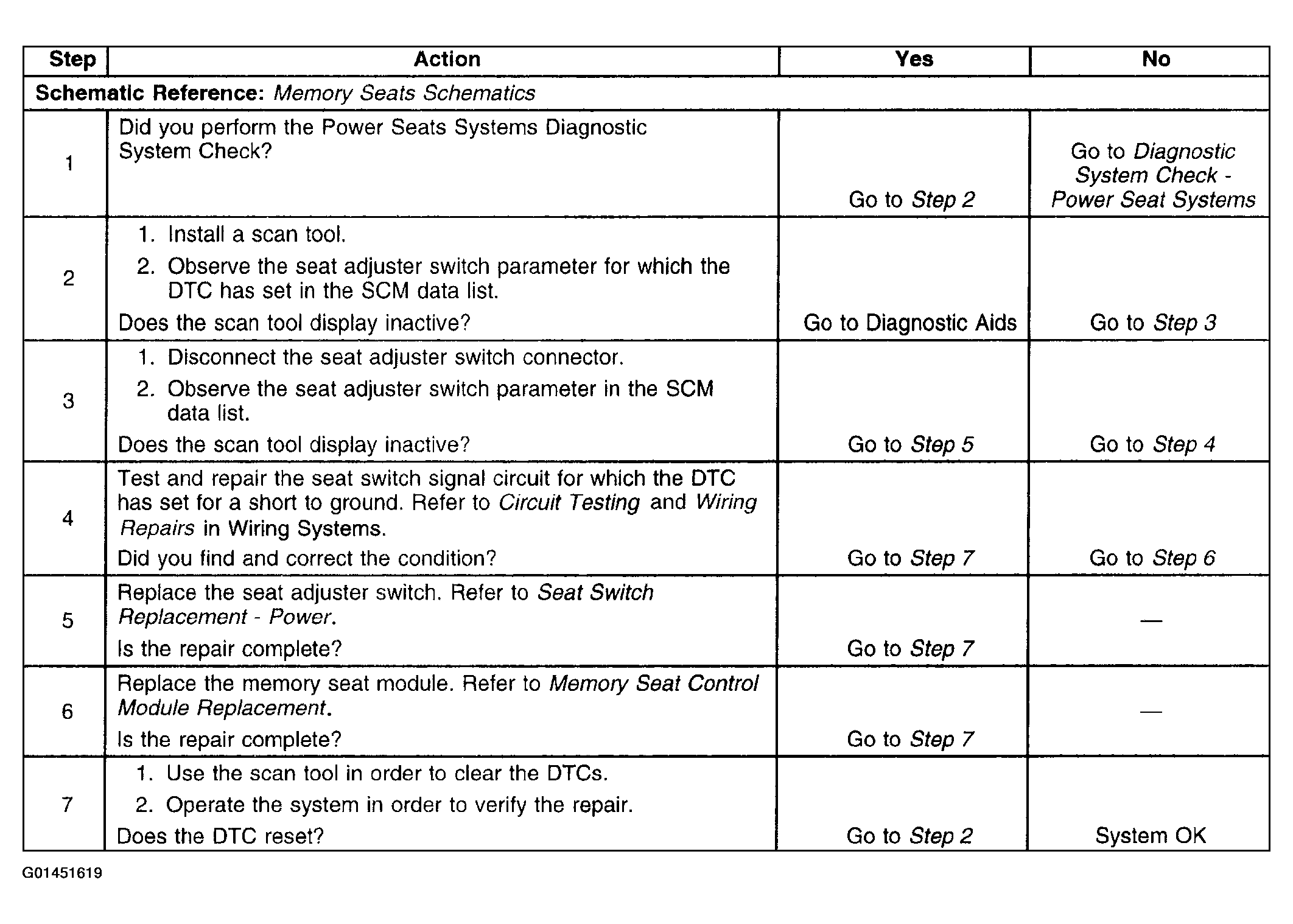

Fig 1: DTC B2172, B2177, B2182, B2187, B2192, Or B2197
Courtesy of GENERAL MOTORS CORP.
