Removal Procedure

WARNING: This page is about a different car, the 2003 Chevrolet Corvette. However, it is still accessible from the selected car via links, so may be relevant.

Position the #1 bow and the #5 bow up.
Open the folding top stowage compartment lid.
Remove the retainer from the lock pillar end of the seal.
Pull the molded end of the seal from the lock pillar.

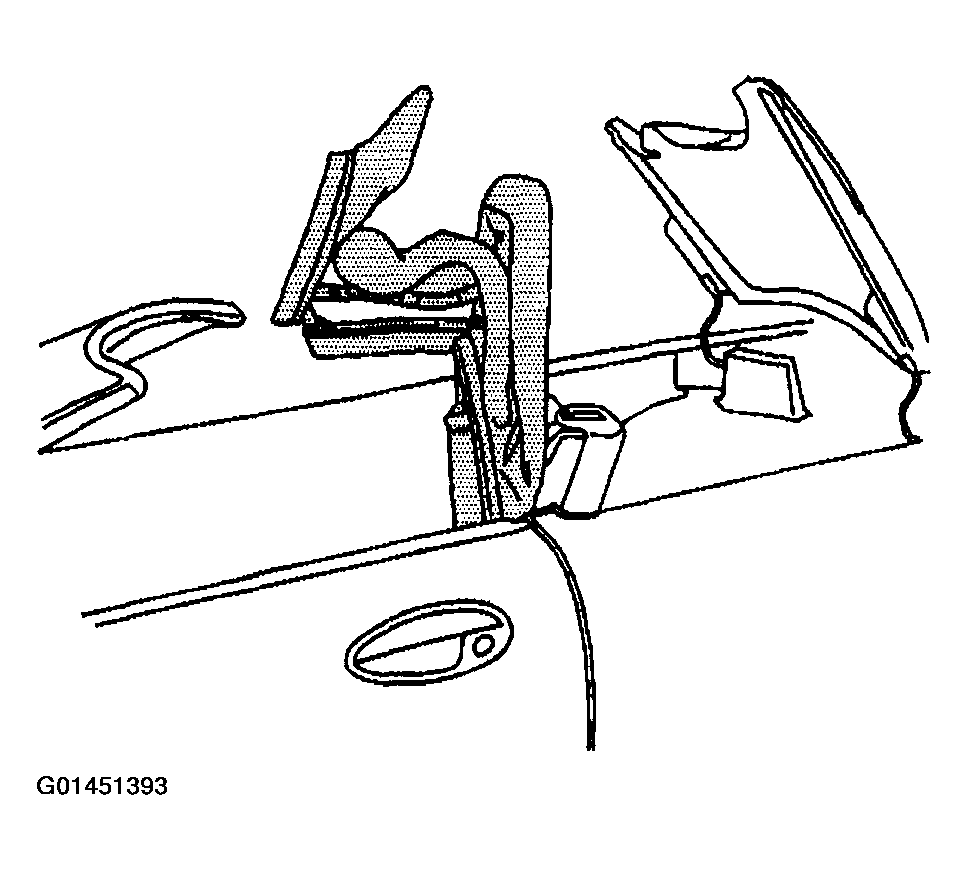

Fig 1: Positioning #1 Bow & #5 Bow Up
Courtesy of GENERAL MOTORS CORP.
Pull the weatherstrip from the stowage compartment flange.

Fig 2: Pulling Weatherstrip From Stowage Compartment Flange
Courtesy of GENERAL MOTORS CORP.
